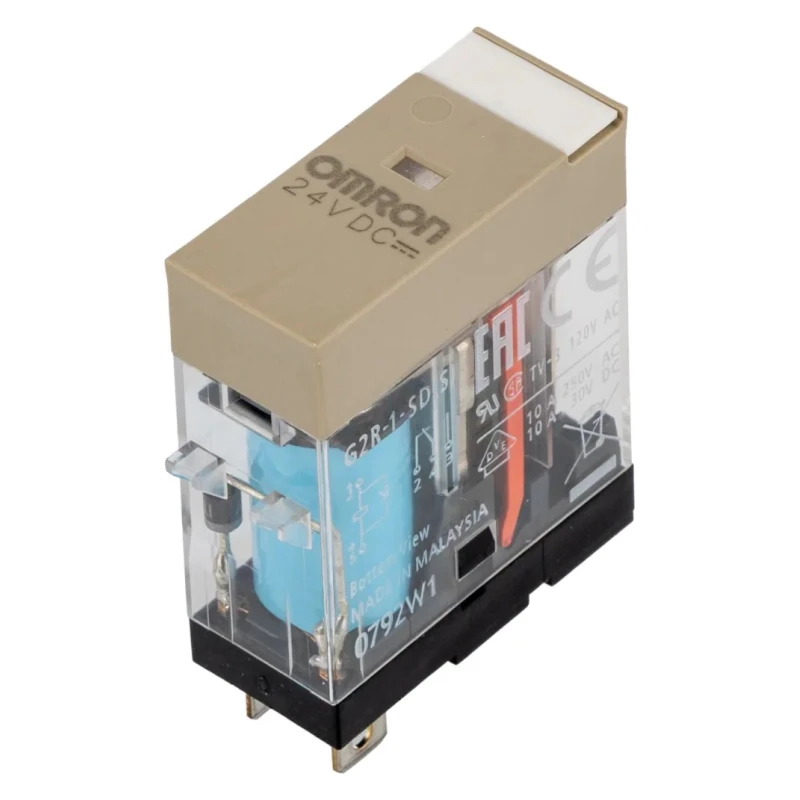

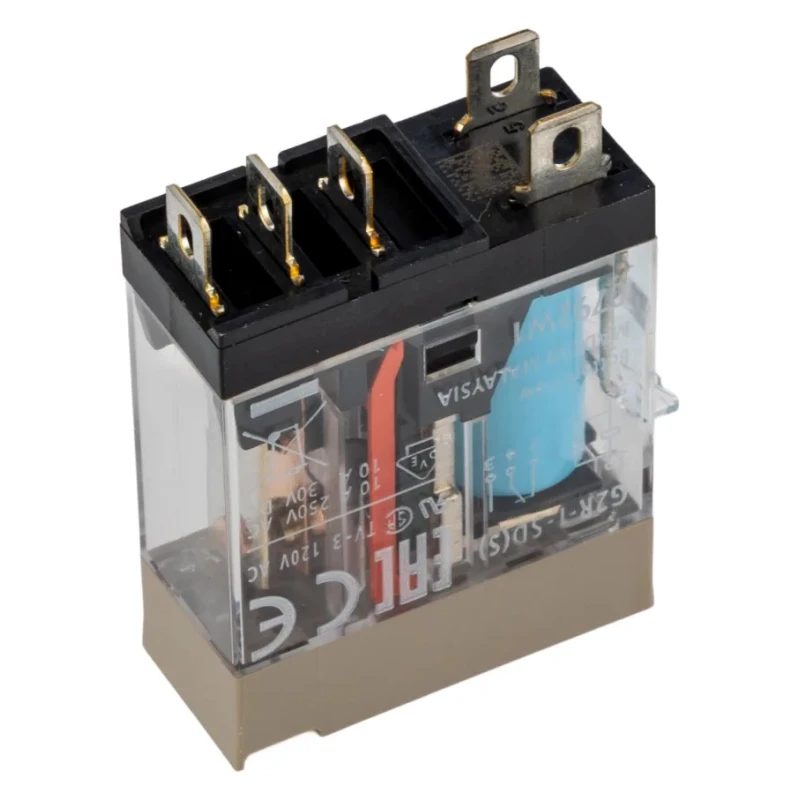

Omron Power Relay 24V DC Coil 10A Switching Current SPDT Plug-In Terminal G2R-1-SD 24VDC (S)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 35.5mm |
| Length | 29mm |
| Model | G2R-1-SD 24VDC (S) |
| Width | 13mm |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 30mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 530mW |
| Switching Power | 0.9W |
Key Features
- Compact plug-in terminal design for easy installation.
- Operates with a coil voltage of 24 V DC and coil power consumption of 0.53 W.
- Silver alloy contacts provide high durability and low contact resistance of 30 mΩ.
- Wide operating temperature range from -40°C to +70°C for harsh environments.
- Maximum switching voltages of 440 V AC and 125 V DC support versatile applications.
- Supports switching current up to 10 A suitable for general-purpose relays.
- Certified with CSA and UL standards ensuring quality and safety compliance.
- Built-in mechanical operation indicator for easy status monitoring.
Product Description
Omron G2R-1-SD 24VDC (S) power relay is engineered for reliable general-purpose switching in industrial automation and electrical control systems. It features a 24 V DC coil voltage with a low coil power consumption of 0.53 W, ensuring energy-efficient operation.
This relay uses silver alloy contacts with a switching current capacity of 10 A and contact resistance of 30 mΩ, designed to handle both AC and DC loads effectively. It supports switching voltages up to 440 V AC and 125 V DC, making it versatile for a wide range of electrical applications.
The compact plug-in terminal form factor simplifies installation and maintenance processes. The relay is built to operate reliably in extreme temperature conditions from -40°C to +70°C, suitable for harsh industrial environments.
It includes a built-in mechanical operation indicator for easy visual monitoring of the relay status. The contact material AgSnIn enhances durability and performance longevity. Certifications from CSA and UL affirm its compliance with international safety and quality standards.
Typical industrial uses include automation control panels, general heating and cooling systems, lighting controls, as well as security and alarm systems where dependable relay performance is critical.
Compact plug-in terminal design for quick and reliable installation. 24 V DC coil voltage with only 0.53 W coil power consumption. Silver alloy contacts rated for 10 A switching current and low resistance. Wide temperature tolerance ranging from -40°C to 70°C for durability in rigorous conditions.
Supports high switching voltages: 440 V AC and 125 V DC. Includes mechanical operation indicator for operational status awareness. Certified by CSA and UL ensuring safety and regulatory compliance. Uses robust AgSnIn contact material for enhanced endurance.
Suited for automation, heating, lighting, and security system applications. Explore more Power Relays and electrical components at EnvMart for industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24 V DC.
It supports a maximum switching current of 10 A.
The maximum switching voltages are 440 V AC and 125 V DC.
The contact configuration of this relay is SPDT (Single Pole Double Throw).
The relay uses silver alloy as the contact material.
It operates within a temperature range of -40°C to +70°C.
The coil power consumption is 0.53 W (530 mW).
The contact resistance is 30 mΩ.
The dimensions are 35.5 mm in height, 29 mm in length, and 13 mm in width.
Yes, it is certified with CSA and UL standards.
It features a plug-in terminal design for easy installation.
This relay is suitable for automation control panels, heating and cooling systems, lighting controls, and security systems.
