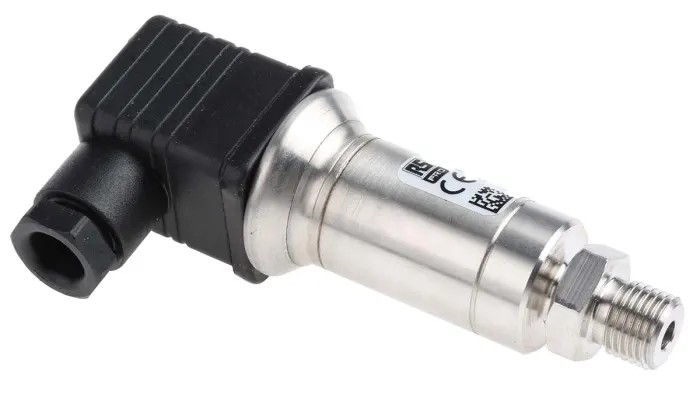

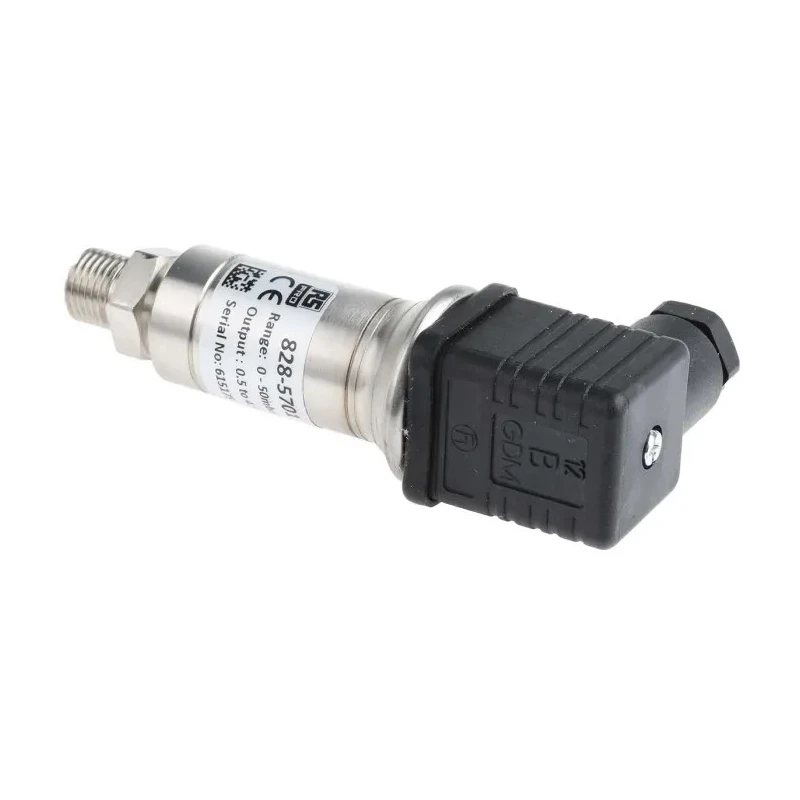

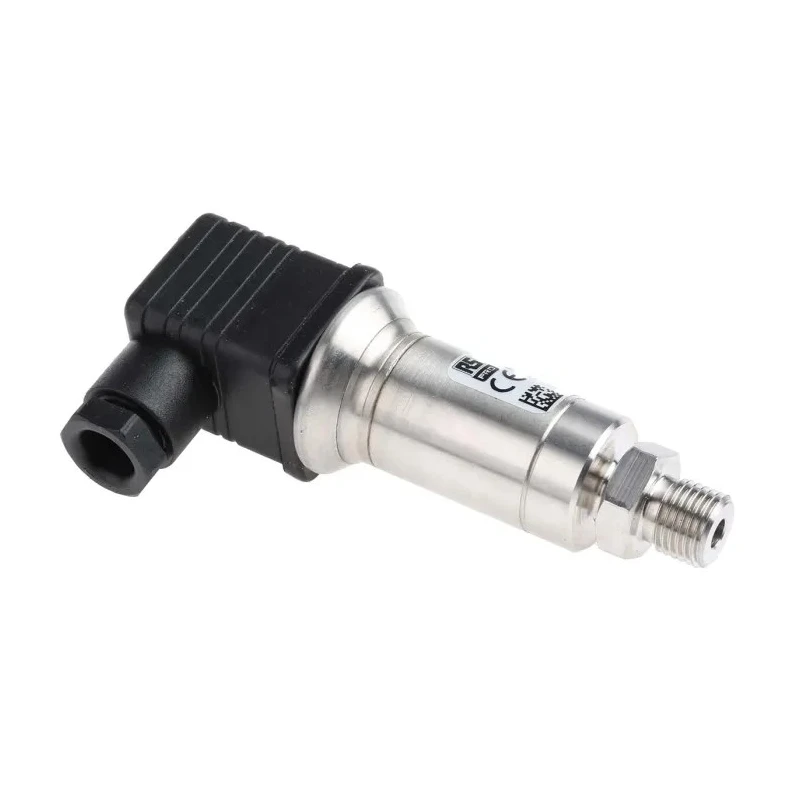

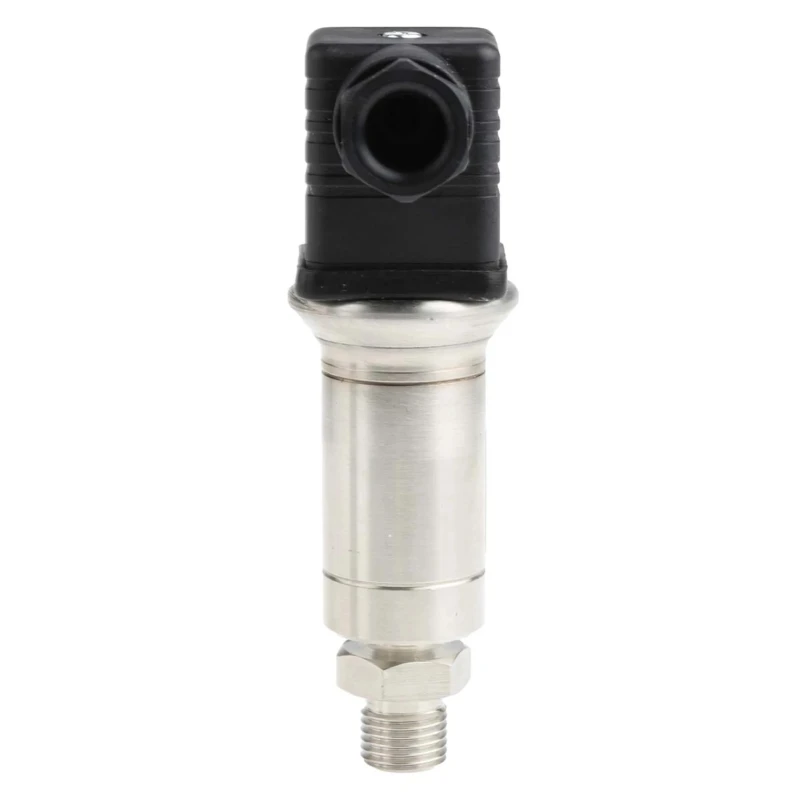

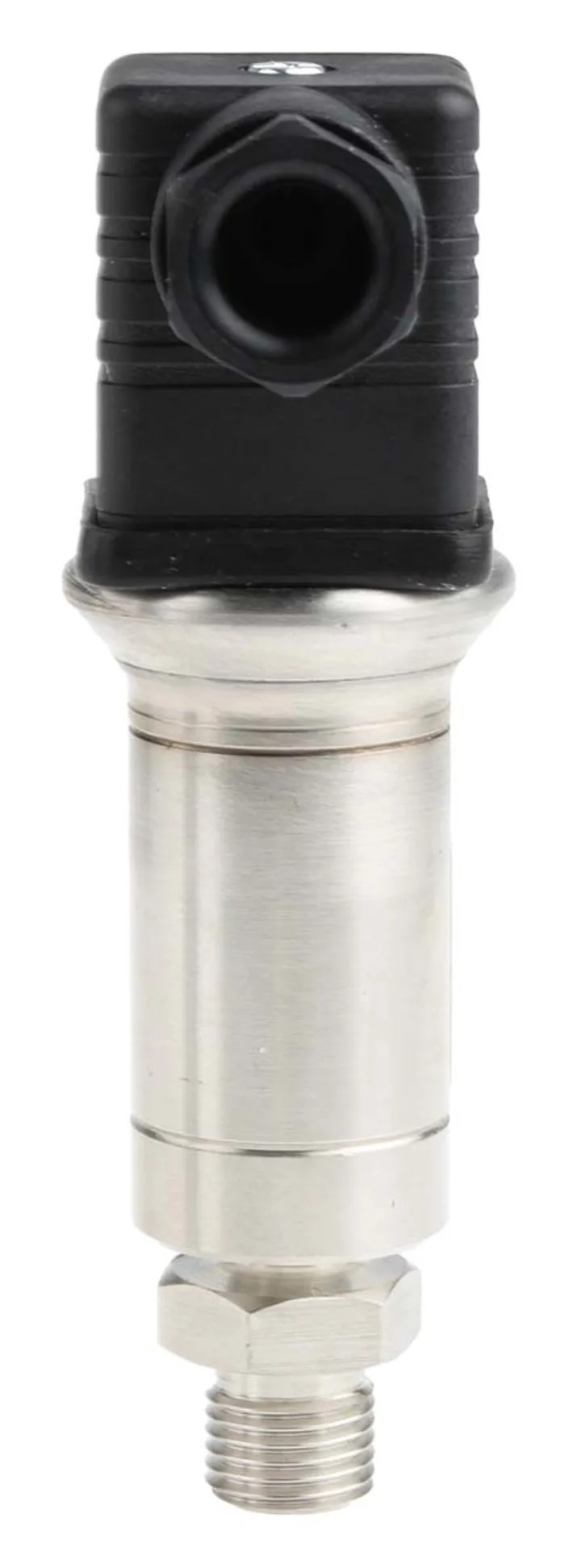

RS PRO Pressure Sensor Voltage Output 0 bar 1000 mbar Gauge Reading 828-5701

RS PRO 828-5701 Pressure Sensor is a robust and precise industrial pressure measurement device designed for a range of applications including mechanical engineering, automotive testing, environmental engineering, pneumatics, agricultural machinery, and laboratory testing. Featuring a compact and rugged stainless steel 303 housing, this sensor ensures excellent durability and corrosion resistance.

This sensor utilizes a piezo-resistive thick film ceramic sensor element, providing reliable voltage output corresponding to pressure changes within the range of 0 bar to 1000 mbar gauge reading. The device incorporates a microprocessor-based amplifier that is temperature compensated and calibrated, ensuring high stability and precision with an accuracy of ±0.25%.

The threaded mount type allows flexible installation positions, and the device is rated IP65 to protect against dust ingress and water jets, suitable for challenging industrial environments. It supports a wide supply voltage range of 9V to 32V DC and complies with CE EMC directive EN 61326-1:2013 standards.

Constructed with components such as Viton O-ring seals and 316L stainless steel diaphragm, the sensor is compatible with media like oil, making it versatile for various industrial fluids. The sensor's design supports an operational life exceeding 100 million cycles, backed by insulation resistance greater than 50 mega ohms at 50 V DC for electrical safety.

The sensor uses a piezo-resistive thick film ceramic element for precise pressure measurement. Provides voltage output signal, compatible with various industrial control systems. Equipped with a stainless steel 303 housing ensuring durability and corrosion resistance.

Features DIN interface and terminal for secure and standard electrical connections. Operates reliably in temperatures from -20°C up to 125°C and is IP65 rated for protection against dust and water jets. Mount type is threaded for straightforward installation and flexibility in positioning.

Media compatibility includes oil and similar substances with wetted parts made from stainless steel and Viton seals. High accuracy of ±0.25% ensures dependable performance in mechanical and environmental engineering tasks.

Output voltage supply range maintains from 9V to 32V DC for flexible power applications. Certified under CE EMC directive EN 61326-1:2013 for electromagnetic compatibility.

This RS PRO pressure sensor series is ideal for demanding industrial applications requiring reliable pressure monitoring and control. It allows engineers and technicians to integrate a high-precision sensor with stable voltage output in various automation and control tasks.
