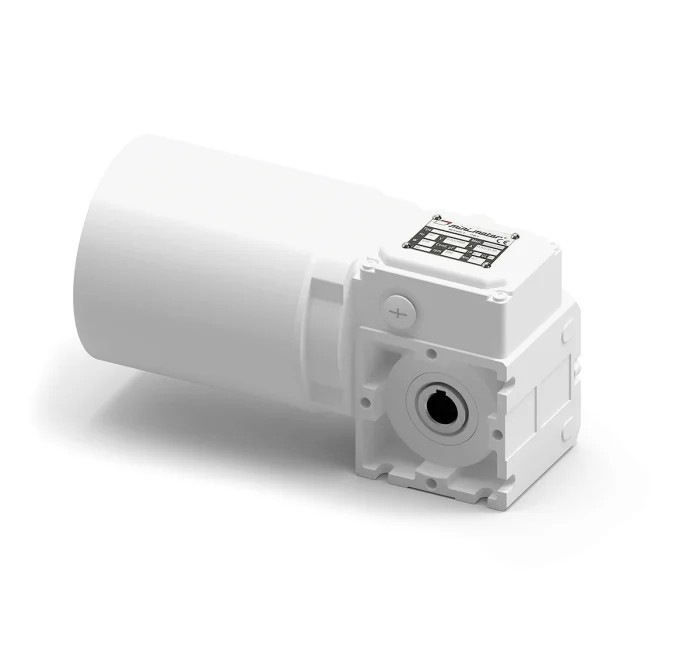

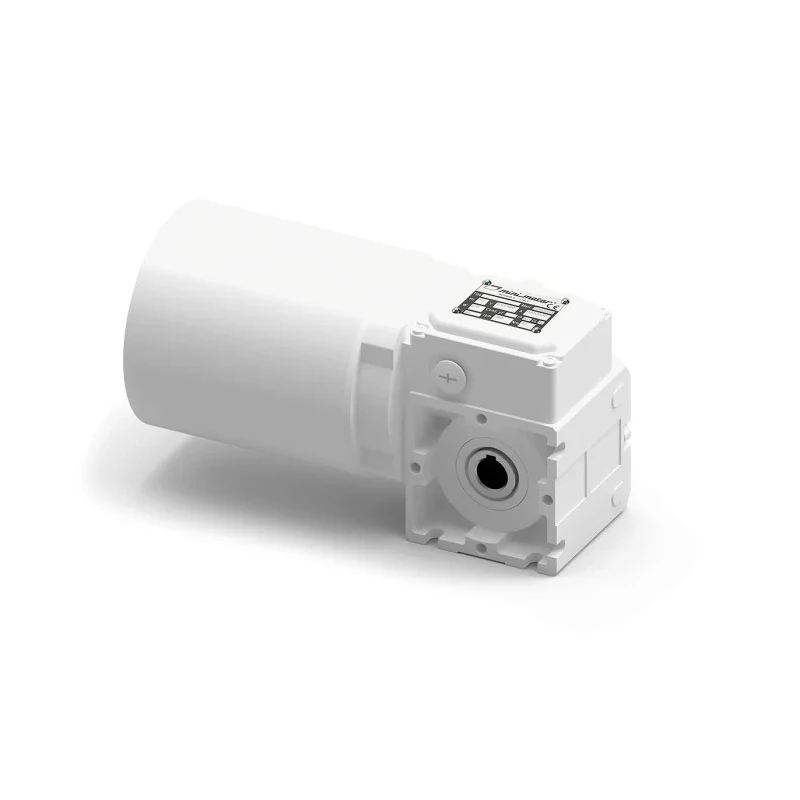

Mini Motor AC Worm Geared Motor 290W 2-Pole 400V Worm Gearhead Steel Aluminium XCF5T2-50-B5
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Mini Motor |
| Material | Steel, Aluminium |
| Length | 291mm |
| Model | XCF5T2-50-B5 |
| Depth | 151mm |
| Width | 96mm |
| Current Rating | 1.56A |
| Series | XCF |
| Power Rating | 290W |
| Sub Type | Geared |
| Output Speed | 56rpm |
| Supply Voltage | 400V |
| Bearing Type | Ball, Roller |
| Number of Poles | 2 |
| Gear ratio | 50:1 |
| Standards/Approvals | IEC/EN 60529, RoHS |
| Maximum Output Torque | 31.4Nm |
| Gearhead Type | Worm |
| 50 | 1 |
| Gear Ratio50 | 1 |
Key Features
- Compact design with dimensions 291mm length, 151mm depth, and 96mm width.
- IP67 rated protection ensures suitability for harsh environments.
- Constructed with steel and aluminium for durability and corrosion resistance.
- Ball and roller bearings support efficient and long-lasting operation.
- Output speed is 56 rpm with a maximum output torque of 31.4 Nm.
- White epoxy coating provides additional protection and minimal dirt trap points.
- Complies with IEC/EN 60529 and RoHS standards for safety and environmental compliance.
- Originates from Italy with high-quality manufacturing standards.
Product Description
Mini Motor XCF5T2-50-B5 is a robust AC worm geared motor, delivering 290 watts of power at 400 volts with a 2-pole asynchronous three-phase motor design. This geared motor features a worm gearhead with a 50:1 gear ratio providing substantial torque multiplication, making it suitable for various industrial applications.
The motor and gear unit are engineered to withstand challenging working conditions and harsh environments. The motor has an IP67 protection rating in compliance with IEC/EN 60529 standards, ensuring it is dust-tight and water resistant.
The die-cast aluminium gear unit casing is coupled with a wheel rim made of special bronze with a hardness of 120/160 HB, and the worm gear is fabricated from hardened steel running on ball and roller bearings. The output shaft is constructed from stainless steel, lubricated with special long-lasting oil, and sealed with high-temperature designed sealing rings for optimal durability and minimal maintenance.
The overall dimensions of the motor are 291mm in length, 151mm in depth, and 96mm in width, presenting a compact footprint. It produces an output speed of 56 rpm and a maximum output torque of 31.4 Nm, suitable for precise applications requiring controlled speed and high torque.
This motor is coated in white epoxy resin offering protection against corrosion and reducing dirt accumulation, with no external fan to minimize contamination points, ideal for clean industrial environments.
290W power rated asynchronous three-phase motor with 2 poles. Gearhead type: Worm with a 50:1 gear ratio. IP67 protection rating ensuring complete dust and water resistance. Durable materials including steel, aluminium, special bronze, and stainless steel components.
Ball and roller bearing system for effective load handling and longevity. Compact size suitable for installation in tight spaces. Compliance with IEC/EN 60529 and RoHS standards. Designed for industrial and automation applications requiring reliability and robustness.
With its high-quality Italian manufacturing and specialized design features, the Mini Motor XCF5T2-50-B5 geared motor is well suited for automation, electrical, and control gear applications across industrial sectors where performance and durability are critical.
Explore more industrial motors and geared motor solutions at EnvMart for enhanced operational efficiency and reliability.
Explore more products in our Geared Motors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 290 watts.
It produces an output speed of 56 rpm.
The maximum output torque is 31.4 Nm.
It features a gear ratio of 50:1.
This geared motor uses ball and roller bearings for efficient operation.
The dimensions are 291mm in length, 151mm in depth, and 96mm in width.
It operates at a supply voltage of 400V.
The motor is constructed from steel and aluminium, providing durability and corrosion resistance.
It complies with IEC/EN 60529 and RoHS standards for safety and environmental compliance.
Yes, it has an IP67 protection rating, making it dust-tight and water-resistant, suitable for harsh environments.
It uses a worm gearhead, which provides substantial torque multiplication.
This motor originates from Italy, adhering to high-quality manufacturing standards.
