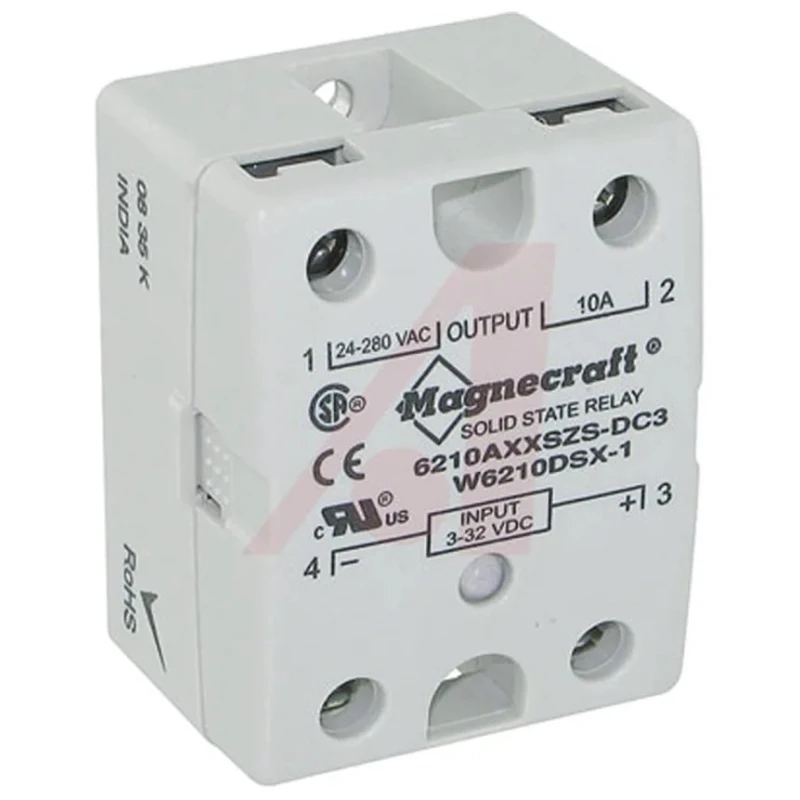

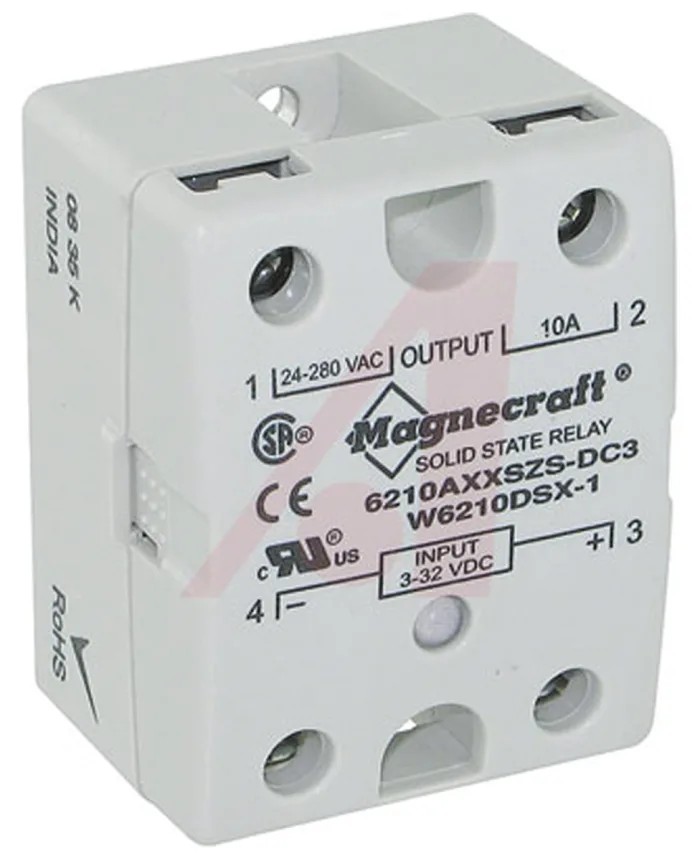

Schneider Electric Solid State Relay 10 A Load Panel Mount 280 V AC Load 32 V DC Control 6210AXXSZS-DC3

Schneider Electric 6210AXXSZS-DC3 Solid State Relay is engineered for reliable fast switching of electrical currents in industrial and automation applications. This solid state relay is designed for panel mounting, providing a secure and neat installation within control cabinets and electrical panels. It supports a maximum load current of 10 A with a broad AC output voltage range from 24 to 280 V, making it highly versatile for various electrical circuits.

The device includes screw clamp terminals on both input and output sides for robust and secure electrical connections. It has a fast response time of 8.3 milliseconds, enabling rapid switching to improve system performance. An LED indicator is incorporated for straightforward monitoring of the relay’s operating status, aiding in quick troubleshooting and maintenance.

Designed to operate reliably within a wide temperature range from -40°C up to +80°C, this relay is suitable for demanding industrial environments such as aviation, medical technology, and robotics where robustness is critical. The IP20 finger-safe rating offers protection against accidental contact with live parts, enhancing user safety.

The MOSFET output type and SPST contact configuration deliver efficient electrical switching with minimal off-state leakage current of 10 mA, ensuring energy-efficient operation and reducing heat generation.

This Solid State Relay complies with RoHS and REACH environmental standards, affirming its commitment to sustainable and safe electrical components. Features screw clamp terminals for secure electrical connections. Fast turn-on and turn-off response time of 8.3 milliseconds.

LED indicator for easy operational status monitoring. Wide operating temperature range from -40°C to +80°C suitable for demanding environments. Compact dimensions of 57.2mm length, 26.2mm width, and 35.9mm height. Finger-safe IP20 rating provides protection against electric shocks.

Output type is MOSFET with a single-pole single-throw (SPST) contact configuration. Supports DC switching function with a maximum control voltage of 32 V DC. Off-state leakage current is low at 10 mA, ensuring efficient operation.

Compliant with RoHS and REACH standards, meeting environmental regulations.

Ideal for industrial automation, control panels, electrical circuits requiring reliable and rapid switching, aerospace applications, medical device systems, and robotics control mechanisms. Explore the comprehensive range of Schneider Electric products at EnvMart for trusted electrical components and automation solutions.
