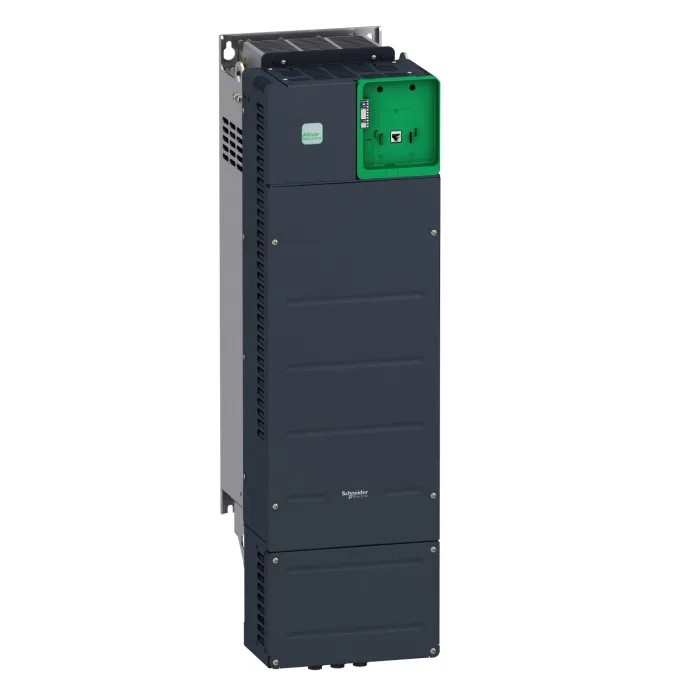

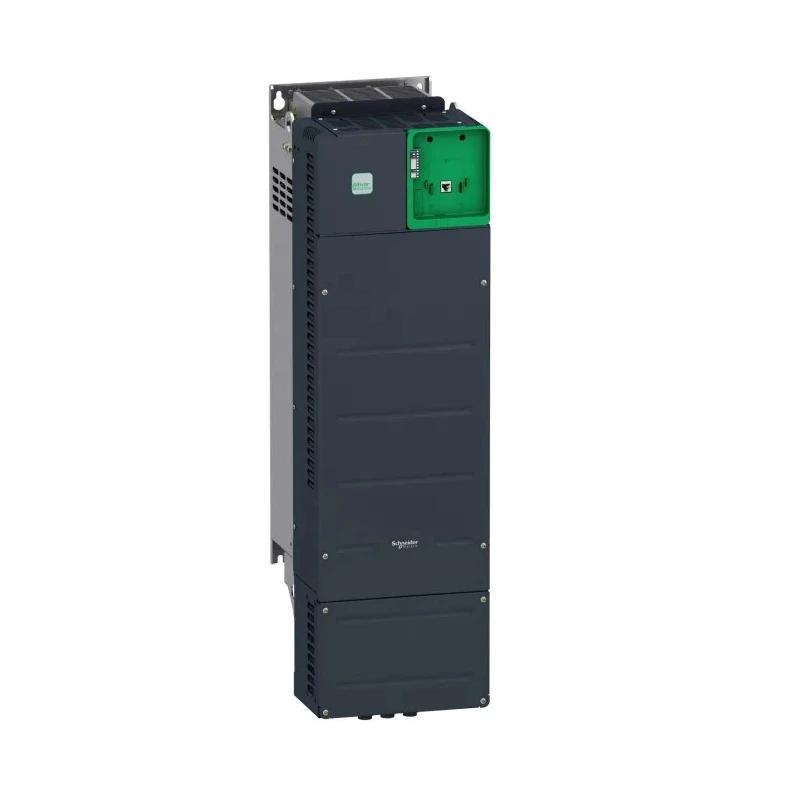

Schneider Electric Inverter Drive 45 kW 3 Phase Altivar Series ATV340D45N4E

Schneider Electric ATV340D45N4E inverter drive is a high-performance variable speed drive designed for 3-phase synchronous and asynchronous motors. It operates efficiently at a rated power of 45 kW and voltage range from 380V to 480V AC, making it ideal for demanding industrial, manufacturing, and automation applications.

Designed with ruggedness in mind, the ATV340 drive withstands harsh environments featuring vibration, shock, and dust, and supports operation in ambient temperatures up to 60°C. Its wall-mount design with compact dimensions (271.26 mm length, 309.31 mm width, and 908 mm depth) facilitates easy installation in control panels.

This drive incorporates advanced communication capabilities including embedded multi-protocol Ethernet interfaces (Ethernet IP and Modbus TCP) and Modbus serial line, allowing seamless integration in industrial network architectures. Expansion slots provide flexibility for adding encoder interfaces, I/O expansion modules, and other communication modules tailored to specific application needs.

Compliant with international standards such as IEC/EN 61800-5-1, IEC/EN 61800-3, IEC 60721-3, IEC 61508, and IEC 13849-1, the ATV340 ensures high quality, electromagnetic compatibility, and functional safety. It is certified by CE, UL, CSA, and TÜV, ensuring adherence to global quality and safety requirements.

The drive supports constant torque rated motor control with overload capabilities of 150% for 60 seconds and 180% for 2 seconds, enabling reliable operation in challenging load conditions. Integration with Schneider Electric’s EcoStruxure Machine architecture is facilitated through SoMachine and SoMove software, providing configuration, control, and diagnostics capabilities.

Applications include packaging machinery, material handling, machine tools, hoisting systems, and various industrial automation sectors requiring energy-efficient and precise motor control.

Provides rated power up to 45 kW, suitable for synchronous and asynchronous motors. Supports maximum output current of 97.2 A ensuring robust motor performance. Features multi-protocol Ethernet embedded communication for enhanced connectivity.

Designed for heavy-duty applications with resistance to vibration, shock, and high temperature up to 60°C. Includes expansion slots for encoder, I/O, and communication modules for versatile integration. Wall mount type with compact dimensions 271.26 mm length, 309.31 mm width, and 908 mm depth.

Complies with international standards including IEC/EN 61800 series and certifications CE, UL, CSA, TÜV. EcoStruxure Machine integration enabled via SoMachine and SoMove software support. Protective rating IP20 suitable for controlled industrial environments.

Saves energy and supports sustainable industrial automation. Discover more Schneider Electric automation and control solutions at EnvMart for advanced industrial performance.
