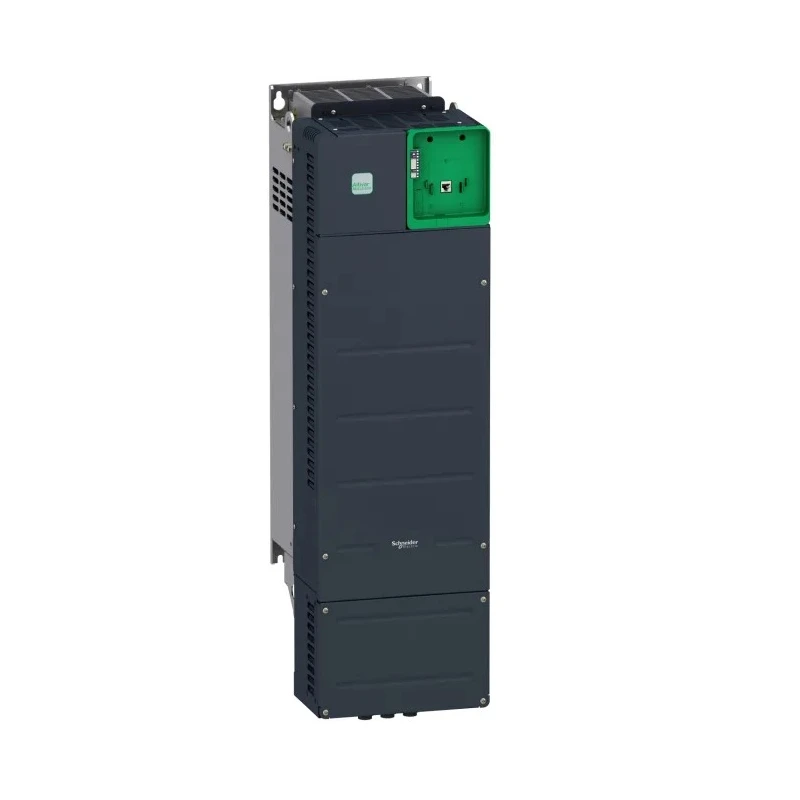

Schneider Electric Inverter Drive 55 kW 3 Phase Altivar Series ATV340D55N4E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | ATV340D55N4E |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Wall |
| Overall Length | 271.26mm |
| Series | Altivar |
| Overall Width | 309.31mm |
| Power Rating | 55kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 500Hz |
| Minimum Operating Temperature | -15°C |
| Interfaces | Ethernet option (ATV340…E) |
| Number of Phases | 3 |
| Maximum Output Current | 98.9A |
| Standards/Approvals | TUV, IEC, REACH, EAC, C-Tick, CSA, EAN, UL, RoHS, CE |
| Maximum Supply Voltage | 480V |
| Overall Depth | 908mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Permanent Magnet Motor, Reluctance Motor |
Key Features
- Supports permanent magnet and reluctance motors for versatile application.
- Designed for harsh environments with temperature resistance up to 50°C and IP20 rating.
- Features Modbus and multi-protocol Ethernet communication interfaces embedded.
- Complies with international standards IEC/EN 61800-5-1, IEC/EN 61800-3, and certified by CE, UL, CSA, and TUV.
- Rated maximum output current of 98.9 A suitable for industrial automation needs.
- EcoStruxure Machine compatible with configuration via SoMachine and SoMove software.
- Energy saving Better World product labeled Green Premium for environmental compliance.
Product Description
Schneider Electric ATV340D55N4E inverter drive is a high-performance variable speed drive rated at 55 kW designed to power 3-phase synchronous and asynchronous motors in both open and closed loop control.
This drive supports permanent magnet and reluctance motor types, providing flexible compatibility for diverse industrial applications including packaging, material handling, and hoisting.
Built to endure harsh industrial environments, it features high temperature resistance up to 50°C, IP20 protection against dust ingress, and robust mechanical design suitable for vibration and shock conditions.
The ATV340 integrates Modbus serial communication along with embedded multi-protocol Ethernet interfaces including Ethernet IP and Modbus TCP, enabling versatile connectivity in automation systems.
Compliant with international standards IEC/EN 61800-5-1 for safety and IEC/EN 61800-3 for electromagnetic compatibility, the product carries certifications such as CE, UL, CSA, and TUV ensuring reliable and safe operation.
Its compact wall-mount design with overall dimensions 271.26 mm (length) x 309.31 mm (width) x 908 mm (depth) and weight of 57.9 kg allows easy integration into control panels with four fixing holes.
The drive is fully integrated within Schneider Electric's EcoStruxure Machine platform, enabling configuration, control, and diagnostics via SoMachine and SoMove software through the standardized DTM software brick.
Supports permanent magnet and reluctance motors. Variable speed drive type for precise motor control. Maximum output current: 98.9 Amperes. Rated for 380 V minimum and 480 V maximum supply voltage. Operating temperature range from -15°C to 50°C.
Wall mount type suitable for vertical installation +/− 10° tilt. Fully compliant with multiple international safety and environmental standards. Better World certified energy-saving product. Ideal for industrial automation, manufacturing, HVAC, water treatment, and other applications requiring reliable variable speed motor control.
Explore the wider range of Inverter Drives and Schneider Electric solutions available on EnvMart for advanced industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV340D55N4E inverter drive has a power rating of 55 kW.
This model supports permanent magnet and reluctance motors, providing flexibility for various industrial applications.
The maximum output current of this inverter drive is 98.9 A.
The operating temperature range for the ATV340D55N4E is from -15°C to 50°C.
The overall dimensions of this unit are 271.26 mm in length, 309.31 mm in width, and 908 mm in depth.
This model is designed for wall mounting and can be installed with a tilt of +/- 10°.
It features Modbus serial communication and embedded multi-protocol Ethernet interfaces, including Ethernet IP and Modbus TCP.
The ATV340D55N4E complies with IEC/EN 61800-5-1 for safety and IEC/EN 61800-3 for electromagnetic compatibility, and it is certified by CE, UL, CSA, and TUV.
The ATV340D55N4E has an IP20 rating, indicating protection against dust ingress.
The minimum supply voltage is 380 V, and the maximum supply voltage is 480 V.
This inverter drive is suitable for various industrial applications, including packaging, material handling, and hoisting.
It is compatible with Schneider Electric's EcoStruxure Machine platform and can be configured via SoMachine and SoMove software.
