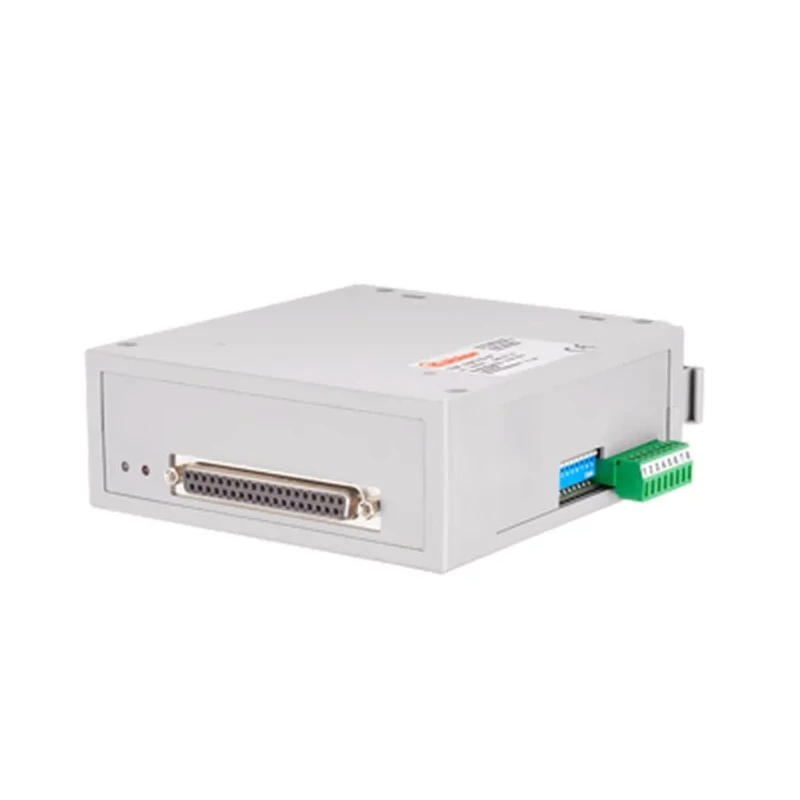

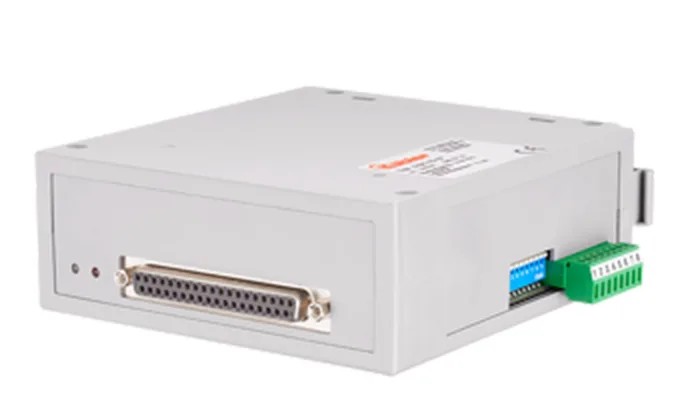

Kubler SK 1S-1P Series Signal Conditioner with Parallel Output, SSI Input, DIN Rail Mount, 125 kHz, 100 V, 8-30 8.SK.1S-1P
Specifications
| Country of Origin | Germany |
|---|---|
| Output | parallel, max. 26 bits, 8 .. 30 V, max |
| Brand | Kubler |
| Model | 8.SK.1S-1P |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Input | synchronous serial interface SSI |
| Series | SK 1S-1P |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Output Range | 100 V, 8 → 30 mA |
| Input Range | 125 kHz |
| Output Signal Type | Parallel |
Key Features
- Designed for industrial applications requiring conversion of sensor or encoder signals in SSI format.
- Provides parallel output with a maximum of 26 bits, 8 to 30 V voltage and 100 mA current capacity.
- Equipped with 12 screw terminal connections and a 37-pin Sub-D socket for easy installation.
- Switchable Gray/Binary input and output codes available for flexible signal processing.
- Supports master/slave operation and includes hold and output enable inputs.
- DIN rail mount ensures quick and convenient cabinet installation.
- Operating temperature range from 0°C to 50°C and an IP20 protection rating.
- Complies with EMC regulations, RoHS directives, CE, and UKCA standards.
Product Description
Kubler 8.SK.1S-1P Series Signal Conditioner is a high-precision converter module designed for demanding industrial applications involving sensor and encoder signal conversion from SSI format to parallel output signals. This device supports parallel output of up to 26 bits with voltages ranging from 8 to 30 V and continuous current capacity up to 100 mA, offering short-circuit protection and bus capability.
The signal conditioner features 12 screw terminal connections and a 37-pin parallel Sub-D socket, allowing secure and versatile connectivity. It is easily mounted within control cabinets on standard DIN rails, providing convenience during installation and maintenance.
It offers switchable input codes between Gray and Binary format, as well as output codes selectable from Gray, Binary, or BCD, enabling flexible integration with various industrial control systems. Additional functional inputs include Hold and Output Enable (OE) to manage signal timing and selection.
Designed to operate reliably within industrial environments, it maintains stable performance within a temperature range of 0°C to 50°C and provides protection according to IP20 standards. The product complies with stringent EMC regulations, RoHS directives, CE marking, and UKCA conformity ensuring safety and environmental compliance.
The Kubler SK 1S-1P Signal Conditioner finds application broadly across industrial automation, embedded control systems, electrical signal processing, and encoder interfaces. It is especially useful in manufacturing, industrial machinery control, laboratory equipment, and process automation requiring accurate and reliable digital signal conditioning.
Conversion of SSI encoder signals to parallel output for industrial automation. Robust DIN rail mount form factor for cabinet integration. Flexible switchable input/output code formats. Reliable operation within defined temperature and protection ratings.
Compliance with international EMC and RoHS standards for industrial safety. Comprehensive connectivity with screw terminals and Sub-D socket. Supports master/slave operation modes for multi-device control systems. Explore our full range of industrial Signal Conditioners at EnvMart for advanced signal processing solutions tailored to your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The signal conditioner provides a parallel output with a maximum of 26 bits, supporting voltages from 8 to 30 V and a continuous current capacity of up to 100 mA.
It supports a synchronous serial interface (SSI) input, allowing for the conversion of sensor or encoder signals.
The operating temperature range for this signal conditioner is from 0°C to 50°C.
This model is designed for DIN rail mounting, facilitating easy installation within control cabinets.
The output signal type is parallel, with selectable output codes available in Gray, Binary, or BCD formats.
It has an IP20 protection rating, indicating it is suitable for indoor use in environments with limited dust and moisture exposure.
The signal conditioner features 12 screw terminal connections and a 37-pin Sub-D socket for versatile and secure connectivity.
Yes, it supports master/slave operation modes, allowing for integration into multi-device control systems.
It complies with EMC regulations, RoHS directives, and has CE and UKCA markings, ensuring safety and environmental compliance.
The input frequency range for this signal conditioner is 125 kHz.
It includes Hold and Output Enable (OE) inputs to manage signal timing and selection effectively.
The country of origin for this signal conditioner is Germany.
