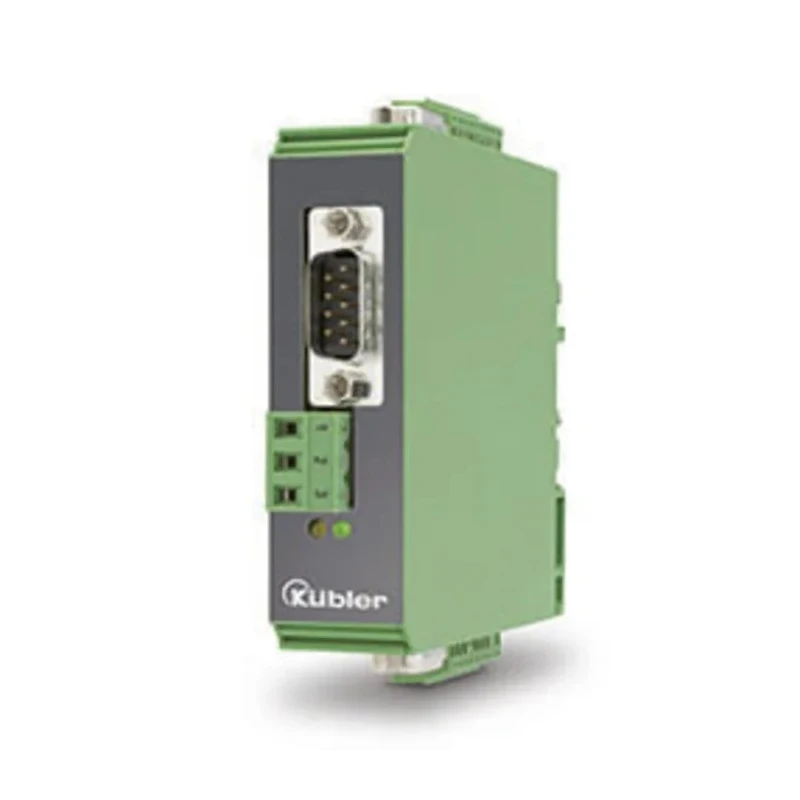

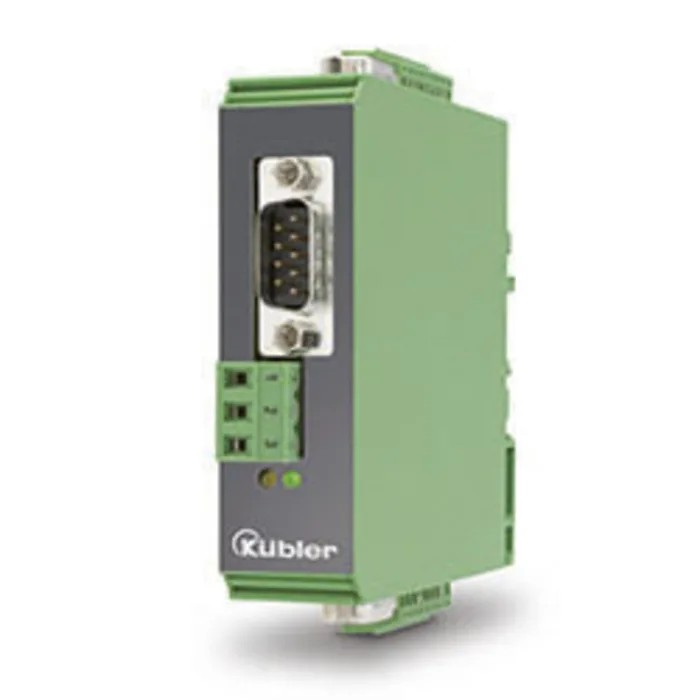

Kubler Signal Conditioner SinCos Input 500 kHz 30 mA 17, 30V DC Supply Series SP 1SC-2SC2D 8.SP.1SC-2SC2D
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Kubler |
| Model | 8.SP.1SC-2SC2D |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | SP 1SC-2SC2D |
| Maximum Operating Temperature | 45°C |
| Minimum Operating Temperature | 0°C |
| Terminal type | Screw |
| Number Of Channels | 2 |
| Output Range | 30 mA |
| Input Range | 500 kHz |
| Supply Voltage | 17, 30V dc |
| Input Signal Type | SinCos |
| Signal Conditioner Type | Signal Splitter |
| Encoder signal input in the 1 Vpp format | SIN+ / SIN- / COS+ / COS- / REF+ / REF |
Key Features
- Supports SinCos encoder inputs with a maximum input frequency of 500 kHz.
- Features two SinCos outputs and two incremental outputs configurable for HTL or TTL/RS422 signals.
- Compatible with 17 V and 30 V DC supply voltages for versatile industrial integration.
- Designed for DIN rail mounting and equipped with screw terminals for secure connections.
- Operating temperature range from 0°C to 45°C with IP20 rating for protection in controlled environments.
- Includes adjustable TTL/RS422 or HTL output levels suited for various encoder systems.
- Ensures signal distribution without loss or distortion to multiple terminal devices.
- Complies with RoHS and EMC standards, ensuring reliability and safety.
Product Description
Kubler 8.SP.1SC-2SC2D Signal Conditioner Series SP 1SC-2SC2D is a high-performance signal splitter designed for SinCos encoders and measuring systems used in industrial control applications. It accepts SinCos input signals up to 500 kHz and provides two SinCos outputs along with two incremental outputs, allowing flexible signal distribution without loss or interference to connected devices.
The device supports encoder supply voltages of 5 V or 24 V (switchable) and inputs signals in the 1 Vpp format including SIN+, SIN-, COS+, COS-, REF+, and REF-. Outputs are configurable for incremental signals (A, /A, B, /B, 0, /0) with selectable TTL/RS422 or HTL levels adjustable between 10 V and 30 V DC, making it suitable for various industrial encoder standards.
Mounting is facilitated via a standard DIN rail with secure screw terminals, ensuring ease of installation in control cabinets. The robust design supports operating temperatures from 0°C to 45°C and features an IP20 ingress protection rating, suitable for protected industrial environments.
This signal conditioner complies with RoHS guideline 2011/65/EU, EMC directive 2014/30/EU, and relevant EMC and safety standards (EN 50581, EN 61000-6-4, EN 61000-6-2, EN 61000-6-3), guaranteeing electromagnetic compatibility and adherence to environmental regulations.
Ideal for applications in automation and control systems, manufacturing, industrial process monitoring, and measurement systems where accurate and reliable signal conditioning and splitting of SinCos encoder signals are critical.
Supports SinCos input signals with up to 500 kHz frequency and 1 Vpp encoder signals. Provides two SinCos outputs and two configurable incremental outputs supporting HTL or TTL/RS422 formats. Compatible with 17 V and 30 V DC supply voltage with controllable encoder supply voltage (5 V or 24 V).
Easy DIN rail mounting and screw terminal connections for secure installation. Operating temperature range of 0°C to 45°C and IP20 rating for moderate protection. RoHS and EMC guideline compliant for safe and environmentally sound operation.
Ensures signal integrity and distribution to multiple terminal devices without loss. Explore more signal conditioning and automation products to enhance industrial and laboratory signal processing applications.
Explore more products in our Signal Conditioners category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input frequency for this signal conditioner is 500 kHz.
It provides two SinCos outputs and two configurable incremental outputs that can support HTL or TTL/RS422 formats.
This model is compatible with supply voltages of 17 V and 30 V DC.
The operating temperature range for this signal conditioner is from 0°C to 45°C.
It is designed for DIN rail mounting and features screw terminals for secure connections.
It accepts SinCos input signals in the 1 Vpp format, including SIN+, SIN-, COS+, COS-, REF+, and REF-.
The output current capability of this model is 30 mA.
It complies with RoHS guidelines and EMC directives, ensuring electromagnetic compatibility and adherence to environmental regulations.
This unit uses screw terminal connections for secure installation.
It ensures signal integrity by distributing signals without loss or distortion to multiple terminal devices.
The IP rating of this model is IP20, indicating protection suitable for controlled environments.
It supports encoder supply voltages of 5 V or 24 V, which are switchable.
