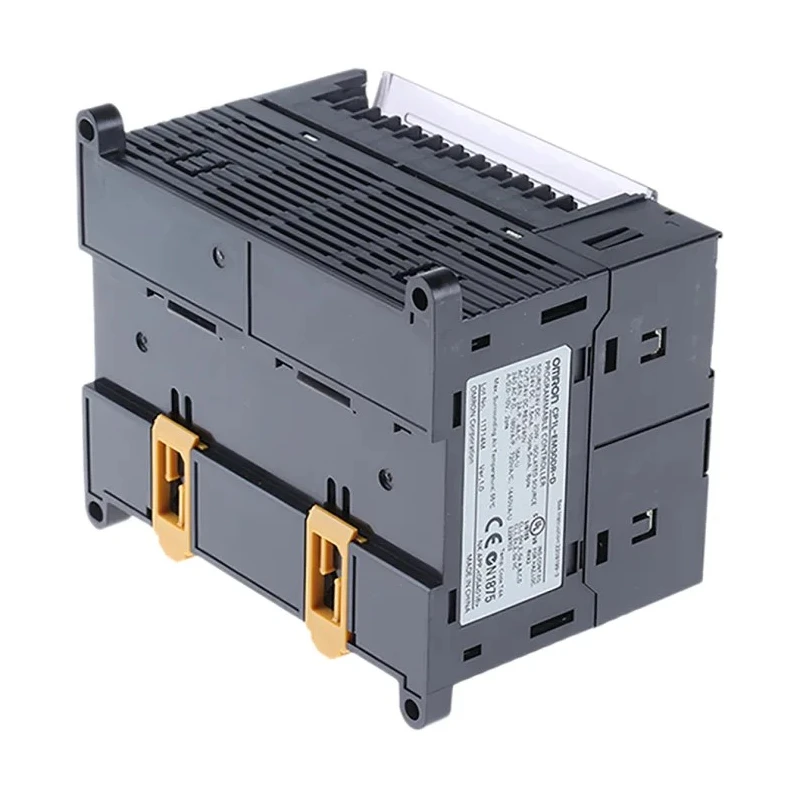

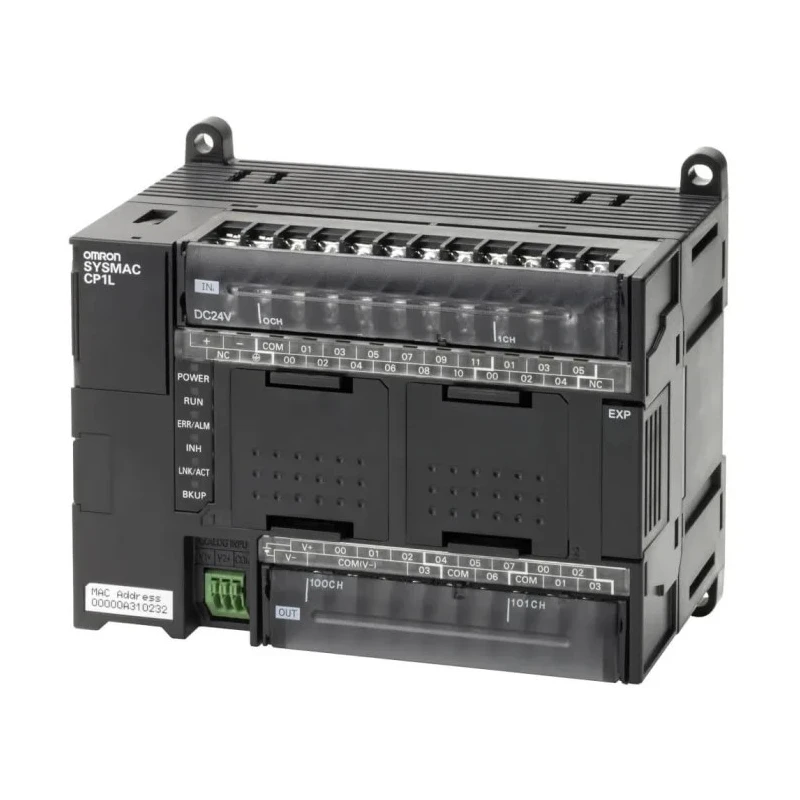

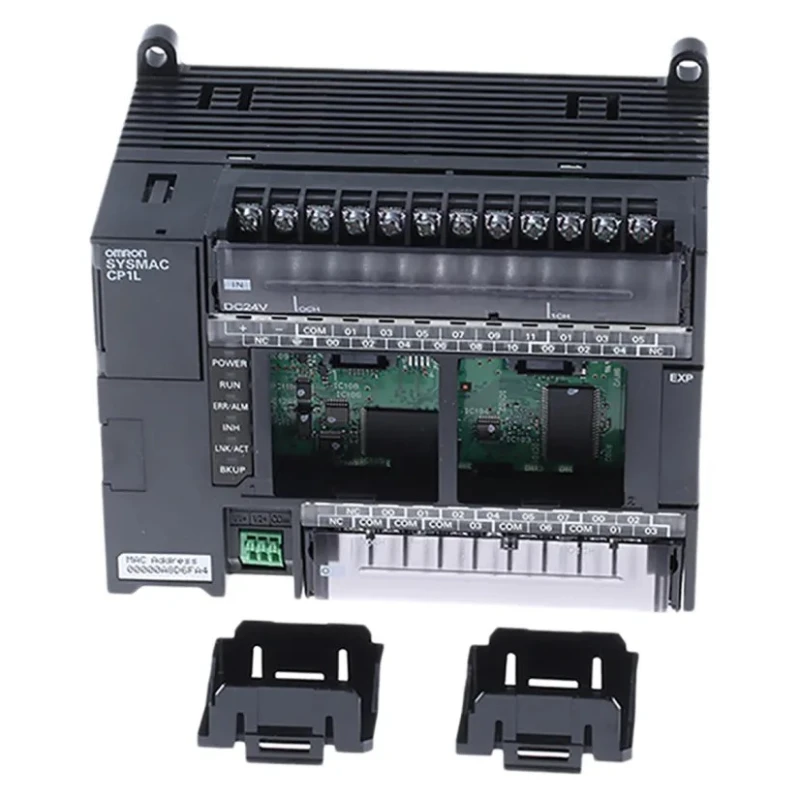

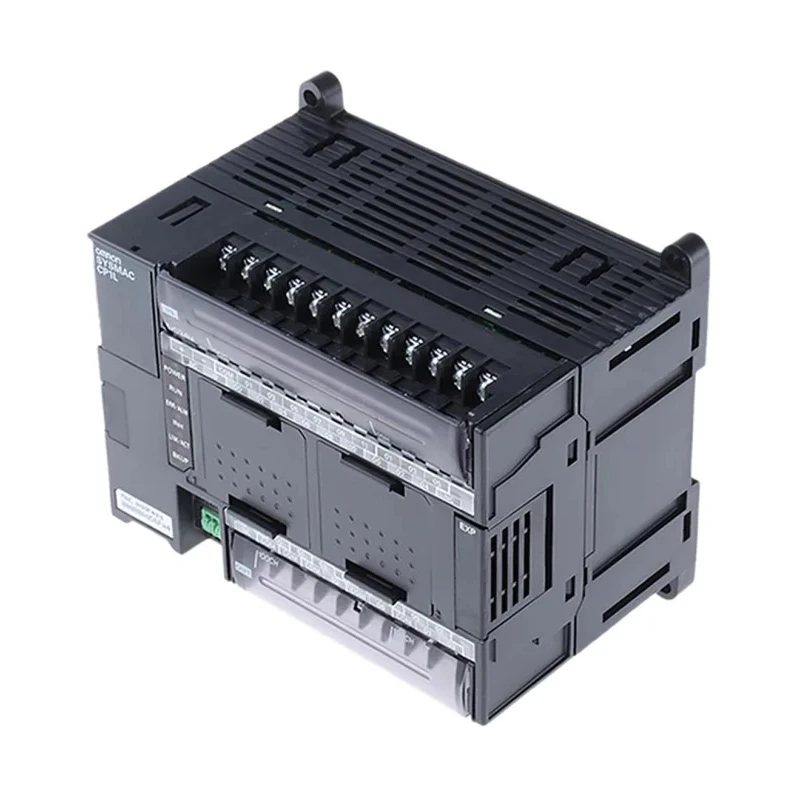

Omron CP1L-EM Series PLC CPU 18-Input DC Input 12 Relay Outputs RS232 Communication DIN Rail Mount

The Omron CP1L-EM30DR-D is a high-performance PLC CPU designed for industrial automation applications requiring reliable control and diverse input/output handling. This controller offers 18 digital inputs with DC input type and 12 relay-based digital outputs, making it suitable for controlling various electrical systems efficiently.

Its compact form factor with dimensions of 130 mm length, 90 mm width, and 85 mm depth allows easy installation on standard DIN rails, ensuring a secure and accessible fit within control panels. The device operates effectively in harsh industrial environments, with a temperature operating range from 0°C to 55°C, guaranteeing stable performance.

This PLC supports programming via ladder diagrams, streamlining development and deployment of control logic for complex industrial automation processes. It features one RS232 communication port and integrates Ethernet connectivity to enable seamless communication with other networked devices and automation systems.

With a robust program capacity of 10,000 steps, the CP1L-EM30DR-D can handle sophisticated control sequences and logic operations. The inclusion of battery backup functionality ensures that programmed data is retained during power failures, enhancing reliability and uptime.

The relay output configurations provide versatile control options for an array of electrical loads, making the unit adaptable to a wide range of industrial applications including manufacturing, process control, and building automation systems.

Installation is straightforward: align the unit with the DIN rail and snap it firmly into place to secure stable mounting. The design allows for easy integration in existing setups needing reliable digital input/output control with Ethernet network capabilities.

This PLC supports ladder diagram programming for user-friendly configuration. Features one RS232 communication port and Ethernet connectivity for flexible networking. Includes battery backup to ensure robust operation during power interruptions.

Operates reliably within a temperature range of 0°C to 55°C. Compact dimensions of 130 x 90 x 85 mm with DIN rail mounting compatibility. Output current rating is 10mA suitable for controlling various electrical loads. Program capacity supports up to 10,000 steps for complex automation tasks.

Relay outputs enhance compatibility with diverse automation devices.

This Omron PLC CPU is an ideal choice for industrial automation tasks in manufacturing, HVAC control, process automation, and electrical control panels requiring both reliability and functional flexibility. Browse EnvMart's range of PLCs for additional components and system accessories compatible with the CP1L-EM series.
