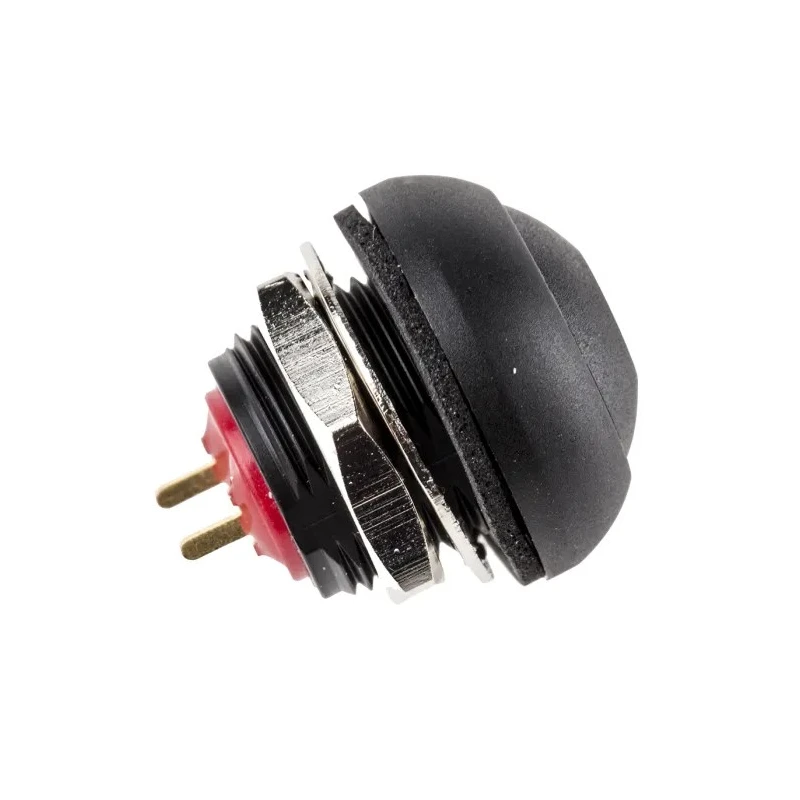

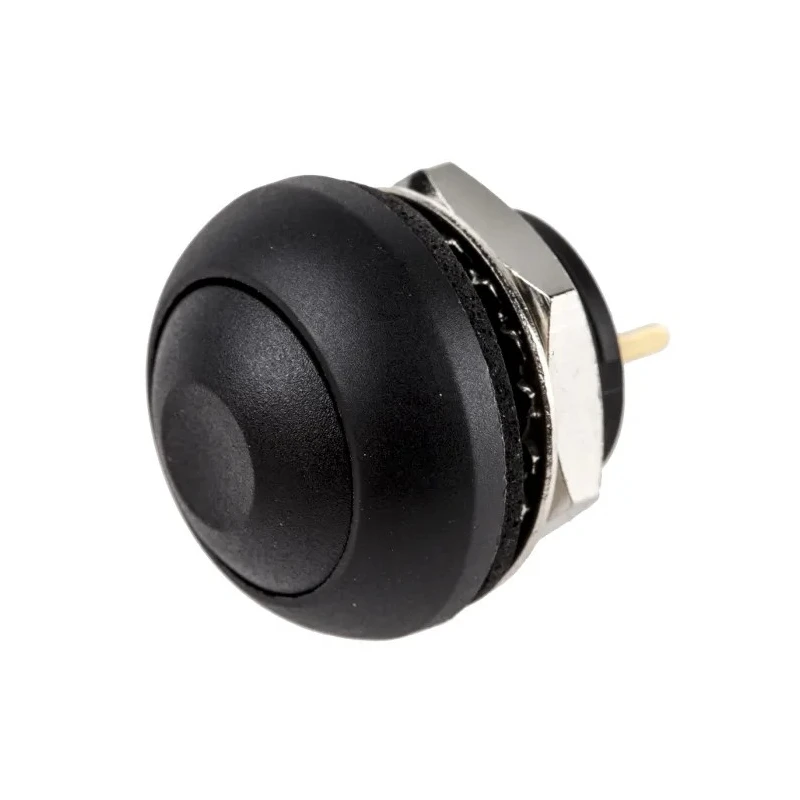

RS PRO Miniature Push Button Switch Momentary PCB SPST 13.6 mm Cutout Black LED IP67 50V dc 32V ac 820-7596
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 820-7596 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 13.6 mm |
| Terminal type | PCB Pin |
| Standards/Approvals | Lead-Free, RoHS |
| LED Colour | Black |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 50V dc |
| Actuator Style | Cap |
| Switch Contact Current | 400mA |
| Operating Force | 2N-5N |
| Mechanical Life | 1000000 cycles |
| Contact AC Voltage | 32V ac |
| Contact Bounce | 10 ms |
| Soldering | 350°C maximum for 5 seconds |
Key Features
- The actuator is black colored with a cap style for easy pressing.
- IP67 rated for protection against dust and water ingress.
- Operates at contact voltages of 50 V DC and 32 V AC with a maximum contact current of 400 mA.
- Mechanical life of 1,000,000 cycles ensures durability and reliability.
- Operating force ranges from 2N to 5N, with a contact bounce time of 10 ms.
- Gold over silver plated contact enhances conductivity and corrosion resistance.
- Soldering tolerance up to 350°C for 5 seconds supports robust PCB assembly.
- Maximum operating temperature of 85°C suitable for various industrial environments.
Product Description
RS PRO 820-7596 Miniature Push Button Switch is a high-quality component designed for momentary SPST switching with PCB mounting.
The black polyamide 6/6 cap actuator provides tactile feedback with an operating force between 2N and 5N. The switch’s gold over silver plated contacts ensure excellent conductivity and long service life with a mechanical rating of 1,000,000 cycles. It is suitable for use in harsh industrial conditions with an IP67 ingress protection rating, allowing it to withstand dust and water exposure.
This switch supports contact voltages of up to 50 V DC and 32 V AC, with a contact current rating of 400 mA. The contact bounce is minimized to 10 ms, ensuring reliable switching performance. It can tolerate soldering temperatures up to 350°C for 5 seconds, making it compatible with standard PCB assembly processes. The device operates reliably up to a maximum temperature of 85°C, making it ideal for applications requiring durability and temperature resistance.
Typical industrial applications include test equipment, telecommunications, networking hardware, and handheld appliances, where precise momentary switch control is essential. The actuator is black colored with a cap style for easy pressing.
IP67 rated protection against dust and water. Supports 50 V DC and 32 V AC contact voltages. Maximum contact current rating of 400 mA. Durable mechanical life of 1,000,000 cycles. Operating force between 2N to 5N with minimal contact bounce.
Gold over silver plated contacts for reliability. Soldering compatibility up to 350°C for 5 seconds. Maximum operating temperature of 85°C suitable for harsh environments.
This RS PRO switch is rigorously tested following industry standards and is RoHS compliant, making it a trustworthy choice for engineers and technicians. Explore the range of RS PRO electrical and automation components at EnvMart for more industrial solutions.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 85°C, making it suitable for harsh industrial environments.
This switch has an IP67 rating, providing protection against dust and water ingress.
It features a Single Pole Single Throw (SPST) switch configuration, suitable for momentary switching applications.
The switch supports contact voltages of up to 50 V DC and 32 V AC.
The maximum contact current rating is 400 mA, allowing for efficient operation in various applications.
This model has a mechanical life of 1,000,000 cycles, ensuring long-term reliability.
The operating force for this switch ranges from 2N to 5N, providing tactile feedback during operation.
The contact bounce time is minimized to 10 ms, ensuring reliable switching performance.
This switch is designed for PCB mounting, making it suitable for various electronic applications.
It can tolerate soldering temperatures up to 350°C for 5 seconds, supporting robust PCB assembly processes.
The actuator is black in color and features a cap style for easy pressing.
Yes, this model is RoHS compliant, adhering to industry standards for environmental safety.
