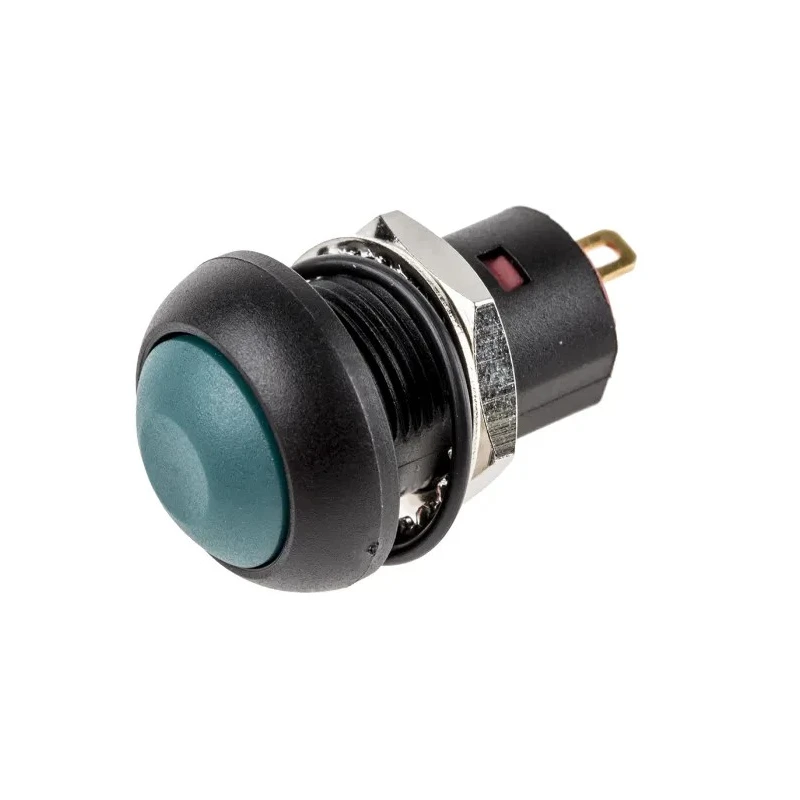

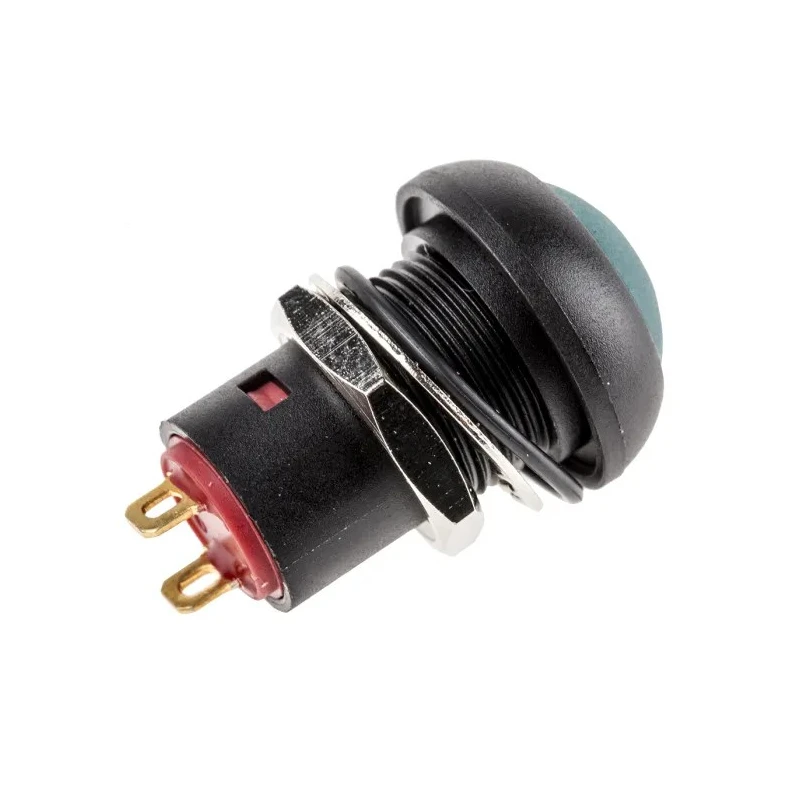

RS PRO Miniature Latching Push Button Switch, PCB Mount, 13.6 mm Cutout, SPST, Green LED, IP67 Rated, 24 V DC 30 V 8207552P

RS PRO 8207552P is a miniature push button switch with a latching mechanism, designed specifically for PCB mounting applications requiring a compact 13.6 mm panel cutout. This SPST (Single Pole Single Throw) switch features a green LED actuator, providing clear visual feedback when engaged.

Constructed with high-quality materials including a Polyamide 6/6 cap and gold over silver plated contacts, the switch ensures excellent electrical conductivity and durability. It is IP67 rated, offering protection against dust ingress and water immersion, making it highly suitable for harsh industrial and commercial environments.

The switch is rated for contact currents of up to 100 mA at 24 V DC and 30 V AC, meeting the demands of low voltage control circuits. Its mechanical life of 1,000,000 cycles and operating force rating between 2N and 5N ensure reliable long-term performance with precise tactile feedback during operation.

Solder lug terminals facilitate strong and stable PCB connections, while the cap actuator style allows for easy and ergonomic actuation. Its maximum operating temperature of 85°C enables it to function effectively in a variety of industrial, laboratory, telecommunications, networking, and handheld appliance applications.

Features a green LED actuator for clear operational indication. IP67 rated for dust tight and waterproof performance. Operates at 24 V DC and 30 V AC with 100 mA contact current rating. High-quality Polyamide 6/6 cap and gold over silver plated contacts.

Mechanical life of 1,000,000 cycles for durable usage. Operating force between 2N to 5N providing tactile feedback. Maximum operating temperature at 85°C for industrial environments. Solder lug terminal type for reliable PCB connections.

Cap actuator style designed for ergonomic use.

This miniature push button switch from RS PRO is ideal for use in a diverse range of sectors including industrial automation, test equipment, telecommunications, networking hardware, and portable handheld devices. Its robust design and rated specifications provide confidence in demanding operational contexts.
