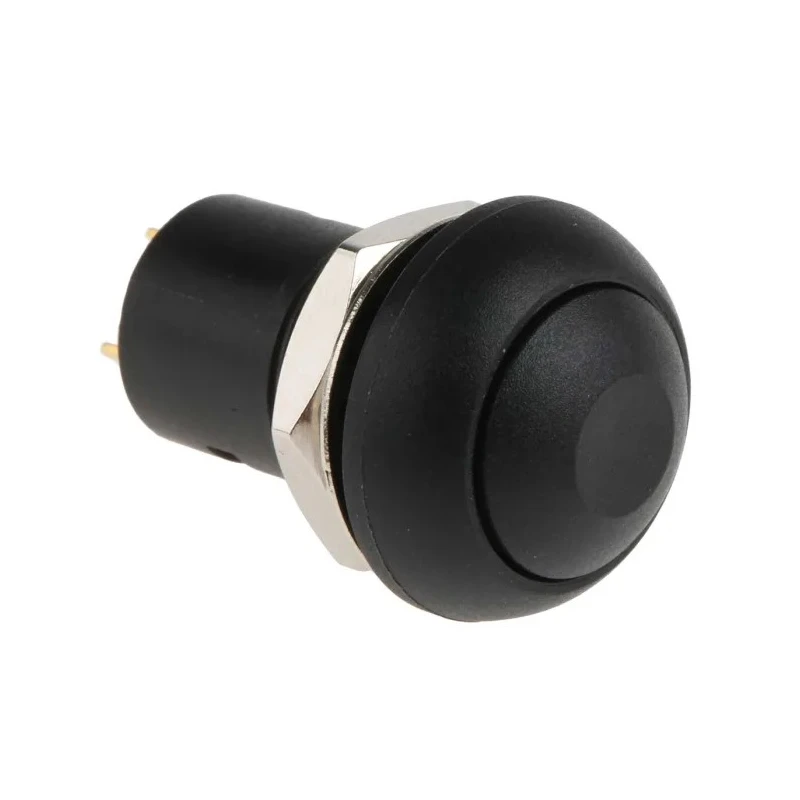

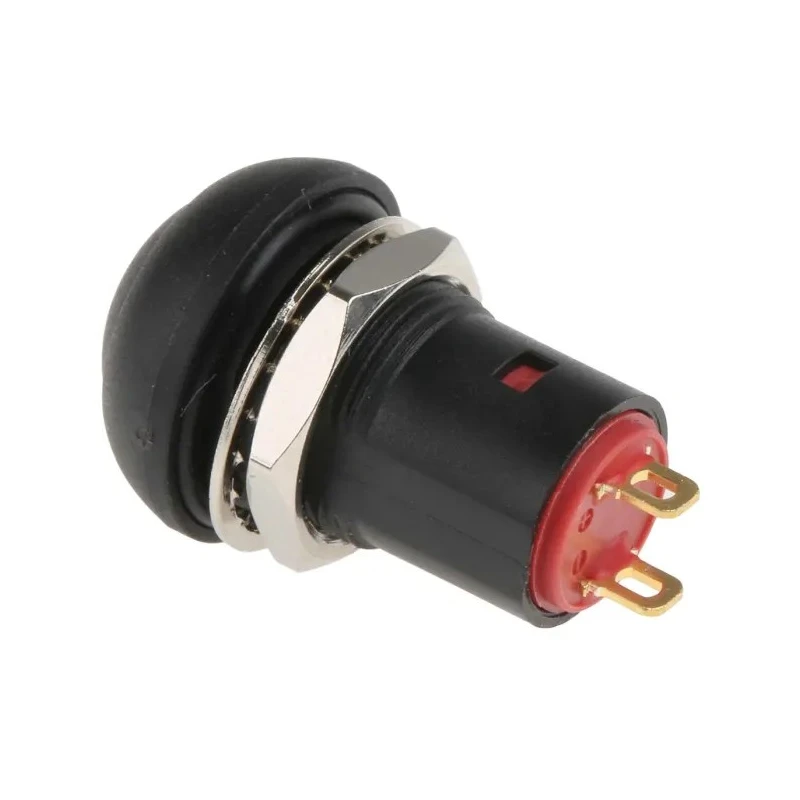

RS PRO Miniature Push Button Switch, Latching, PCB Mount, 13.6 mm Cutout, SPST, Black LED, IP67, 24 V dc, 30 V ac 8207549P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 8207549P |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder Lug |
| LED Colour | Black |
| Switch Operation | Latching |
| Actuator Colour | Black |
| Contact DC Voltage | 24V dc |
| Actuator Style | Cap |
| Switch Contact Current | 100mA |
| Operating Force | 2N-5N |
| Mechanical Life | 1000000 cycles |
| Contact AC Voltage | 30V ac |
| Contact Bounce | 10 ms |
| Soldering | 350°C maximum for 5 seconds |
Key Features
- This switch operates with a latching mechanism for reliable control of circuits.
- The actuator is black with a cap style, providing tactile feedback and durability.
- Suitable for use in environments requiring protection against dust and water ingress.
- Rated for 24 V dc and 30 V ac contact voltage with a maximum current of 100mA.
- The switch has a robust mechanical life expectancy of 1,000,000 cycles.
- Designed for solder lug terminal connections for secure assembly on PCBs.
- Maximum operating temperature is 85°C ensuring stable performance under moderate heat conditions.
- Operating force ranges between 2N-5N, ensuring comfortable actuation.
Product Description
RS PRO 8207549P Miniature Push Button Switch is a latching type push button switch specifically built for PCB mounting applications. It requires a 13.6 mm panel cutout and features a single pole single throw (SPST) contact configuration with a black LED indicator.
The switch is designed with a black polyamide 6/6 actuator cap that provides durability and excellent tactile feedback. It offers an IP67 ingress protection rating, making it suitable for use in industrial, automation, telecommunications, networking, and test equipment environments where protection against dust and water is essential.
Designed for low current switching, this push button switch supports 24 V dc and 30 V ac contact voltages and operates up to 100 mA current. The switch operates with a latching mechanism, ensuring reliable control by maintaining its on or off state until toggled again. The solder lug terminals facilitate easy integration into printed circuit boards.
With an operating force of 2N to 5N and a contact bounce time of 10 milliseconds, this model provides comfortable and responsive button actuation. It boasts a mechanical life cycle rating of 1,000,000 operations, reflecting high reliability and durability.
The switch can withstand soldering temperatures up to 350°C for 5 seconds, supporting manufacturing processes that involve soldering. It is rated for a maximum continuous operating temperature of 85°C, making it robust for use in various industrial and electronic assembly applications.
Latching switch operation for stable on/off control. IP67 rated for protection against dust and water ingress. Robust mechanical life with 1,000,000 cycles. Black LED color actuator with a cap style for visual indication.
Suitable for telecommunications, networking, and test equipment. Solder lug terminal type for secure PCB mounting. Compact 13.6 mm panel cutout size for sub-miniature design. Operating force between 2N and 5N for ease of use.
This RS PRO push button switch is ideal for use in electronics, automation, and telecommunications equipment requiring precise and reliable switching functionality. Explore more RS PRO products and related electronic components on EnvMart.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C, ensuring stable performance under moderate heat conditions.
This switch is rated for 24 V dc and 30 V ac contact voltages.
It has a mechanical life expectancy of 1,000,000 cycles, indicating high reliability for repeated use.
The switch features solder lug terminals, facilitating secure assembly on printed circuit boards.
This model requires a panel cutout size of 13.6 mm for proper installation.
The operating force for this switch ranges between 2N and 5N, providing comfortable actuation.
Yes, it has an IP67 rating, making it suitable for environments requiring protection against dust and water ingress.
The contact bounce time for this model is 10 milliseconds, ensuring responsive operation.
It features a cap style actuator, which provides tactile feedback and enhances durability.
This push button switch is suitable for applications in telecommunications, networking, and test equipment.
The actuator has a black LED color, providing visual indication when activated.
