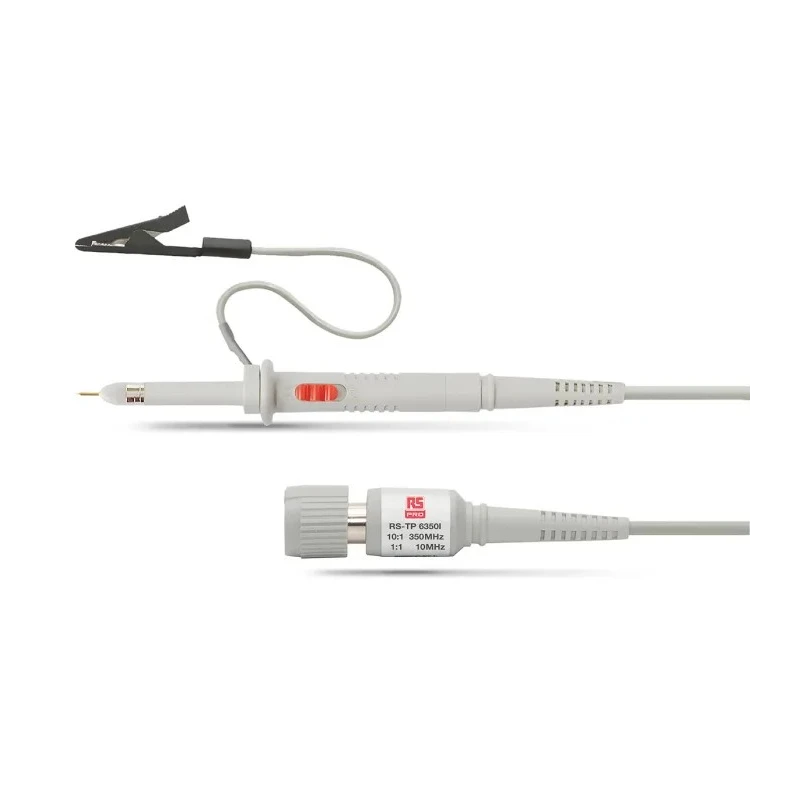

RS PRO Passive Oscilloscope Probe Voltage Type 350 MHz Bandwidth 1:1, 1:10 Attenuation BNC Connector 179-9556

RS PRO 179-9556 is a passive oscilloscope probe designed for voltage measurements with a bandwidth of 350 MHz. This probe features switchable attenuation ratios of 1:1 and 10:1, enabling precise signal measurement across a variety of frequencies. Its ergonomic and lightweight design makes it suitable for portable and field work without the need for any power source.

The probe is compatible with RS PRO oscilloscopes as well as other major oscilloscope brands, making it a versatile tool for electrical testing and diagnostic tasks in industrial, laboratory, electronics manufacturing, and field service applications.

Equipped with a 5 mm diameter BNC connector, this probe ensures secure and reliable signal transmission. It supports a safety category level of CAT II, rated at 55 Vrms for 1:1 attenuation and up to 400 Vrms for 10:1 attenuation, providing protection during measurement on standard electrical equipment.

The compensation range of 10 to 30 pF allows fine-tuning the probe to match oscilloscope input capacitance, optimizing signal fidelity. The fast rise time of 35 ns facilitates detailed observation of transient signals and rapid waveform changes.

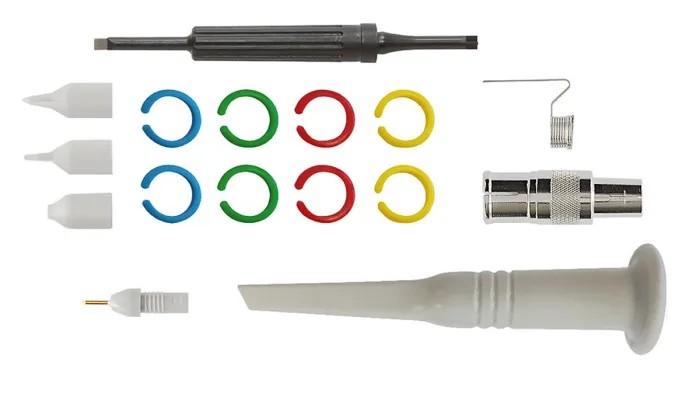

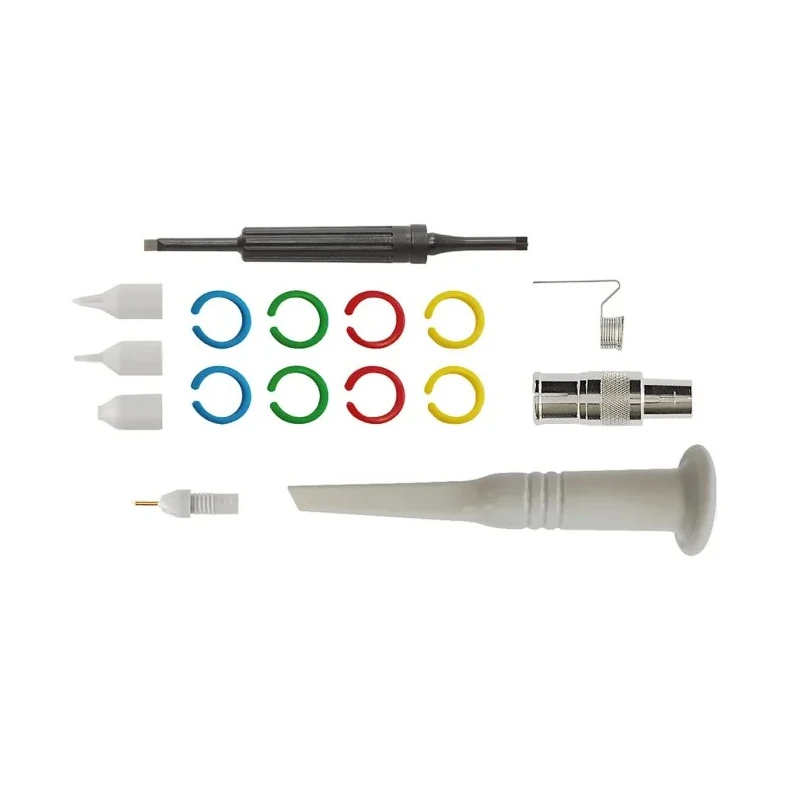

This RS PRO oscilloscope probe complies with CE and IEC 61010-031:2015 safety standards, ensuring adherence to recognized quality and safety guidelines. It includes a comprehensive accessory kit to support a wide range of testing requirements immediately upon deployment.

Suitable for use with RS PRO and major oscilloscope brands. Switchable attenuation settings of 1:1 and 10:1 for flexible measurement ranges. Bandwidths of 10 MHz (1:1) and 350 MHz (10:1) allow high and low frequency use.

Ergonomic and lightweight passive design requiring no battery. Includes a full accessory kit for immediate use. 5 mm diameter BNC connector for secure signal connectivity. Safety category level CAT II 55 Vrms at 1:1 and CAT II 400 Vrms at 10:1 attenuation.

Compensation range adjustable between 10 and 30 pF for accurate signal tracing. Rise time specification of 35 ns supports fast transient detection. Complies with CE and IEC 61010-031:2015 safety standards.

This Oscilloscope Probe is ideal for industrial, laboratory, electronics, and field service use, offering reliable and accurate voltage measurements while ensuring user safety. Browse EnvMart for a comprehensive range of RS PRO test and measurement instruments.
