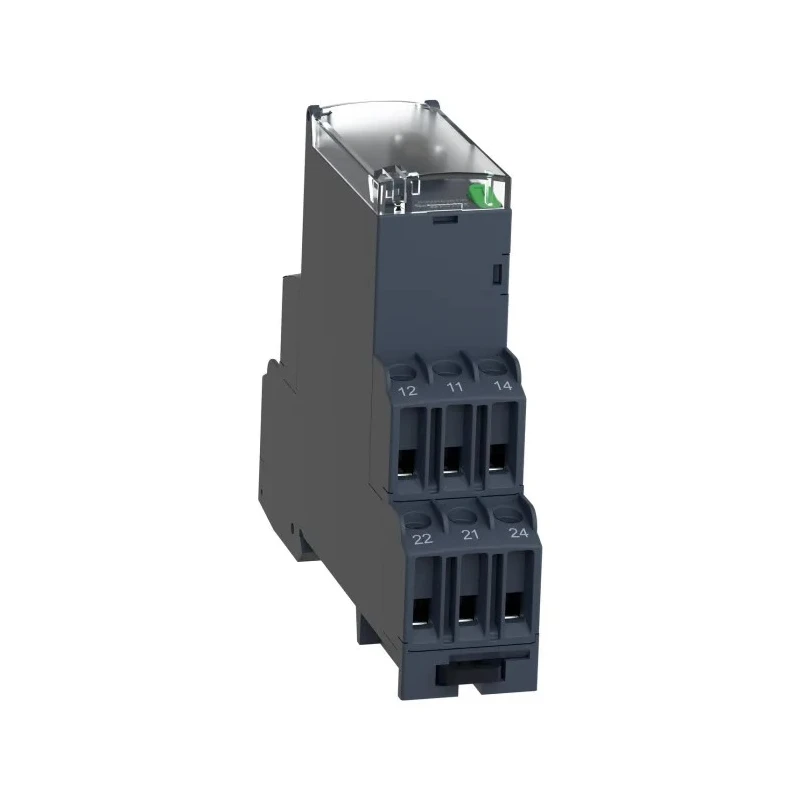

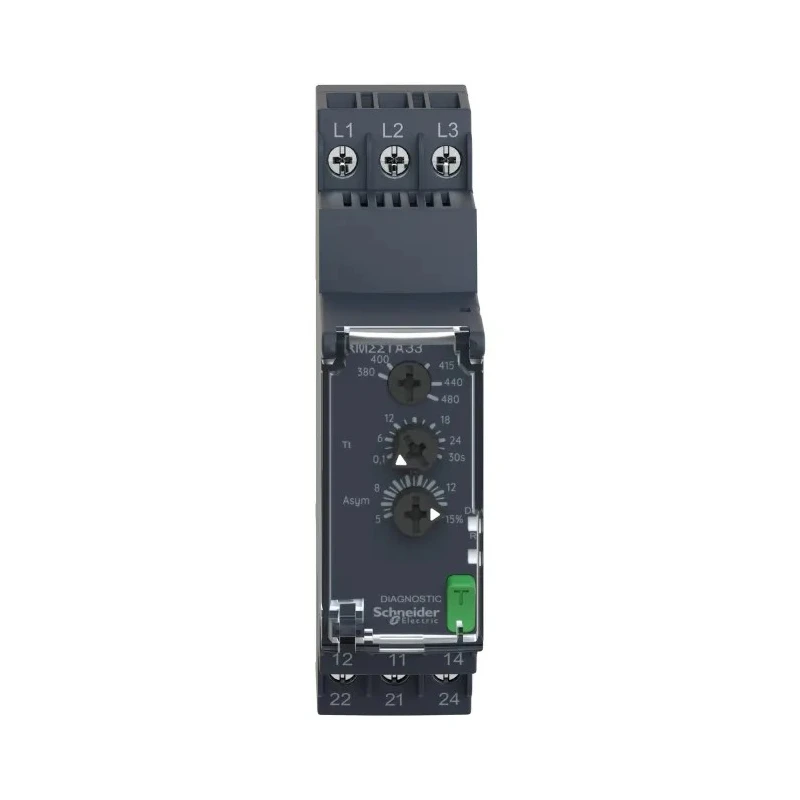

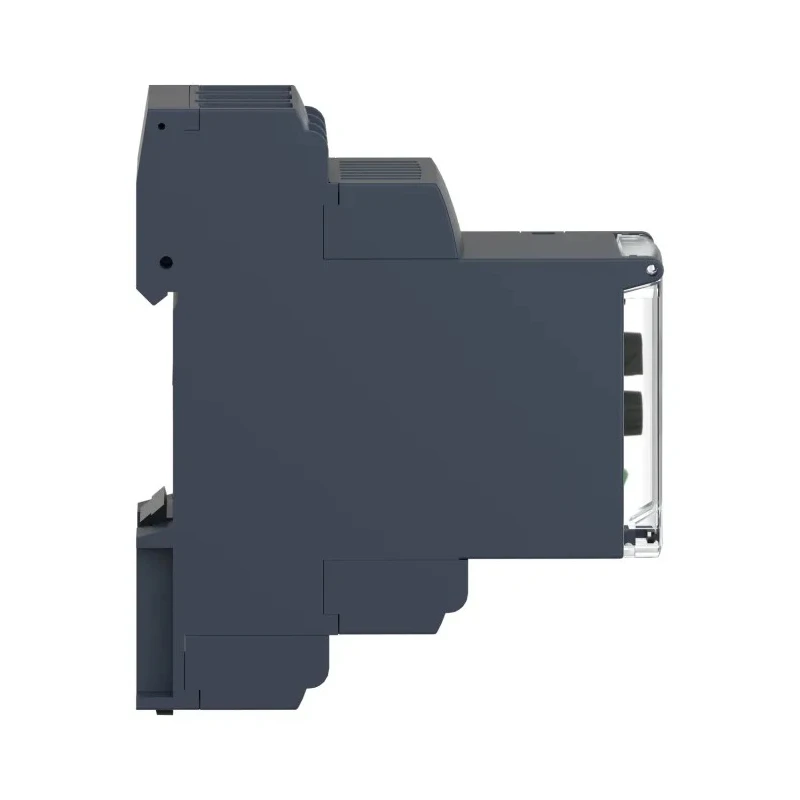

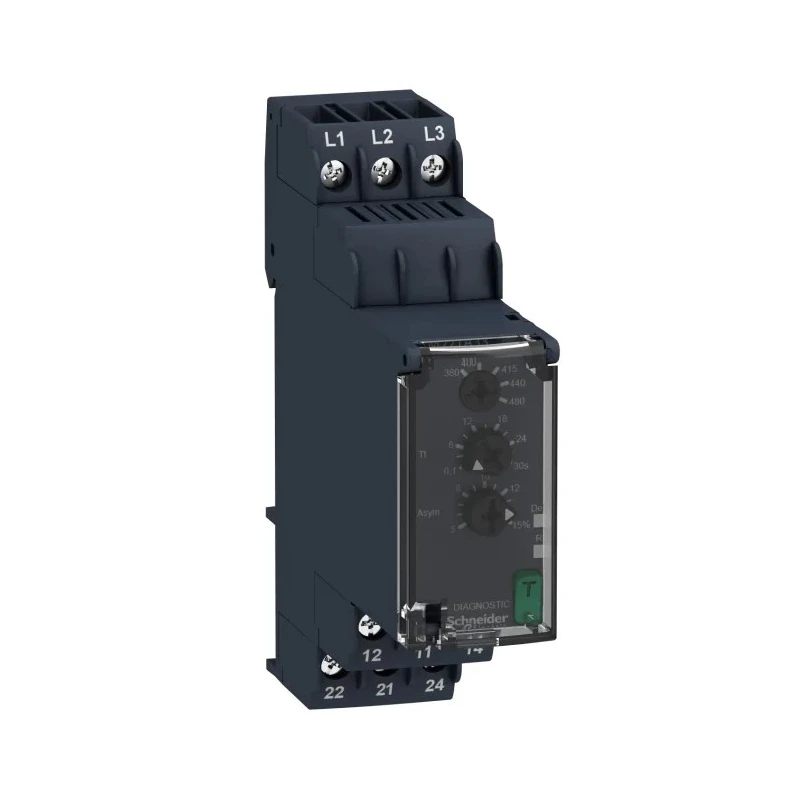

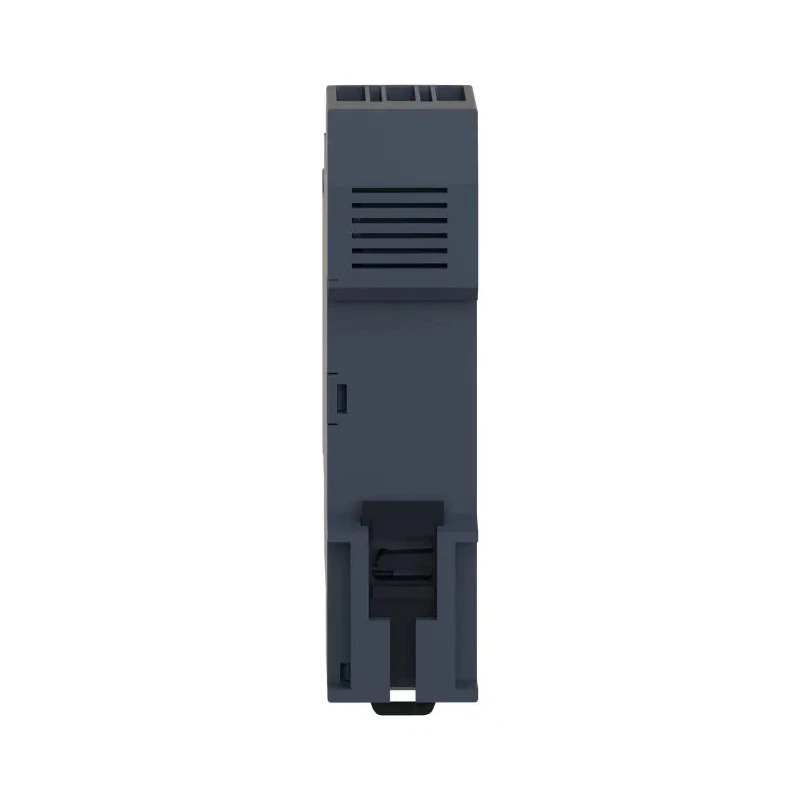

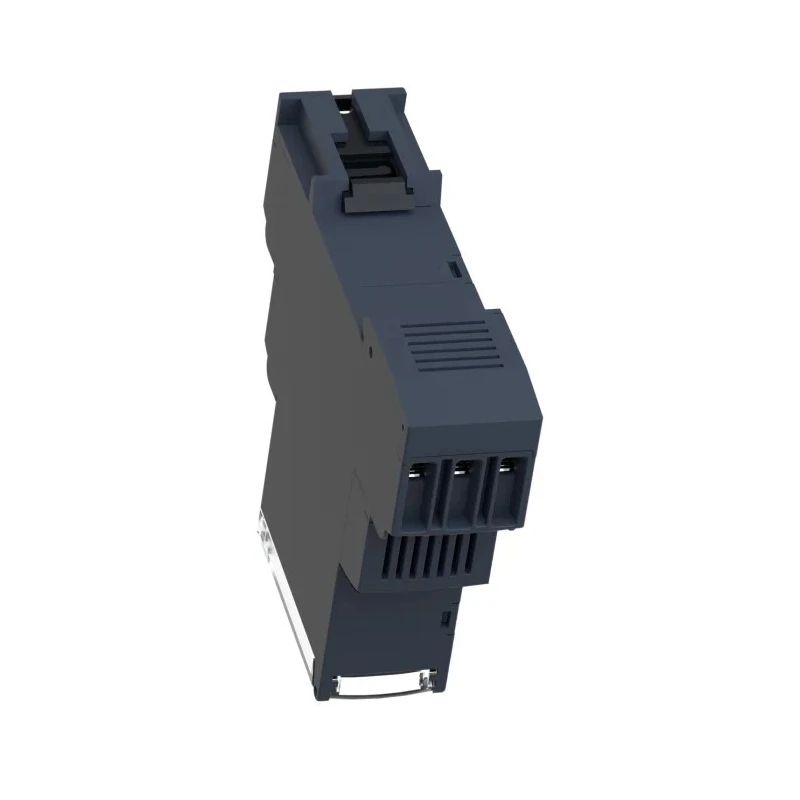

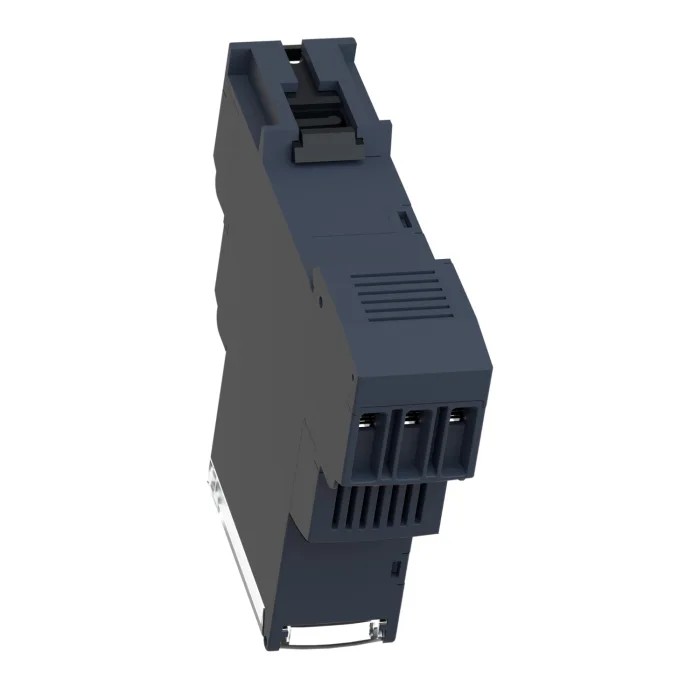

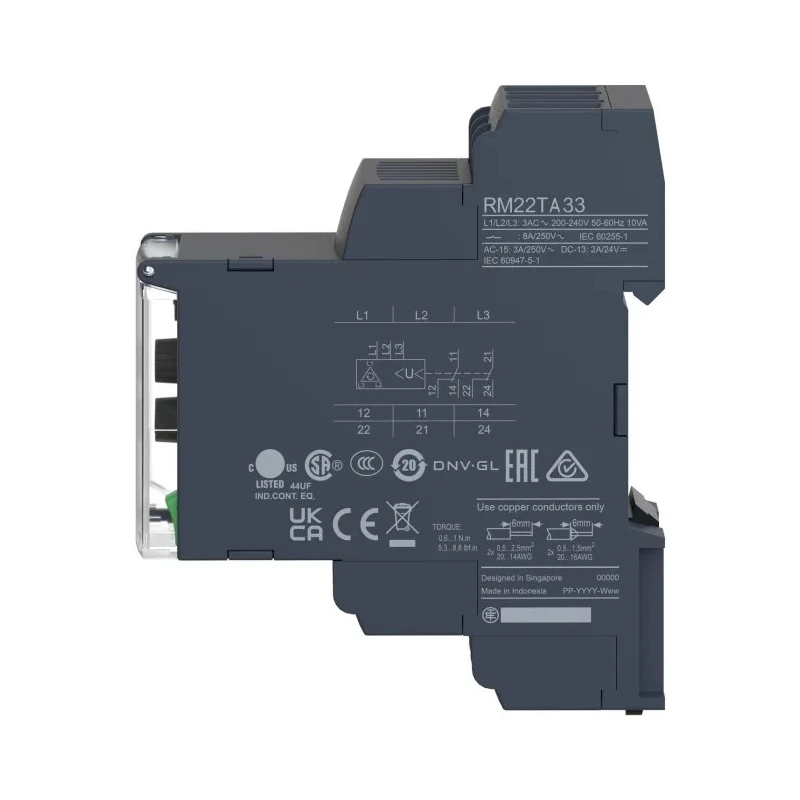

Schneider Electric Monitoring Relay 3 Phase Overvoltage DPDT DIN Rail 380V ac 480V ac RM22TA33
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Height | 90mm |
| Function | Overvoltage |
| Length | 22.9mm |
| Model | RM22TA33 |
| IP Rating | IP20, IP40, IP50 |
| Width | 79.5mm |
| Mount Type | DIN Rail |
| Series | Harmony Control |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Standards/Approvals | CE |
| Switching Voltage | 250V ac |
| Contact Current | 8A |
| Supply AC Voltage | 380, 480V ac |
Key Features
- Suitable for monitoring voltage in three-phase electrical circuits.
- Equipped with DPDT contacts for versatile switching applications.
- Compact dimensions with 90mm height and 79.5mm width.
- Supports supply voltages of 380V ac and 480V ac.
- Robust screw terminal connections ensure secure wiring.
- Operational temperature range from -20°C to 70°C for varied environments.
- IP protection ratings of IP20, IP40, and IP50 for different installation needs.
- CE certified, conforming to international standards.
Product Description
Schneider Electric RM22TA33 monitoring relay is a three-phase overvoltage relay designed for industrial and commercial electrical monitoring applications. This device features a double-pole double-throw (DPDT) contact configuration and is constructed for easy installation on a DIN rail system. It supports supply voltages of 380V ac and 480V ac, making it suitable for a broad range of power distribution networks.
The relay is built with a robust screw terminal interface for reliable connections and operates within a temperature range of -20°C to 70°C, ensuring stable performance in diverse environmental conditions. With IP ratings of IP20, IP40, and IP50, it provides varying degrees of protection against intrusion, dust, and water, adaptable to different industrial settings.
Its compact size, measuring 90mm in height, 79.5mm in width, and 22.9mm in length, allows it to fit neatly within control panels and switchgear assemblies. The product is part of the Harmony Control series from Schneider Electric, a renowned brand for quality and safety in electrical automation components.
This Monitoring Relay meets CE standards, assuring compliance with European safety and performance requirements. It is ideal for use in industrial automation, electrical distribution, HVAC control, manufacturing plants, and other commercial setups where precise monitoring and protection of electrical phases are critical.
Suitable for monitoring voltage in three-phase electrical circuits. Equipped with DPDT contacts for versatile switching applications. Compact dimensions with 90mm height and 79.5mm width. Supports supply voltages of 380V ac and 480V ac.
Robust screw terminal connections ensure secure wiring. Operational temperature range from -20°C to 70°C for varied environments. IP protection ratings of IP20, IP40, and IP50 for different installation needs. CE certified, conforming to international standards.
Explore the range of Schneider Electric monitoring and control products on EnvMart for your industrial automation and electrical protection requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operational temperature range of this monitoring relay is from -20°C to 70°C, making it suitable for varied environments.
This model has compact dimensions of 90mm in height, 79.5mm in width, and 22.9mm in length, allowing for easy installation in control panels.
It supports supply voltages of 380V ac and 480V ac, making it versatile for different power distribution networks.
The unit features a double-pole double-throw (DPDT) contact configuration, allowing for versatile switching applications.
The monitoring relay has IP protection ratings of IP20, IP40, and IP50, providing varying degrees of protection against dust and water.
The maximum contact current for this model is 8A, suitable for various applications in industrial settings.
This relay is designed for DIN rail mounting, facilitating easy installation in electrical panels.
The RM22TA33 complies with CE standards, ensuring it meets European safety and performance requirements.
The primary function of this monitoring relay is to monitor overvoltage in three-phase electrical circuits.
The RM22TA33 is manufactured in Indonesia, reflecting its origin in industrial automation components.
It uses robust screw terminal connections, ensuring secure wiring for reliable operation.
This monitoring relay is suitable for applications in industrial automation, electrical distribution, HVAC control, and manufacturing plants.
