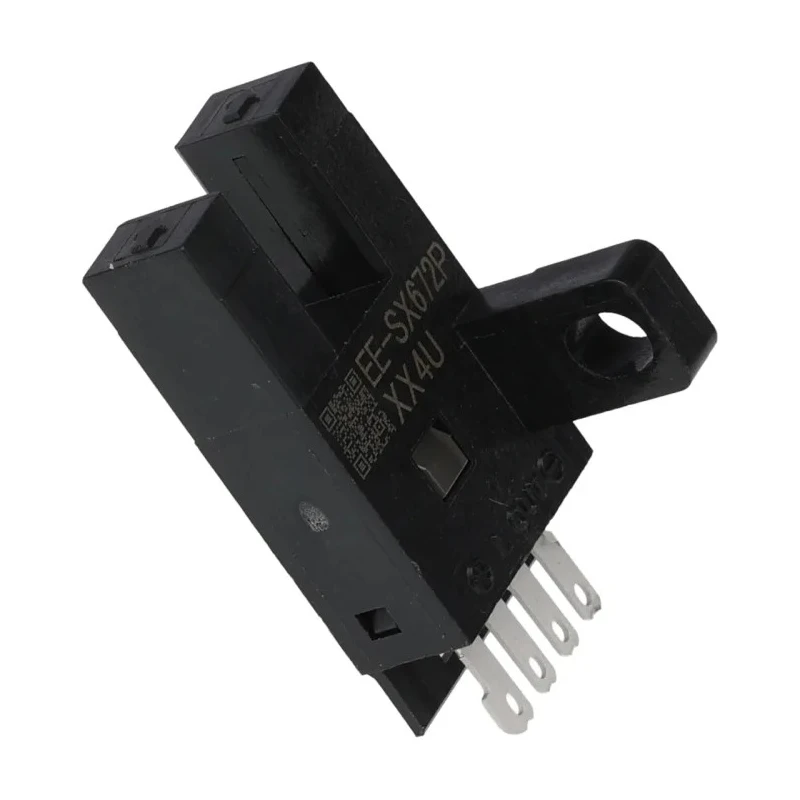

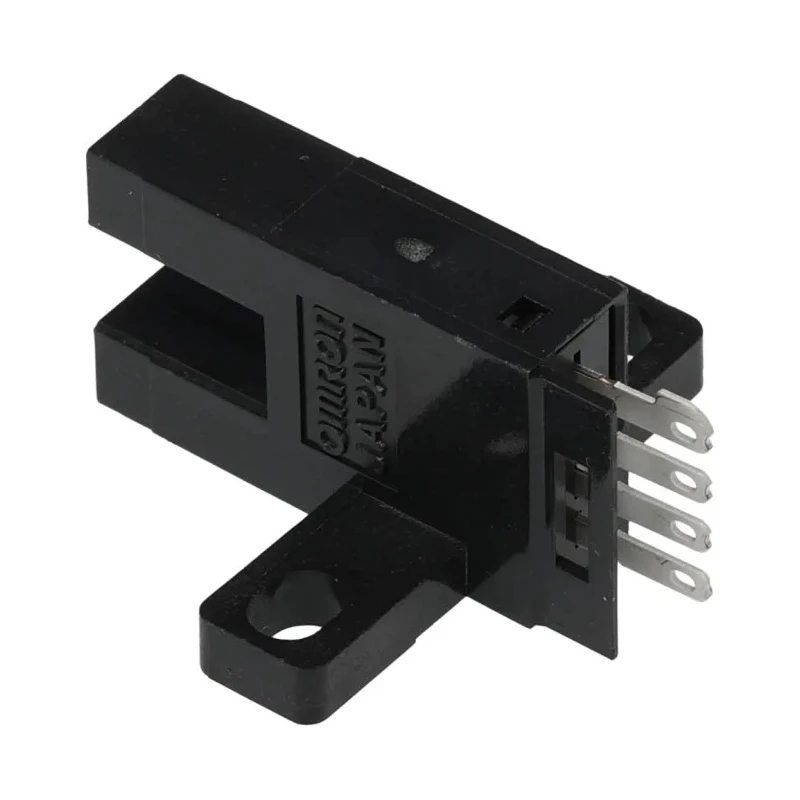

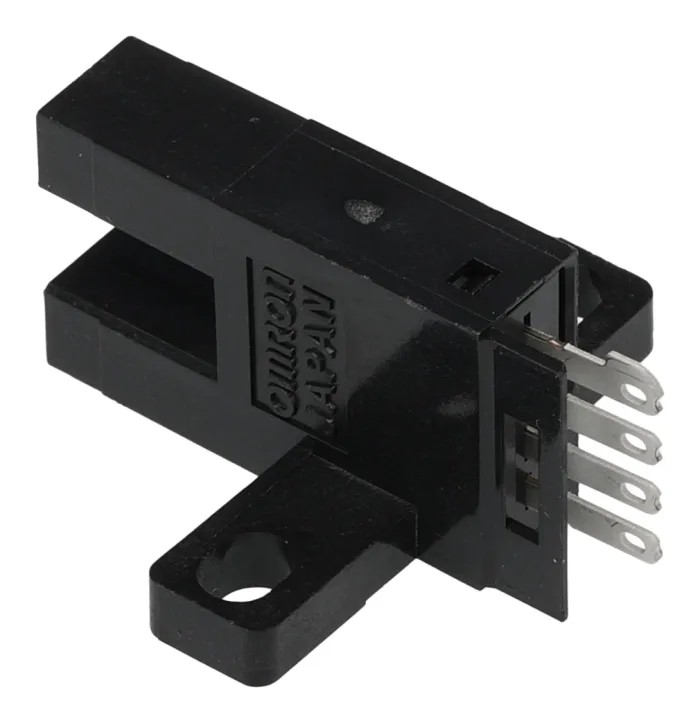

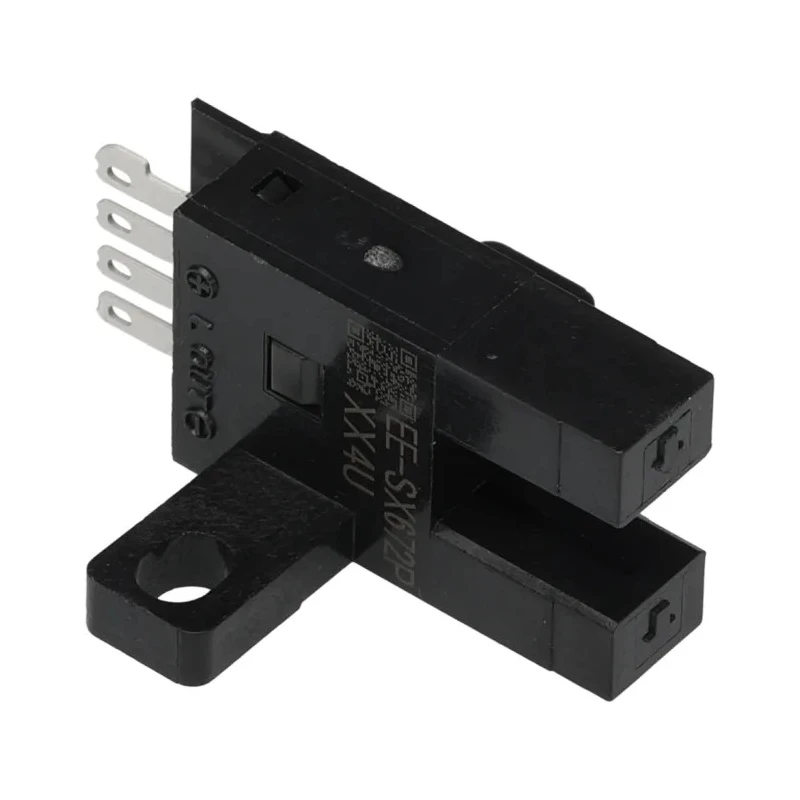

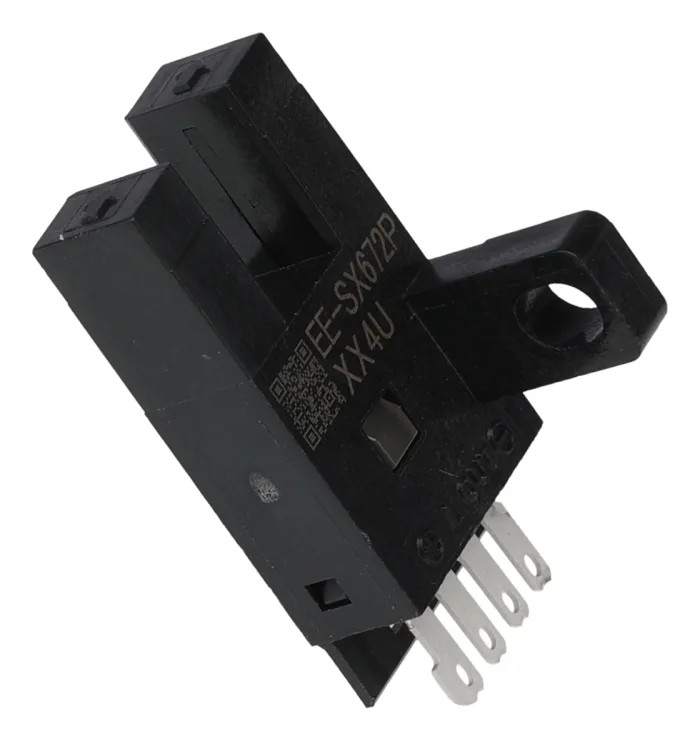

Omron Through Beam Photoelectric Sensor Fork Style 5 mm Detection Range PNP Output IP50 EE-SX672P

Omron EE-SX672P Through Beam Photoelectric Sensor is a fork-style sensor designed for precision object detection in automation and control systems. It provides a detection range of 5 mm and incorporates an infrared light source for enhanced sensing accuracy. The sensor features a PNP output and is rated IP50, suitable for industrial environments requiring dust protection. It operates within a temperature range of -25°C to +55°C and supports a maximum current of 12 mA, making it ideal for low-power applications.

This sensor employs through beam detection technology, ensuring reliable detection performance in packaging machinery, conveyor systems, assembly lines, and sorting applications. The fork style allows for easy alignment and installation using the included 4-pin connector. Designed with Polybutylene Terephthalate housing material, it offers durability and resistance to industrial conditions.

CE certified, the EE-SX672P is compliant with industry standards and ensures safe and effective operation. Its compact base mount design simplifies integration into various automation setups. The sensor is well-suited for non-contact detection tasks requiring fast response times (1 ms) and dependable performance.

Provides precise 5 mm detection range for accurate sensing. Features fork sensor style with through beam detection technology. Utilizes PNP output type for straightforward electrical connectivity. Operates at maximum 24V DC voltage with infrared light source.

IP50 rating protects from dust ingress in industrial environments. Supports temperature range from -25°C to 55°C for versatile use. Max current rating of 12 mA suitable for low-power device control. Equipped with a 4-pin connector for easy installation.

CE certified and designed for reliable industrial performance.

Applications include industrial automation in packaging, conveyor product monitoring, assembly line counting and positioning, and sorting systems requiring precise measurements. Proper installation involves connecting the 4-pin connector and aligning the sensor within the specified detection range to ensure optimized operation.
