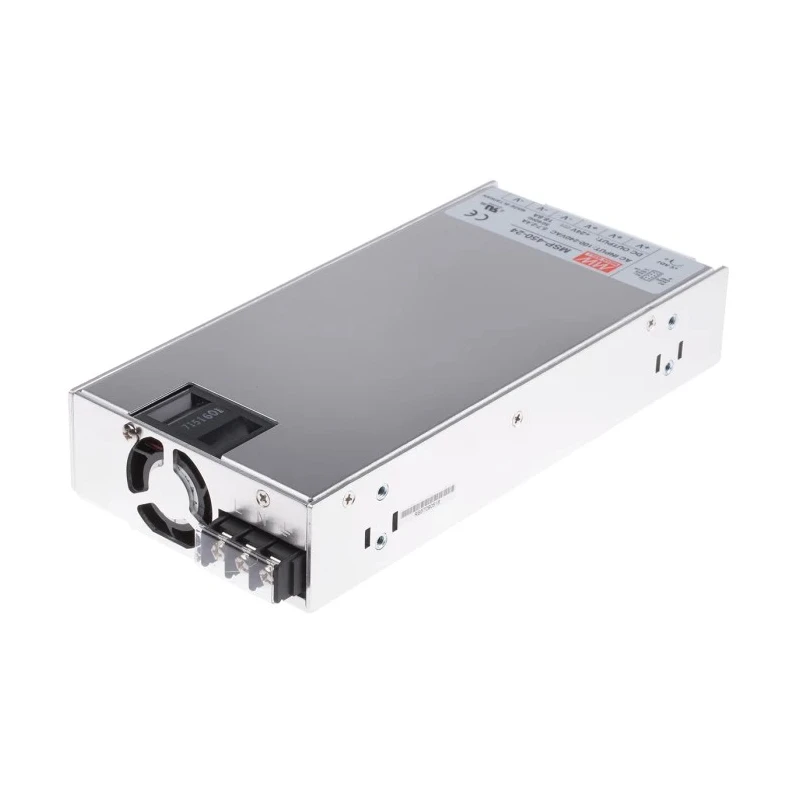

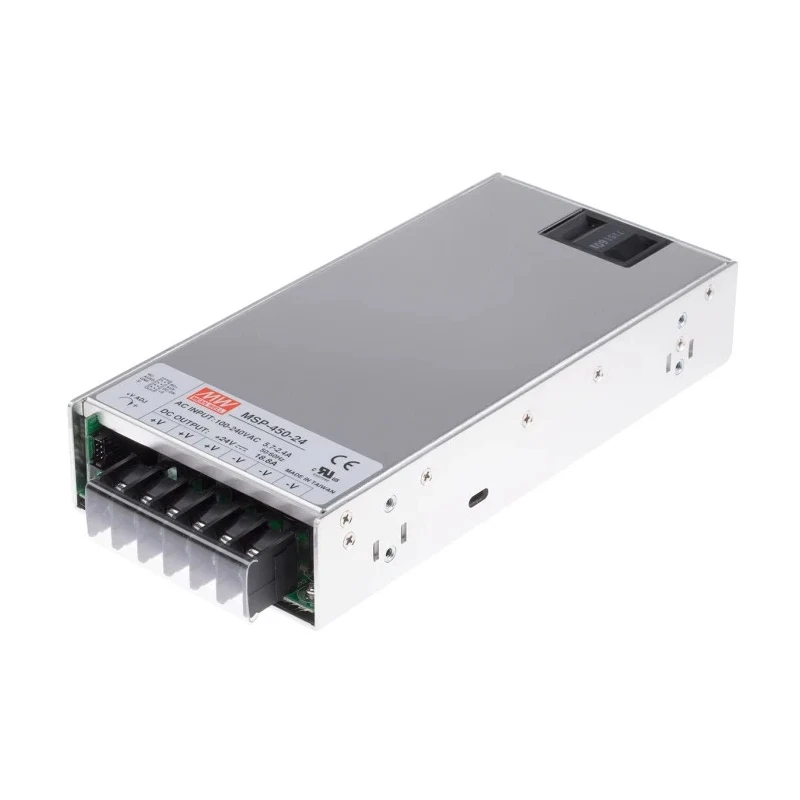

MEAN WELL High-Efficiency MSP-450-24 Medical Grade Switching Power Supply 24V DC 451W MSP-450-24
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Power | 451W |
| Efficiency | 88% |
| Length | 218mm |
| Model | MSP-450-24 |
| Depth | 41mm |
| Gross Weight | 1.2kg |
| Width | 41mm |
| Mount Type | Rack |
| Series | MSP-450 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 18.8A |
| Minimum Input Voltage | 85V ac |
Key Features
- Universal AC input with full range for versatile voltage compatibility.
- High efficiency up to 89.5% ensures reduced energy loss.
- Medically approved per IEC60601-1 for safety compliance.
- Built-in active Power Factor Correction (PFC) with PF>0.95.
- Low no-load power consumption supporting energy saving.
- Forced air cooling via long-life DC fan for reliable thermal management.
- Compact rack-mount design with dimensions 218x41x41 mm.
- Wide operating temperature range from -40°C to 70°C.
Product Description
MEAN WELL MSP-450-24 is a high-performance 450W AC-DC enclosed switching power supply designed primarily for medical and industrial applications demanding reliability and safety. Featuring a 24V DC output voltage and delivering up to 18.8A output current, it supports demanding power requirements with consistent performance.
Equipped with universal full-range AC input spanning 85 to 264V AC and capable of withstanding surge inputs up to 300VAC for 5 seconds, this power supply ensures stable operation under variable power conditions. Its built-in active PFC function provides a power factor greater than 0.95, improving power efficiency and reducing electrical noise.
The MSP-450-24 series is medically approved according to IEC60601-1 standards, making it suitable for use in medical equipment, chemical and biological detection devices, and analytical instrumentation that require low leakage currents and rigorous safety compliance. The power supply's low no-load power consumption of 0.95W contributes to energy efficiency.
This model features forced air cooling through a durable DC fan to maintain optimal operating temperatures from -40°C up to 70°C. Its compact form factor with dimensions 218 mm in length, and 41 mm in width and depth, allows easy integration into rack mount environments.
Universal AC input with full range for broad compatibility. Active PFC improves power quality with power factor >0.95. Medically approved with low leakage current to IEC60601-1. High efficiency reaching 89.5%, reducing operational costs.
Built-in DC fan enables effective forced air cooling. Wide operating temperature range from -40°C to 70°C. Robust safety standard compliance including UL, TUV, CSA, and CCC certifications. Low no-load consumption reduces energy waste.
Compact rack mount design for flexible installation. Suitable for industrial, laboratory, medical, and analytical use cases. Explore more power supply solutions and medical-grade components at EnvMart for your industrial and laboratory needs.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 24V DC output voltage and can deliver up to 18.8A output current, making it suitable for demanding power requirements.
The MSP-450-24 has an efficiency rating of up to 89.5%, which helps to reduce energy loss during operation.
It supports a universal AC input ranging from 85V AC to 264V AC, and can withstand surge inputs up to 300VAC for 5 seconds.
This power supply is medically approved according to IEC60601-1 standards and also complies with UL, TUV, CSA, and CCC certifications.
The operating temperature range for the MSP-450-24 is from -40°C to 70°C, allowing it to function in a variety of environments.
This model has dimensions of 218mm in length, 41mm in width, and 41mm in depth, making it compact for rack mount installation.
The MSP-450-24 features built-in active Power Factor Correction (PFC) with a power factor greater than 0.95, which improves power efficiency and reduces electrical noise.
It employs forced air cooling through a long-life DC fan to maintain optimal operating temperatures during use.
Yes, the MSP-450-24 has a low no-load power consumption of 0.95W, contributing to its energy efficiency.
This power supply is suitable for medical equipment, chemical and biological detection devices, and analytical instrumentation that require low leakage currents and safety compliance.
The gross weight of this power supply is 1.2kg, which is relevant for installation and handling considerations.
The MSP-450-24 is designed for rack mounting, allowing for flexible installation in various setups.
