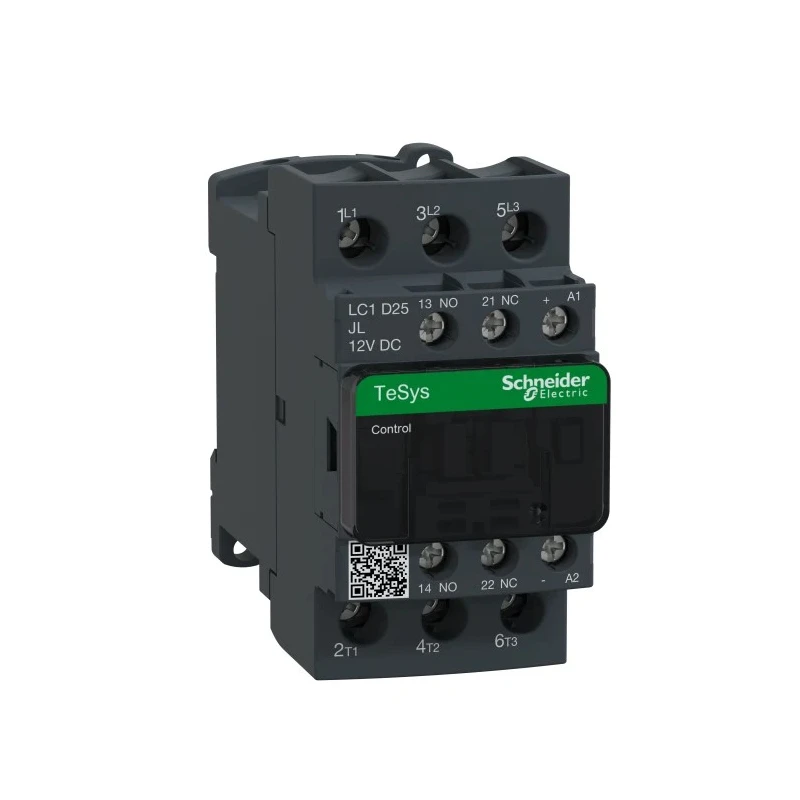

Schneider Electric TeSys LC1D Contactor, 12V DC Coil, 3-Pole, 25A, 3 NO, 600V AC LC1D25JL
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 85mm |
| Model | LC1D25JL |
| Depth | 101mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Contact Voltage | 600V ac |
| Coil Voltage | 12V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Pole and Throw Configuration | 3P |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for resistive loads and motor control applications.
- Supports 3 NO contacts with 3 poles for versatile switching.
- Operates at 600V AC contact voltage with a 12V DC coil.
- DIN rail mountable with robust screw terminals for reliable installation.
- High resistance to shock and vibration ensuring long mechanical and electrical life.
- Suitable for use in motor starters, compressors, pumps, and HVAC systems.
- Meets multiple international standards including IEC, UL, CSA, and EN certifications.
- Auxiliary contacts configured as 1 NO and 1 NC for additional control functionalities.
Product Description
Schneider Electric LC1D25JL TeSys LC1D Contactor features a 12V DC coil with 3 poles and 25A contact current rated at 600V AC. This contactor is engineered to offer high reliability and long service life, combining mechanical robustness with electrical performance tailored for industrial automation, motor control, and resistive loads.
The device supports 3 normally open (NO) contacts, making it suitable for switching in various distribution and motor starter applications such as compressors, pumps, mixers, and HVAC units. Designed for easy installation, it can be mounted on DIN rails or panel mounted with screws and utilizes screw terminal connections for secure wiring.
The TeSys range is compliant with multiple international standards including EN 60947, IEC 60947 series, UL 508, CSA C22.2, and others, ensuring operational safety and global compatibility. It features auxiliary contacts configured as 1 NO and 1 NC for extended control options.
Operating reliably in environments from -5°C to 60°C, this contactor exhibits high resistance to shocks and vibrations, suitable for industrial, laboratory, manufacturing, and commercial environments. The Better World designation highlights environmentally conscious design with a focus on disassembly and sustainability.
Designed for resistive loads and motor control applications. 3 pole, 3 NO contact configuration rated for 25A and 600V AC. 12V DC coil voltage provides compatibility with diverse control systems. DIN rail and panel mount capabilities with screw terminal connections.
Meets IEC, EN, UL, CSA, and various international standards for industrial use. Auxiliary contacts: 1 NO and 1 NC for enhanced control functions. Operating temperature range from -5°C to 60°C for versatile deployment. Robust design with shock and vibration resistance ensuring longevity.
Better World product promoting environmental sustainability.
Schneider Electric contactors like the LC1D25JL are essential in industrial automation, electrical control panels, and motor management systems. They enable reliable switching and protection in demanding operational conditions, critical in sectors like manufacturing, HVAC, water treatment, and agriculture.
Explore our wide range of Schneider Electric Contactors and accessories on EnvMart to support your automation and electrical needs with trusted quality and technical expertise.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 25A.
It operates with a coil voltage of 12V DC.
The maximum contact voltage supported is 600V AC.
This model features 3 poles.
It operates reliably in environments ranging from -5°C to 60°C.
It is designed for DIN rail mounting and can also be panel mounted with screws.
The auxiliary contacts are configured as 1 normally open (NO) and 1 normally closed (NC).
It is suitable for motor control applications, compressors, pumps, and HVAC systems.
The dimensions are 85mm in length, 45mm in width, and 101mm in depth.
It meets multiple international standards including IEC, UL, CSA, and EN certifications.
It utilizes screw terminal connections for secure wiring.
The contactor is designed for disassembly, promoting environmental sustainability.
