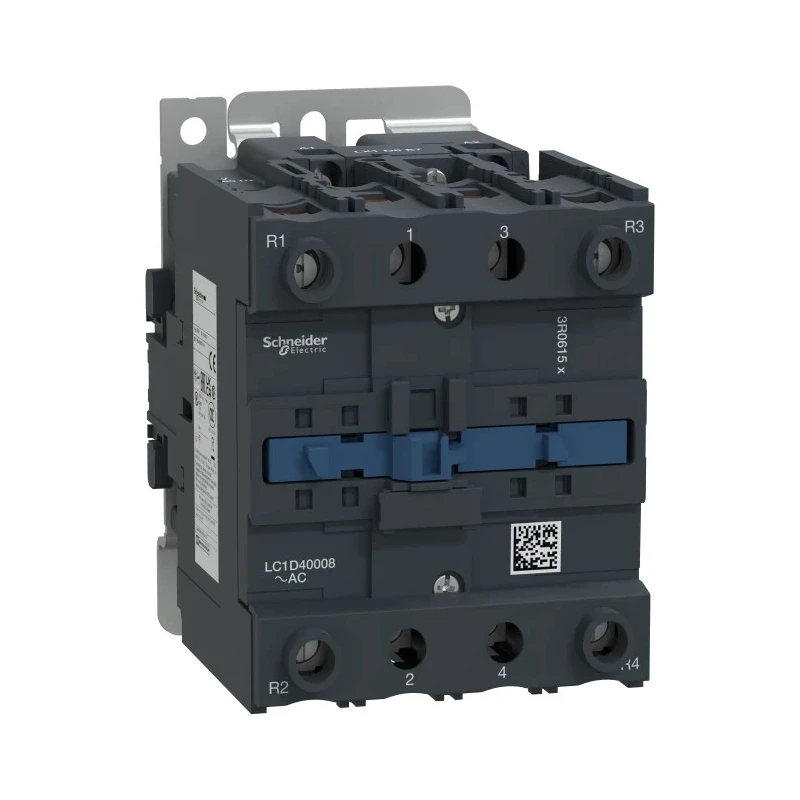

Schneider Electric LC1D Contactor 110V AC Coil 4-Pole 60A 2 NO/2 NC 690V AC LC1D40008G6
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Length | 127mm |
| Model | LC1D40008G6 |
| Depth | 125mm |
| Width | 85mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 60A |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Ideal for motor starters across diverse applications requiring reliable contact control.
- Equipped with screw clamp terminals ensuring secure and finger-safe IP20 connections.
- Designed for DIN rail or panel mounting facilitating flexible installation.
- Certified to multiple international standards including UL, CSA, IEC, CCC, and RoHS compliant.
- Operates effectively within temperature range of -5°C to 60°C.
- Compact dimensions of 127mm length, 85mm width, and 125mm depth ensure space-efficient deployment.
- Recognized as a Better World product designed for disassembly and sustainable use.
- Supports AC-1 and AC-3 utilization categories for resistive and motor control loads.
Product Description
Schneider Electric LC1D40008G6 is a high-quality 4-pole contactor featuring a 110V AC coil, designed for industrial and commercial automation control systems. Rated at 60A for contact current and 690V AC for contact voltage, this contactor offers robust performance for motor starters and resistive load applications.
The device boasts IP20 screw clamp terminals that provide safe and reliable electrical connections with compliance to both North American and international terminal markings. Its mounting flexibility allows installation on DIN rails or direct panel mounts, simplifying integration into various control systems. The contactor measures 127mm in length, 85mm in width, and 125mm in depth, making it suitable for compact setups.
Certified to stringent standards including UL 508, CSA C22.2 No. 14, IEC 60947-4-1 and others, it ensures high safety and reliability under industrial operating conditions. Operating temperature spans from -5°C to 60°C, supporting a wide range of environments.
Schneider Electric's TeSys D series contactors are constructed to deliver long mechanical and electrical life, making them highly dependable in controlling motor operations and various resistive loads. The 2 normally open and 2 normally closed power contacts facilitate versatile control configurations within motor starter panels and other automated systems.
This model also contributes to sustainability goals as a Better World product designed for easy disassembly and environmental compliance with RoHS and REACh directives. 4-pole contactor with 2 NO/2 NC configuration and 60A resistive load rating.
DIN rail or panel mounting compatible with robust screw terminal connections. Comprehensive international approvals for safe industrial application. Wide operating temperature range from -5°C to 60°C for versatile deployment.
Designed to meet AC-1 and AC-3 utilization categories for resistive and motor loads.
This Contactor is widely used in industrial automation, motor control, HVAC systems, manufacturing plants, water treatment facilities, and other commercial electrical control applications. Explore more Schneider Electric automation components and accessories on EnvMart for optimized control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LC1D40008G6 contactor has a contact current rating of 60A.
This contactor operates with a coil voltage of 110V AC.
The dimensions of this model are 127mm in length, 85mm in width, and 125mm in depth.
The maximum contact voltage for the LC1D40008G6 is 690V AC.
It can be mounted on DIN rails or directly on panels, offering flexible installation options.
This contactor operates effectively within a temperature range of -5°C to 60°C.
The LC1D40008G6 features a 4-pole configuration.
This model has a normal state configuration of 2 normally open (NO) and 2 normally closed (NC) contacts.
It is designed for AC-1 and AC-3 utilization categories, suitable for resistive loads and motor control applications.
It is equipped with IP20 screw clamp terminals that provide safe and reliable electrical connections.
This contactor is certified to multiple international standards, including UL, CSA, IEC, CCC, and is RoHS compliant.
The country of origin for this model is India.
