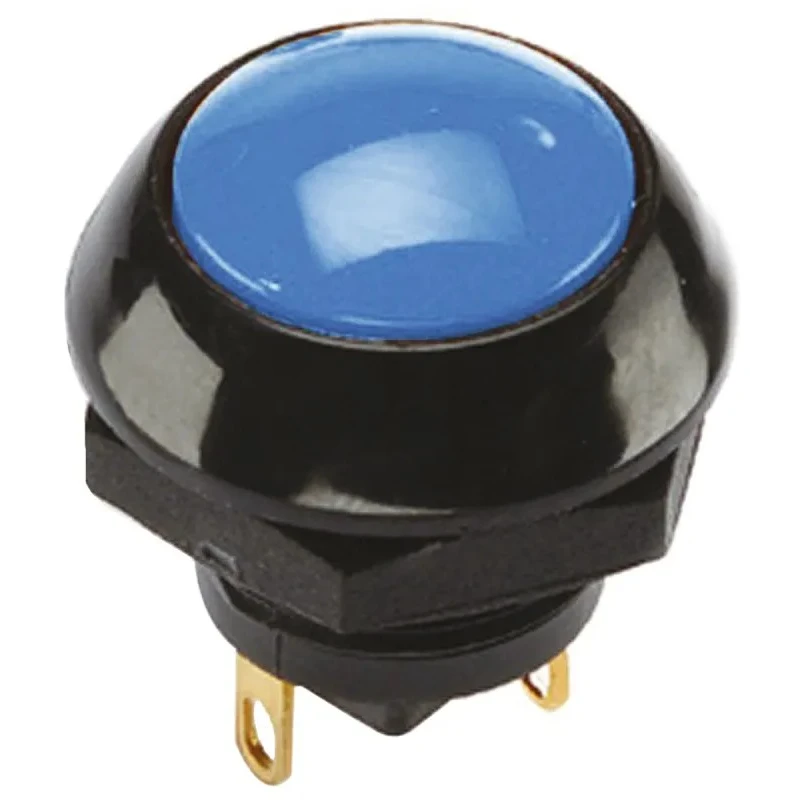

Otto P9 Series Momentary Push Button Switch Panel Mount SPDT Blue LED IP68S 28V dc 115V ac P9-513126W

Name: Otto P9 Series Momentary Push Button Switch Panel Mount SPDT Blue LED IP68S 28V dc 115V ac P9-513126W
Brand: Otto
SKU: 244521
Price: 25.09 USD
Availability: InStock



Category Push Button Switches Brand Otto Condition New

Specifications

Country of Origin	United States
Brand	Otto
Operating Temperature	-55 to +85°C
Model	P9-513126W
IP Rating	IP68S
Mount Type	Panel
Series	P9
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-55°C
Panel Cutout Size	0.5 x 0.5 in
Terminal type	Solder
Standards/Approvals	RoHS
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Blue
Contact DC Voltage	28V dc
Switch Contact Current	4A
Contact AC Voltage	115V ac

Key Features

Designed for momentary operation with On-On switch configuration.
Features a black body with contoured dome style button for ergonomic use.
Supports electrical ratings of 5A at 28 V dc and 4A contact current.
Sealed to IP68S, providing watertight protection up to 1 meter water pressure.
Operates reliably between -55°C and +85°C temperature range.
Equipped with solder terminal type for secure connections.
Includes a threaded body for hex nut mounting with a short panel depth.
Mechanical life rated at approximately one million operations with 25,000 electrical life cycles.

Product Description

Otto P9-513126W is a reliable momentary push button switch designed for panel mounting applications requiring compact size and robust performance. This switch features a 0.5 x 0.5 inch panel cutout, a SPDT contact configuration, and a blue LED illumination to provide clear operational status. Its IP68S rating ensures high resistance to water ingress, making it ideal for use in harsh industrial environments.

The switch body is finished in black and incorporates a contoured dome style push button that can offer either a flush or raised profile. Its threaded casing enables easy hex nut mounting with a short behind-panel depth of approximately 12mm. It is engineered for high durability, with an expected mechanical life of approximately one million operations and an electrical life span of 25,000 cycles.

Designed to operate within a temperature range of -55°C to +85°C, the P9-513126W withstands extreme conditions while maintaining precise switching performance. The switch supports a contact rating of 5 A at 28 V dc and 4 A contact current, suitable for both DC and AC applications up to 115 V ac.

Additional features include solder-type terminals for secure electrical connections, a black bezel, panel seal gasket for enhanced sealing, and compliance with RoHS standards. The switch is well-suited for demanding applications such as instrumentation, computers, industrial control grips, and heavy equipment where rugged and attractive Push Button Switches are necessary.

Sealed to IP68 standards, it provides watertight protection to 1 meter underwater, ensuring reliability in outdoor, industrial, and harsh environmental conditions. The packaged switch includes a mounting nut and panel seal gasket to facilitate installation.

Momentary action push button with robust performance. Panel cutout size of 0.5 x 0.5 inches accommodates tight spaces. Blue LED indicator for clear status visibility. SPDT contact configuration allows for versatile switching needs.

IP68S rated for extreme water resistance and durability. Operating temperature range from -55°C to +85°C. Mechanical life of approximately one million operations ensures long term usage. Suitable for industrial, laboratory, and heavy equipment control applications.
