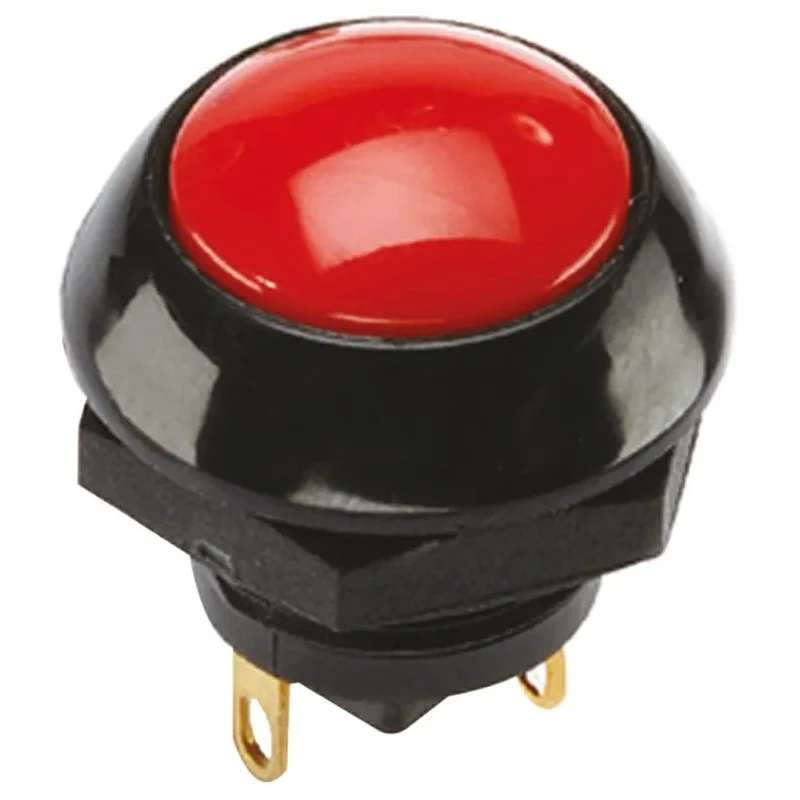

Otto P9 Series Push Button Switch Momentary Panel SPDT Red LED IP68S 28V DC 115V AC P9-513121W

Otto P9-513121W is a Momentary Push Button Switch from the P9 series designed for panel mounting applications. It features a robust black body with a red illuminated LED and a compact 0.5 x 0.5 inch panel cutout size.

This switch offers single-pole double-throw (SPDT) contact configuration with a momentary On-On operation, suitable for precise control applications in automation, industrial machinery, instrumentation, and heavy equipment.

Rated for a contact current of 4 amps and contact voltages of 28 V DC and 115 V AC, it supports demanding electrical requirements. The IP68S rating provides excellent protection against water ingress, enabling submersion to 1 meter, making it ideal for harsh or wet environments.

The actuator is a contoured dome style push button with a low-profile design and threaded case for hex nut mounting. The short behind panel depth of approximately 12mm simplifies installation. Included are the necessary nut and panel seal gasket ensuring secure and sealed mounting.

Operating across a wide temperature range of -55°C to +85°C, this switch maintains reliable performance in extreme conditions. The black bezel and body with a matte finish add to its rugged appearance and durability.

Typical applications include panels, control grips, computers, instruments, heavy equipment, and other settings requiring compact and reliable push button switch solutions. Features a low-profile contoured dome style push button with threaded mount.

Small panel cutout size of 0.5 x 0.5 inches for easy installation. Sealed to IP68S standard for watertight protection up to 1 meter depth. Switch contact current rated at 4A with a contact voltage of 28V DC and 115V AC. Operating temperature ranges from -55°C to +85°C for harsh environments.

Durable construction with black body and matte finish for rugged use. Includes nut and panel seal gasket for secure mounting and sealing. Suitable for panels, control grips, instruments, heavy equipment, and demanding industrial uses.

Complies with RoHS standards ensuring environmental compliance.

This Otto Push Button Switch provides a high-reliability, small form factor, and waterproof design suitable for industrial, laboratory, automation, manufacturing, and heavy-duty control applications. Explore a wide range of Otto switches and related components for your next project on EnvMart.
