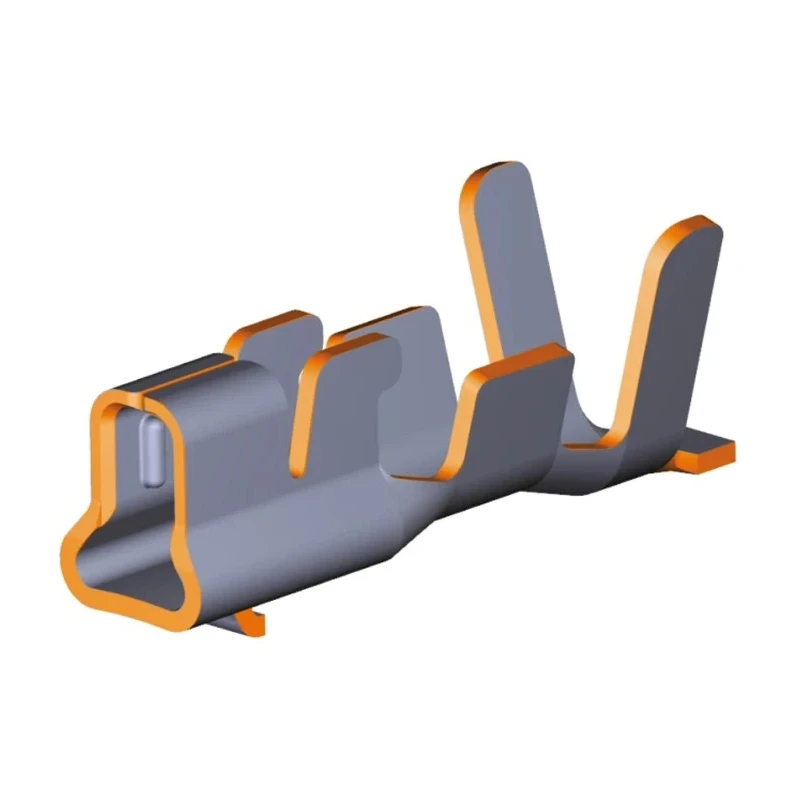

TE Connectivity Economy Power 2.5 Series Female Crimp Terminal 24 AWG Min, 20 AWG Max 1744423-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Economy Power 2.5 Series Female Crimp Terminal 24 AWG Min, 20 AWG Max 1744423-1

Name: TE Connectivity Economy Power 2.5 Series Female Crimp Terminal 24 AWG Min, 20 AWG Max 1744423-1
Brand: TE Connectivity
SKU: 244487
Price: 0.04 USD
Availability: InStock



Category Crimp Contact Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Current	12.3A
Length	2.8mm
Gender	Female
Contact Material	Phosphor Bronze
Series	Economy Power 2.5
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
For Use With	Economy Power 2.5 Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.6mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed with phosphor bronze material and tin plating for durability.
Designed for crimp termination with a length of 2.8mm.
Operates reliably between -55°C to 105°C temperature range.
Compatible with Economy Power 2.5 connector housing providing secure electrical connections.
Features a maximum contact resistance of 20mΩ for efficient conductivity.

Product Description

TE Connectivity 1744423-1 Economy Power 2.5 Series Female Crimp Terminal is engineered for precision and reliability in wire-to-board power connector applications requiring robust current carrying capacity and secure connections.

This female crimp terminal is made from high-quality phosphor bronze with a tin-plated contact area to ensure excellent corrosion resistance and electrical conductivity. It supports wire sizes from 24 AWG (minimum) to 20 AWG (maximum), accommodating a broad range of wiring needs.

Designed for crimp termination, the terminal features a compact length of 2.8mm and withstands operating temperatures ranging from -55°C to 105°C, making it suitable for diverse environments in industrial, electronic, and power electronics sectors.

The terminal provides a rated current of 12.3A and ensures low contact resistance capped at 20 milliohms, promoting energy efficiency in power circuits. It is intended for use with the Economy Power 2.5 connector housing system, enhancing modularity and ease of assembly in power connection applications.

Constructed of phosphor bronze with tin plating for durability and conductivity. Supports wire sizes 24 AWG to 20 AWG for versatile connectivity. Rated for 12.3A current carrying capacity. Operating temperature range from -55°C to 105°C ensures durability under harsh conditions.

Designed with crimp termination type for secure wire connections. Compact length of 2.8mm allows use in space-constrained assemblies. Maximum contact resistance of 20 milliohms enhances electrical efficiency.

This product fits applications in industrial automation, electronic manufacturing, power distribution, and other sectors requiring reliable power connectors. It exemplifies TE Connectivity's commitment to quality and innovation in power connector systems.
