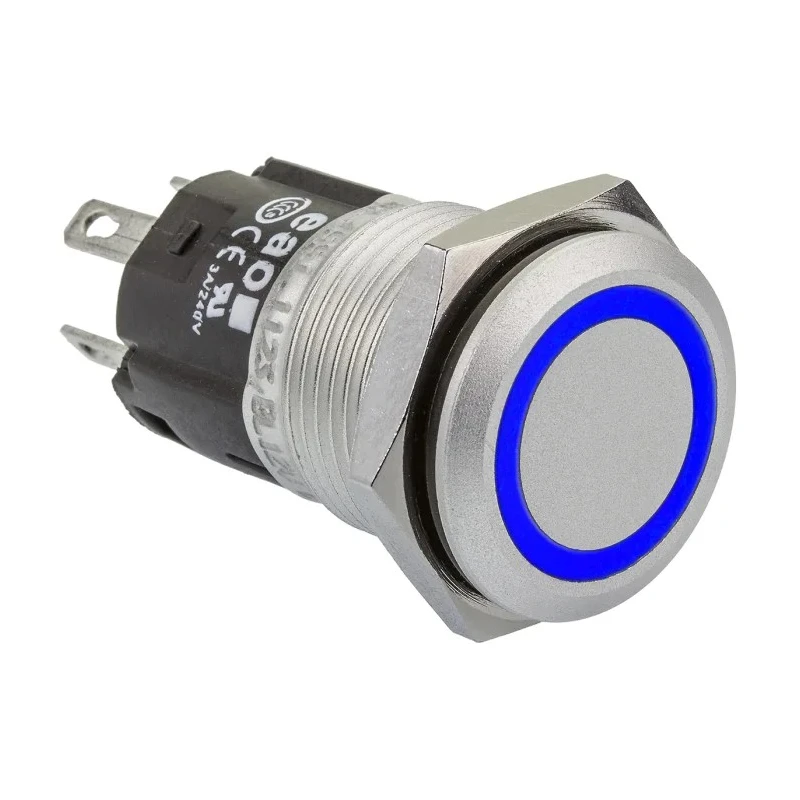

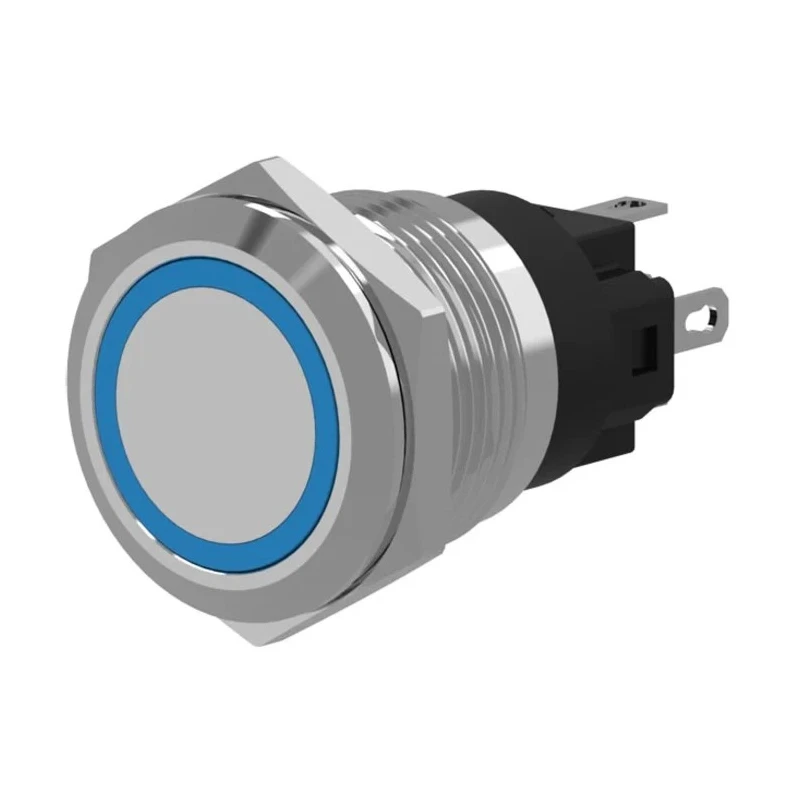

EAO 82 Series Illuminated Momentary Push Button Switch Panel Mount, 16 mm Cutout, SPDT, Blue LED, IP65/IP67, 12 82-4551.1123



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	India
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	16 mm
Standards/Approvals	CCC, cUL, UL, CB
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Natural
Contact DC Voltage	12V dc
Actuator Style	Flat
Switch Contact Current	3A
Contact AC Voltage	12V ac

Key Features

This switch operates momentarily, activating only when pressed.
The blue LED illumination is easily visible for quick identification.
Its SPDT configuration supports control of two circuits simultaneously.
Panel mounting requires a precise 16 mm cutout for installation.
IP65 and IP67 ratings provide dust-tight protection and water immersion resistance.
Built with a flat actuator style for a low-profile operation.
Robust aluminium lens provides impact and corrosion resistance.
Silver alloy contacts ensure reliable conductivity and corrosion resistance.

Product Description

EAO 82-4551.1123 is a high-quality illuminated momentary push button switch designed for panel mounting with a 16 mm cutout. This switch features SPDT contact configuration with a blue LED for visibility under varying lighting conditions. Operating at 12 V DC and supporting a switching current of 3A, it offers reliable control for industrial machinery and equipment.

The device’s construction includes an impact- and corrosion-resistant aluminium lens, coupled with silver alloy contacts to ensure durability and consistent performance. Its flat actuator style provides tactile switching with minimal profile, making it suitable for sleek panel designs.

With an IP65 and IP67 rating, the switch is dust-tight and capable of withstanding immersion in water up to 1 meter deep for 30 minutes, enhancing its suitability for demanding industrial and outdoor applications.

Operating temperature ranges from -30°C to 70°C, making the switch dependable in both cold and hot environments. This product conforms to multiple standards including CCC, cUL, UL, and CB approvals, validating its quality and safety.

The EAO 82 Series illuminated push button switch is widely used in industrial control panels, vending and ticket machines, lifts, hoists, and public transportation systems where reliable, momentary control with excellent visibility is essential.

This momentary push button switch activates only when pressed, ensuring precise short-term control. SPDT contacts enable control of two circuits at once for increased versatility. Durable aluminium lens and silver alloy contacts resist corrosion and impact.

IP65 and IP67 protection ratings safeguard against dust and water ingress. Operating range from -30°C to 70°C supports harsh environment use. The panel mount design requires a 16 mm cutout for installation ease. Blue LED illumination enhances visibility in various lighting conditions.

Suitable for applications like industrial control, public transport, and vending machines. Explore more industrial Push Button Switches and related products from leading brands in the Electronics & Electricals category at EnvMart for optimized control solutions.
