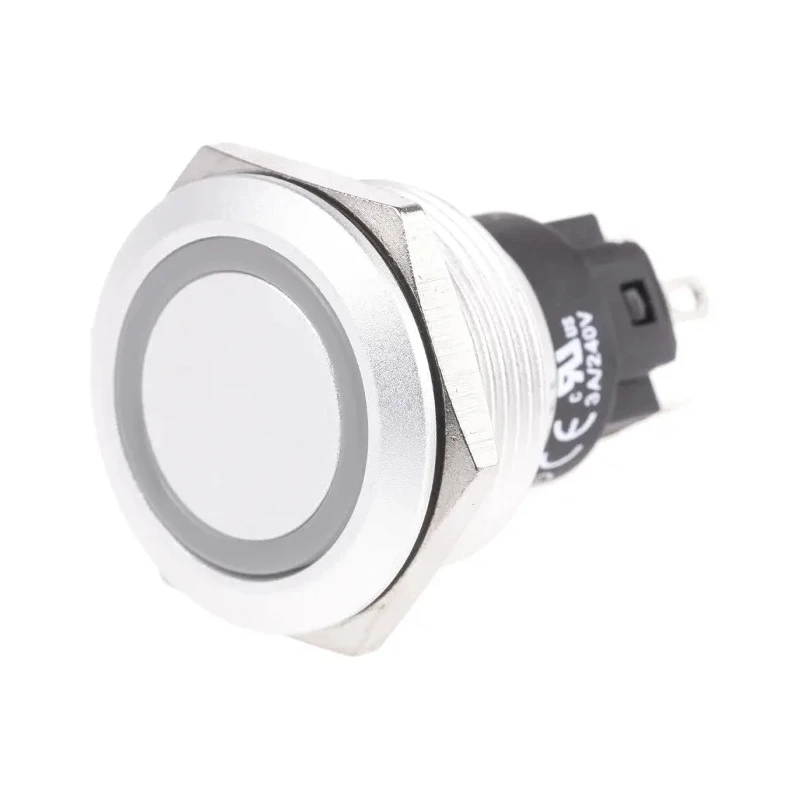

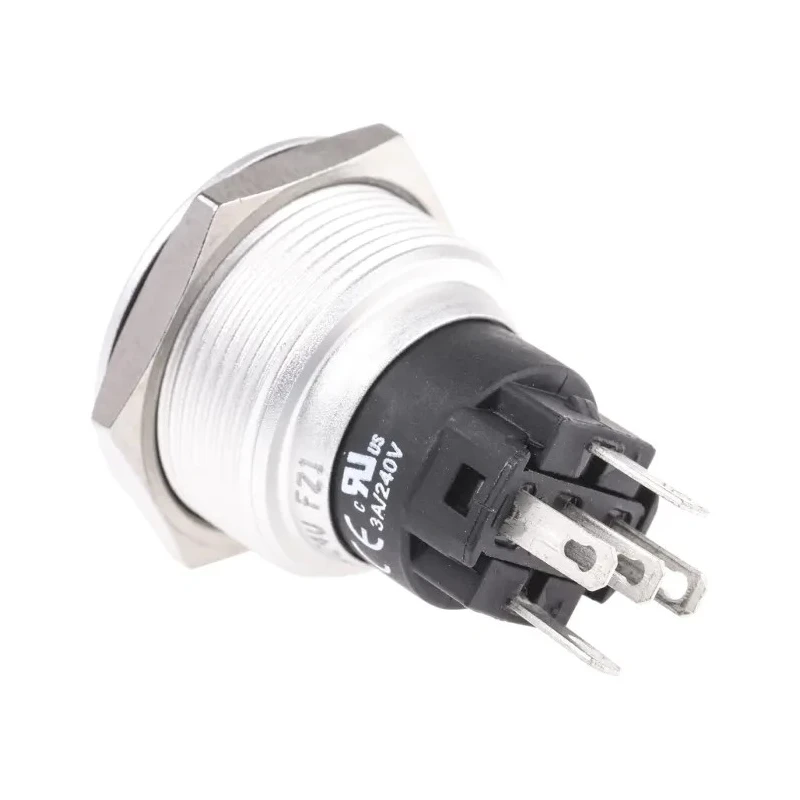

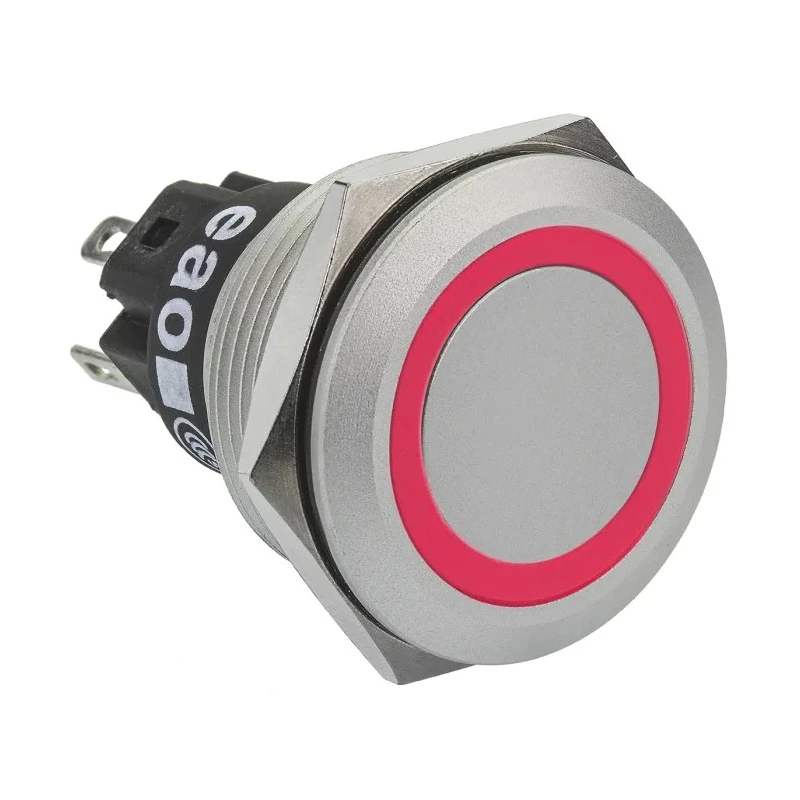

EAO 82 Series Illuminated Momentary Push Button Switch, Panel Mount, 22.3 mm Cutout, SPDT, Red LED, IP65, IP67 82-6551.1114

EAO 82-6551.1114 is an illuminated momentary push button switch designed for panel mounting in industrial automation and medical equipment. The switch features a compact 22.3 mm cutout diameter making it ideal for space-conscious control panels. It is engineered using robust aluminum housing and silver contacts to ensure long-lasting electrical performance and resistance against corrosion and wear.

The single-pole double-throw (SPDT) switch configuration allows control of two circuits, enhancing its versatility. This model integrates a red LED ring illumination visible in any lighting condition, consuming a low current of 10 mA for energy efficiency. Its flat actuator style facilitates easy activation while maintaining a flush mount to prevent accidental engagement.

With protection ratings IP65 and IP67, the switch is dust tight and can withstand immersion in up to 1 meter of water for 30 minutes, suitable for harsh environments and industrial applications. It operates across a temperature range of -30°C up to 70°C, supporting electrical loads up to 240V DC and 250V AC with a maximum contact current of 3A.

The switch’s snap-action contacts enable rapid response to emergency stops or other critical controls, ensuring machine safety and operational reliability. Its lightweight design of approximately 18 grams reduces strain on panel assemblies. Typical applications include industrial automation systems and medical centers where reliable operation and easy visibility of switch status are essential.

The product conforms to international standards including CB, CCC, cUL, and UL certifications. This switch is part of EAO’s 82 series, known for combining aesthetic design with durable metal construction and reliable tactile feedback.

The switch’s IP67 rating ensures dust protection and waterproof performance. Silver contacts provide excellent electrical conductivity and corrosion resistance. Aluminum housing ensures durable operation in industrial environments.

Red LED illumination offers daylight readability and low power consumption. Momentary, SPDT configuration allows control of two circuits simultaneously. Compact 22.3 mm panel cutout fits tight spaces with a slim profile.

Suitable for industrial automation and medical applications requiring reliable switch performance. Explore a wide range of Push Button Switches and industrial automation components in EnvMart’s Electronics & Electricals category to meet your operational requirements.
