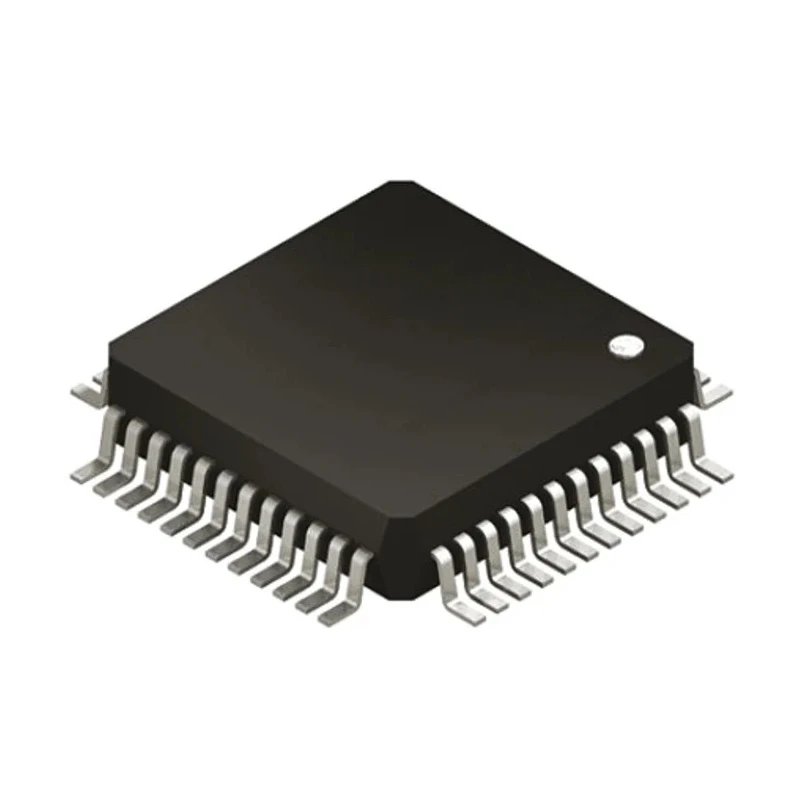

STMicroelectronics STM32F100C8T7B 32 bit ARM Cortex M3 Microcontroller 24 MHz 64kB FLASH 48-Pin LQFP

The STMicroelectronics STM32F100C8T7B is a high-performance 32-bit ARM Cortex-M3 microcontroller designed for industrial and embedded applications. Operating at a clock frequency of 24 MHz, this device offers 64kB of FLASH program memory and 8kB of RAM, packaged in a 48-pin LQFP form factor measuring 7.2 mm by 7.2 mm by 1.45 mm.

Built on the ARM Cortex-M3 RISC architecture, it delivers excellent real-time processing capabilities with the Thumb-2 instruction set for enhanced code density and power efficiency. Its low-voltage operating range from 2 V to 3.6 V, combined with a maximum power dissipation of 363 mW, makes it suitable for power-sensitive designs.

The microcontroller features 12 timers and 10 ADC channels with 12-bit resolution, complemented by 2 high-resolution 12-bit DAC outputs. Its wide operating temperature range from -40°C to 105°C ensures suitability across commercial and industrial environments.

This STM32F1 Value line microcontroller is compatible with the broader STM32 family, providing pin-to-pin and software compatibility for simplified development cycles. It is ideal for applications including motor control, user interfaces, medical handheld devices, industrial automation, and GPS platforms.

ARM Cortex-M3 32-bit RISC core architecture. 24 MHz maximum clock frequency for responsive processing. 64kB FLASH memory with FLASH program type. 8kB RAM capacity for efficient data handling. Low and wide supply voltage range from 2 V to 3.6 V.

12 timers and 10 x 12-bit ADC channels for extensive peripheral control. 2 x 12-bit DACs for accurate analog signals. Compact 48-pin LQFP package dimensions (7.2 x 7.2 x 1.45 mm). Operating temperature from -40°C to 105°C for robust environment tolerance.

Maximum power dissipation of 363mW ensures power efficient operation.

The STM32F100C8T7B is a versatile microcontroller from STMicroelectronics’ STM32F1 series designed to meet the needs of diverse embedded system applications. RosH compliant and manufactured to high standards, it ensures reliability and long-term availability.
