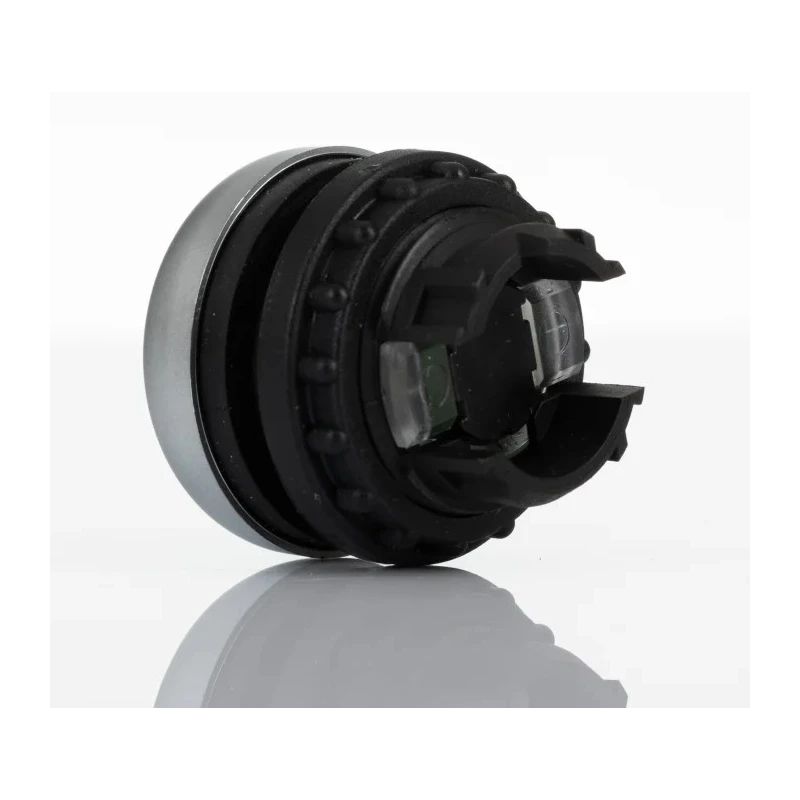

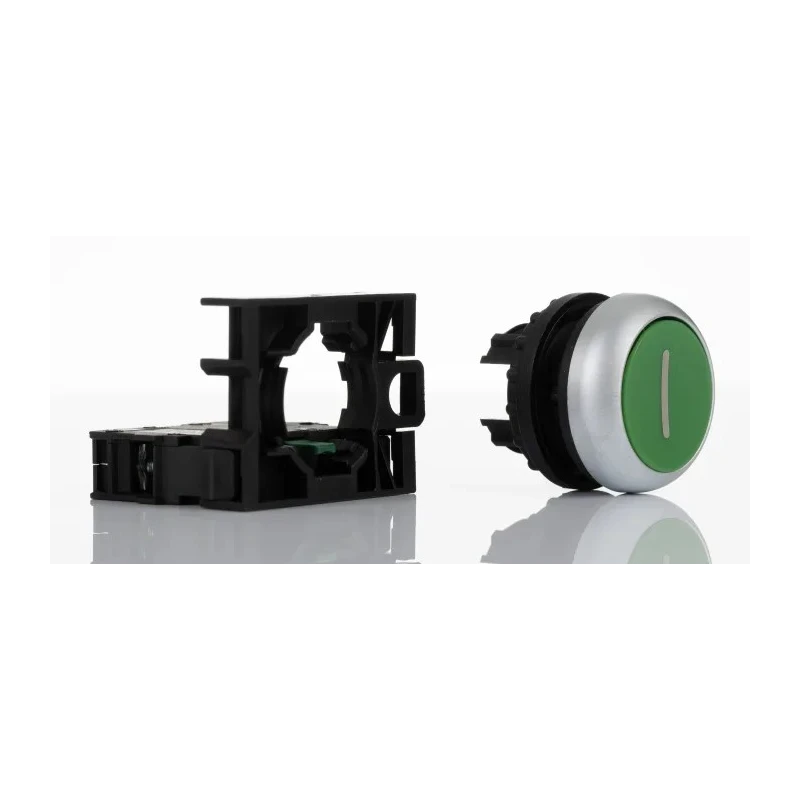

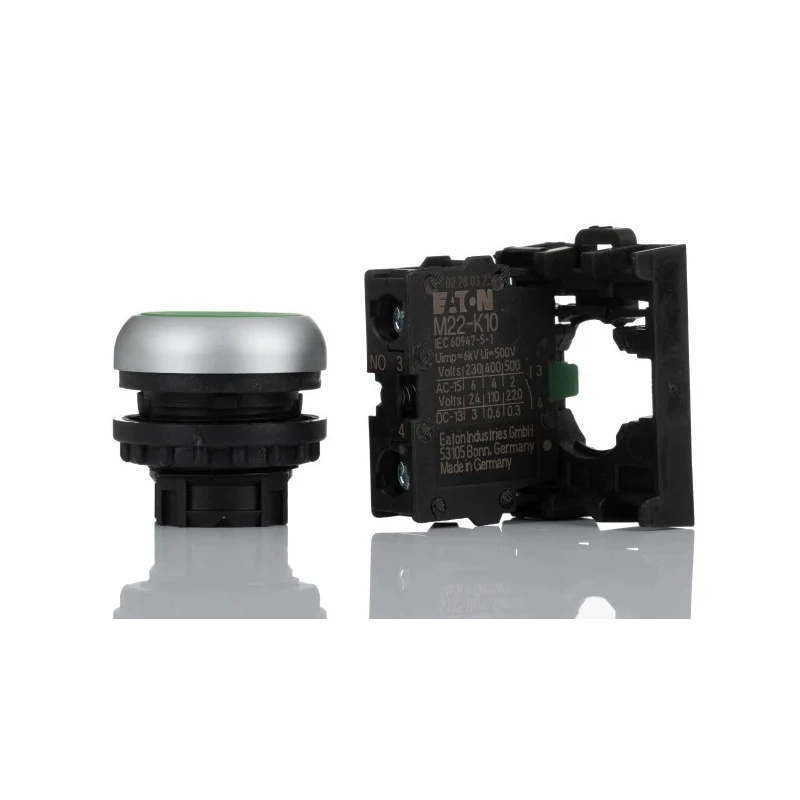

Eaton RMQ Titan M22 Series Push Button Switch, Momentary Actuation, Panel Mount, 22 mm Cutout, SPST 216512 M22-D-G-X1/K10

The Eaton 216512 M22-D-G-X1/K10 RMQ Titan M22 Series Push Button Switch is a momentary, panel-mounted switch designed for demanding industrial automation applications. Featuring a 22 mm cutout, this SPST switch incorporates a green, round actuator that ensures easy visibility and intuitive operation.

Constructed with a robust plastic body, this push button offers excellent resistance to impact and corrosion, making it suitable for use in harsh industrial and commercial environments. The device supports broad operating temperatures from -25°C to +70°C, maintaining reliable performance even under extreme conditions.

The switch is rated IP66, IP67, and IP69, providing superior protection against dust ingress and high-pressure, high-temperature water jets. This rating makes it ideal for hygienic environments requiring frequent washdowns, such as food processing plants and pharmaceutical manufacturing.

With screw terminals, the push button allows for secure and straightforward wiring connections. It supports contact voltages of 220 V DC and 500 V AC, supporting a wide range of industrial control circuits. The mechanical lifespan exceeding one million actuations ensures durability for continuous operational demands.

Compact physical dimensions (30 mm height, 70 mm length, 30 mm width) facilitate space-saving panel designs. The flush mounting style prevents accidental actuation and contributes to a neat, professional control panel layout.

Green round actuator enhances user interface clarity. IP66, IP67, and IP69 protection ratings enable use in harsh and hygienic environments. Screw terminal connections for secure installation. Wide operating temperature range from -25°C to +70°C.

Rated for 220 V DC and 500 V AC contact voltage. Compact dimensions suit tight panel cutouts. Robust plastic construction resists impact and corrosion. Designed for industrial automation, manufacturing, HVAC, and commercial applications.

Set contains one Eaton RMQ Titan push button switch, model 216512 M22-D-G-X1/K10 with momentary actuation, suitable for panel mounting and industrial control systems. This model is compliant with IEC/EN 60947-5, UL 508, CSA C22.2 No. 14-05, and CSA C22.2 No. 94-91 standards, and carries CE marking with UL listing and CSA certification.
