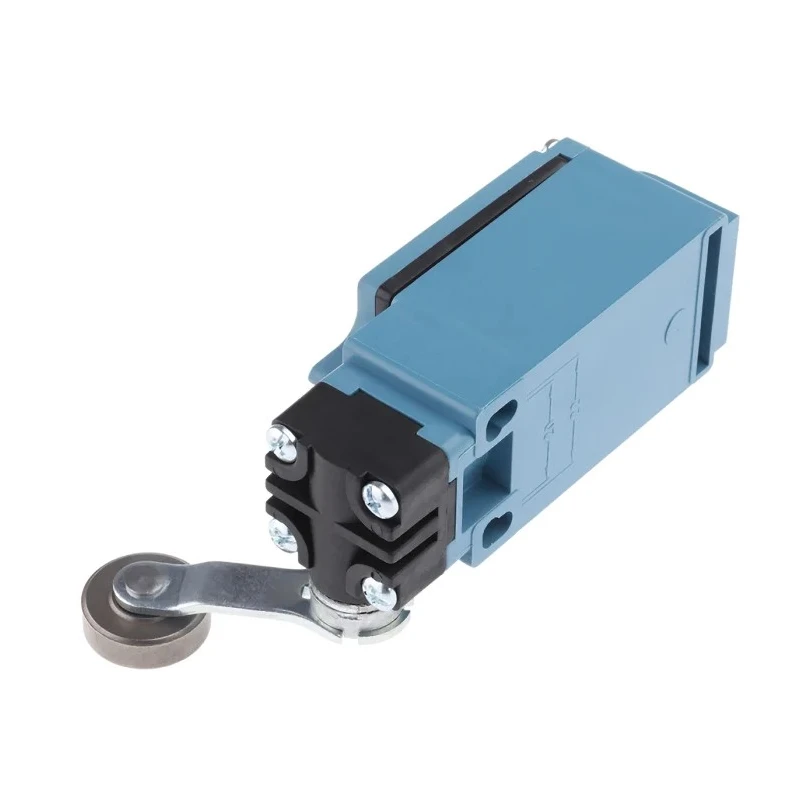

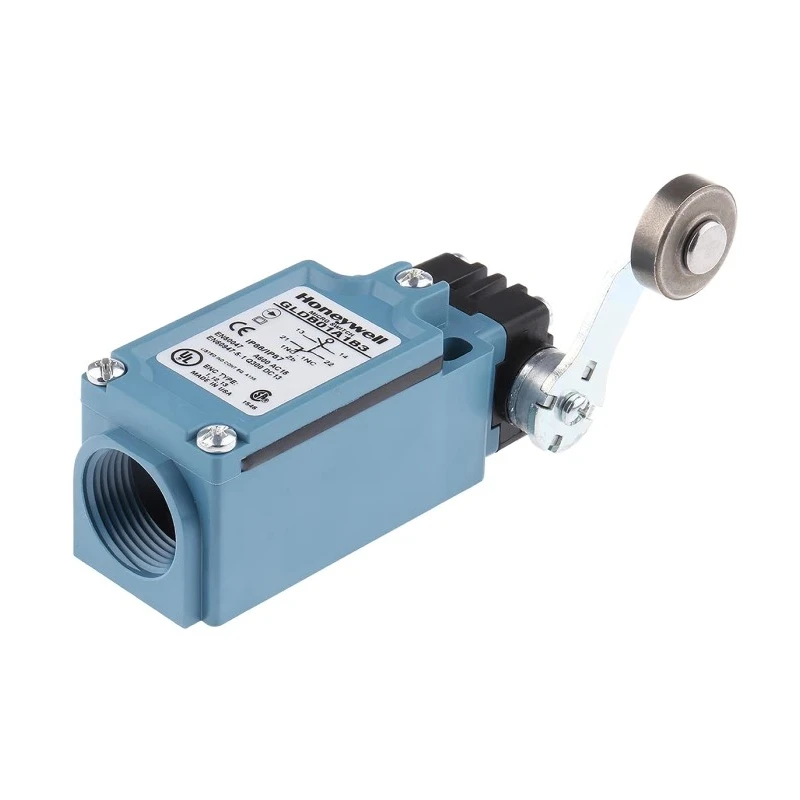

Honeywell Technologies GLD Series Roller Lever Limit Switch, SPDT Contact, IP66, Fibreglass Reinforced GLDB01A1B3

Honeywell Technologies GLDB01A1B3 GLD Series Roller Lever Limit Switch is a robust industrial component designed for reliable position detection and switching in automation and machinery control systems. Equipped with a roller lever actuator, it converts mechanical movement into precise electrical signals with SPDT contact configuration and snap-action contacts for rapid and consistent switching performance. Its IP66 rated enclosure provides full protection against dust ingress and powerful water jets, making it suitable for demanding industrial environments.

The housing is constructed from fibreglass reinforced thermoplastic, offering excellent resistance to mechanical impact and chemical exposure, which ensures long-term durability. Rated for a switching current of 10A and compatible with AC voltages up to 240V and DC voltages up to 250V, this limit switch supports a wide range of electrical control applications. The mechanical life of 10 million cycles minimizes maintenance needs, enhancing operational uptime.

Temperature operating range from -40°C to 85°C allows deployment in diverse climatic and process conditions. The device accepts PG13.5 conduit entry, facilitating standard cable gland connections typical in industrial installations. It carries multiple international approvals including UL, CE, CSA, CCC, EN, IEC, and RoHS compliance, certifying it for global industrial applications.

Suitable for end-of-travel detection on conveyor belts, packaging machinery, and actuators, the switch is also widely used for position sensing on industrial presses, lifts, and as safety interlocks on access panels or guards. Its compact size with dimensions of 68.5 mm length, 30.5 mm width, and 26.35 mm depth allows easy integration into tight mechanical assemblies.

Operates with SPDT snap-action contacts providing reliable switching. Enclosure rated IP66 for protection of internal components. Fibreglass-reinforced thermoplastic housing for chemical and impact resistance. Rated switching current of 10A for robust performance.

Accepts PG13.5 conduit entry for flexible wiring options. Mechanical durability rated at 10 million operating cycles. Wide operating temperature range from -40°C to 85°C. Multiple international safety and quality approvals.

Compact footprint suitable for many industrial control applications. Designed for industrial automation, conveyor systems, presses, and safety interlocks.

This Honeywell Technologies GLD Series limit switch is an essential component for industrial control and automation, ensuring precise and reliable operation in harsh environments. For more industrial Limit Switches and automation components, explore the dedicated categories at EnvMart.
