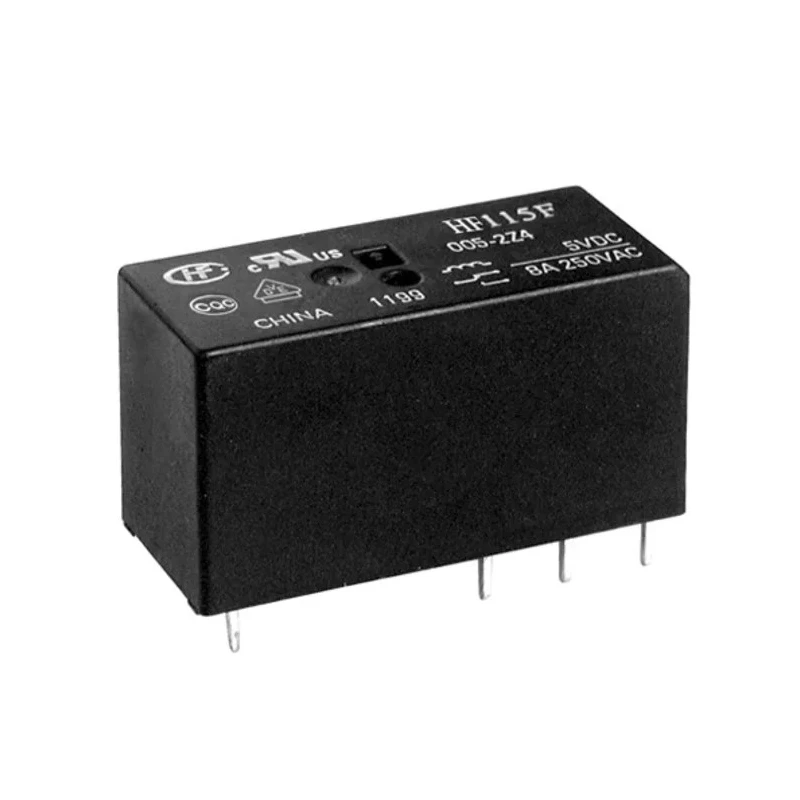

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 16A Switching Current SPST HF115F/012-1HS3BF(610)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.7mm |
| Length | 29mm |
| Model | HF115F/012-1HS3BF(610) |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF115F |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V |
| Coil Power | 400mW |
Key Features
- Features a single pole single throw (SPST) contact configuration for straightforward switching.
- Suitable for mounting on printed circuit boards (PCB) with PCB pin terminal type.
- Operates efficiently within a temperature range of -40°C to 85°C.
- Has a coil resistance of 360 ohms and coil power consumption of 400 milliwatts.
- Equipped with silver alloy contacts ensuring low contact resistance of 100 milliohms.
- Supports switching voltages up to 300V DC and 440V AC.
- Compliance with RoHS standards for environmental safety.
Product Description
Hongfa Europe GMBH HF115F/012-1HS3BF(610) PCB power relay features a 12V DC coil with a robust 16A switching current capacity, making it suitable for various industrial and electronic applications requiring reliable and efficient switching functions.
This single pole single throw (SPST) relay is designed for PCB mounting with PCB pin terminals, enabling easy integration into compact electronic assemblies. It operates effectively within a broad temperature range from -40°C to 85°C, ensuring durability in challenging environments.
The relay incorporates silver alloy contacts that provide low contact resistance of 100 milliohms, contributing to efficient electrical performance and reduced power loss. With coil resistance of 360 ohms and a power consumption of 400 milliwatts, the relay achieves stable actuation with minimal energy demand.
Its switching capability includes voltages of up to 300V DC and 440V AC, accommodating a variety of AC and DC load requirements. The dimensions of 29mm length, 15.7mm height, and 12.7mm width allow for space-saving designs in electronic circuitry.
The relay is compliant with RoHS standards, ensuring environmentally friendly manufacturing practices and material usage. Features a single pole single throw (SPST) contact configuration for straightforward switching. Compact PCB mount design with PCB pin terminals.
Wide operating temperature range from -40°C to 85°C. Silver alloy contacts minimize contact resistance and enhance reliability. Switching currents and voltages suitable for various industrial loads. RoHS certified for environmental compliance.
Durable build suitable for industrial, household appliances, automotive, medical, and telecommunication equipment.
This power relay is widely applied in industries such as industrial machinery, automotive engines, household appliances, telecommunication equipment, and medical devices where reliable electric switching is crucial.
For users seeking dependable PCB power relays with precise electrical characteristics and trustworthy performance, this Hongfa Europe GMBH model HF115F/012-1HS3BF(610) offers an excellent solution. Environmentally compliant and dimensionally compact, this relay supports diverse electronic and industrial automation tasks.
Explore more Power Relay solutions and related electrical components on EnvMart to support your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 16A, making it suitable for various industrial and electronic applications.
The coil voltage for this model is 12V DC, which is necessary for its operation.
The dimensions of this relay are 29mm in length, 15.7mm in height, and 12.7mm in width, allowing for compact integration into electronic assemblies.
It features a single pole single throw (SPST) contact configuration, which allows for straightforward switching.
The maximum operating temperature for this relay is 85°C, ensuring its functionality in various environments.
The contact resistance of the silver alloy contacts is 100 milliohms, contributing to efficient electrical performance.
This relay supports switching voltages up to 300V DC and 440V AC, accommodating diverse load requirements.
The coil resistance is 360 ohms, and the coil power consumption is 400 milliwatts, allowing for stable actuation with minimal energy demand.
Yes, it is compliant with RoHS standards, ensuring environmentally friendly manufacturing practices.
This model is designed for PCB mounting with PCB pin terminals, facilitating easy integration into compact electronic circuits.
This relay is widely applied in industrial machinery, automotive engines, household appliances, telecommunication equipment, and medical devices.
The minimum operating temperature for this relay is -40°C, allowing it to function in extreme conditions.
