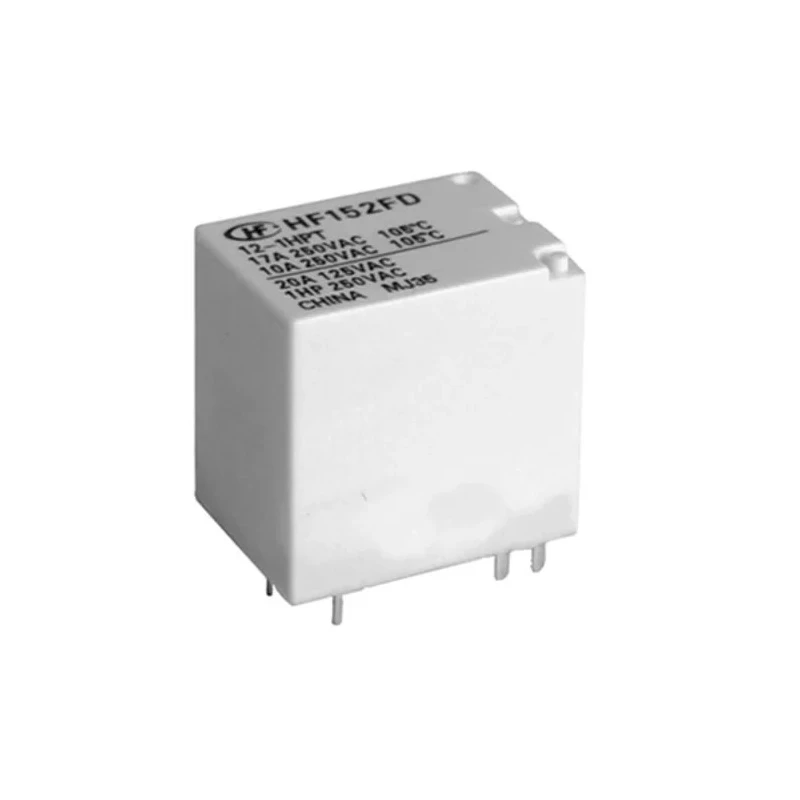

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 17A Switching Current SPDT HF152FD/12-1ZTF(335)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 20.6mm |
| Length | 21.2mm |
| Model | HF152FD/12-1ZTF(335) |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF152FD |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 17A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 400Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 360mW |
Key Features
- Designed for PCB mounting with PCB pin terminals for secure connections.
- Coil resistance is 400Ω ensuring efficient operation.
- Operates reliably between -40°C and 105°C ambient temperatures.
- Switching AC voltage capability up to 400V AC with a switching power of 4.7 kVA.
- Constructed with silver alloy contacts for high electrical endurance and low contact resistance of 100mΩ.
- Low coil power consumption of 360 mW enhances energy efficiency.
- RoHS compliant, environmentally friendly and vibration-resistant relay.
Product Description
Hongfa Europe GMBH HF152FD/12-1ZTF(335) is a high-performance SPDT PCB Power Relay designed for industrial and commercial applications requiring reliable switching at a 12V DC coil voltage and 17A maximum current.
This relay features a single-pole double-throw contact configuration with silver alloy contacts that ensure excellent electrical endurance and low contact resistance, contributing to long operational life and performance consistency.
Its compact size (21.2 mm length, 16 mm width, and 20.6 mm height) and PCB pin terminals facilitate easy PCB mounting and efficient board space usage. The relay operates effectively within a temperature range of -40°C to 105°C, making it suitable for harsh environments.
The coil resistance of 400Ω and low coil power consumption of 360mW ensure energy-efficient operation. It supports switching AC voltages up to 400V AC with a switching power rating of 4.7 kVA, broadening its application scope.
Certified RoHS compliant, this relay is an environmentally friendly choice that offers resistance to vibration and abrasion, thus maintaining reliability in automotive, household appliances, telecommunications, industrial machinery, and control device applications.
Designed for PCB mounting with PCB pin terminals for robust connections. 12V DC coil voltage and 17A switching current for high-power switching. Single Pole Double Throw (SPDT) contact configuration supports versatile switching needs.
Silver alloy contacts provide durability and low contact resistance. Operational temperature range from -40°C to 105°C for diverse environments. Compact dimensions enable efficient use of board space. Low coil power consumption enhances energy efficiency.
RoHS compliant and environmentally friendly.
This Hongfa Power Relay is ideal for use in industrial automation, control systems, telecommunications equipment, household appliances, and automotive electronics, where space-saving and reliable switching components are critical to system performance and longevity.
Explore more high-quality relays and contactors in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 17A.
The coil voltage for this relay is 12V DC.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
It operates effectively within a temperature range of -40°C to 105°C.
This relay is designed for PCB mounting with PCB pin terminals.
The contact material is silver alloy, which provides low contact resistance.
The coil resistance is 400Ω, ensuring efficient operation.
It can switch AC voltages up to 400V AC.
The contact resistance is rated at 100mΩ.
The coil power consumption is low at 360mW, enhancing energy efficiency.
The relay has dimensions of 21.2 mm in length, 16 mm in width, and 20.6 mm in height.
Yes, this relay is RoHS compliant, making it an environmentally friendly choice.
