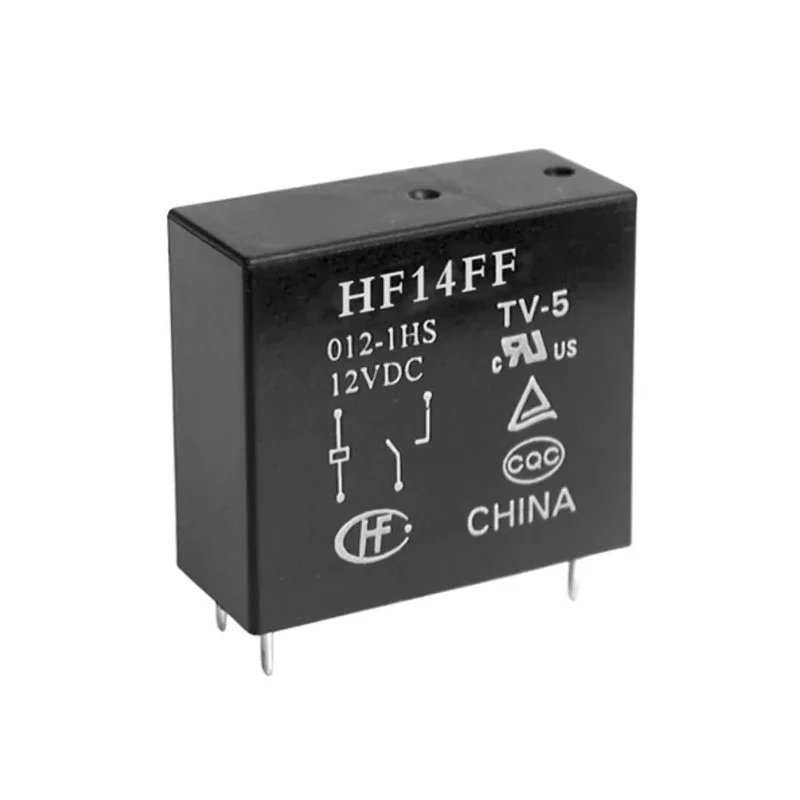

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 10A Switching Current SPDT HF14FF/012-1ZSTF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 26mm |
| Length | 29mm |
| Model | HF14FF/012-1ZSTF |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF14FF |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 275Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V |
| Coil Power | 530mW |
| Outline Dimensions | (29.0 x 13.0 x 26.0) mm |
Key Features
- Designed for PCB mounting with PCB pin terminals.
- Operating temperature range from -40°C to 70°C ensures reliability.
- Switching power of 2.8 kVA suitable for multiple applications.
- Compact dimensions measuring 29mm length, 13mm width, and 26mm height.
- High dielectric strength with 5kV between coil and contacts.
- Silver alloy contact material for superior conductivity and durability.
- Coil resistance is 275Ω with power consumption of 530mW.
- Contact resistance is low at 50mΩ for efficient switching.
Product Description
Hongfa Europe GMBH HF14FF/012-1ZSTF PCB Power Relay is a high-quality power relay designed for reliable switching applications in industrial and electronic circuits.
This relay features a 12V DC coil and supports a switching current up to 10A with SPDT contact configuration, making it suitable for diverse signal conditioning and power relay requirements.
The relay is designed for PCB mounting with sturdy PCB pin terminals, ensuring easy integration into printed circuit boards. Its operating temperature range from -40°C to 70°C allows stable performance in varying industrial environments, including automation, control systems, and electrical equipment.
The device offers a switching power capacity of 2.8 kVA, with switching DC and AC voltages up to 30V DC and 277V AC, respectively. Constructed with silver alloy contacts and featuring a low contact resistance of 50mΩ, it provides efficient and reliable electrical connection and rapid switching response.
The coil resistance of 275Ω and coil power of 530mW contribute to energy-efficient operation while maintaining proper electromagnetic actuation. Its compact dimensions of 29.0 x 13.0 x 26.0 mm facilitate installation in space-constrained applications.
The relay complies with RoHS standards for environmental safety and offers 5kV dielectric strength for isolation between coil and contacts, enhancing reliability and safety. Designed for PCB mounting with PCB pin terminals.
Operating temperature range from -40°C to 70°C ensures reliability. Switching power of 2.8 kVA suitable for multiple applications. Compact dimensions measuring 29mm length, 13mm width, and 26mm height. High dielectric strength with 5kV between coil and contacts.
Silver alloy contact material for superior conductivity and durability. Coil resistance is 275Ω with power consumption of 530mW. Contact resistance is low at 50mΩ for efficient switching. Environmentally friendly design complying with RoHS standards.
Manufactured in China with strict quality control.
This PCB Power Relay is widely used in industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and other power switching applications requiring robust and reliable relay performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 10A.
The relay has compact dimensions measuring 29mm in length, 13mm in width, and 26mm in height.
The coil voltage for this power relay is 12V DC.
It operates within a temperature range from -40°C to 70°C.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The relay has a high dielectric strength of 5kV between the coil and contacts.
The contact resistance is low at 50mΩ, which aids in efficient switching.
It uses PCB pin terminals for mounting on printed circuit boards.
The relay supports a switching power capacity of 2.8 kVA.
The contacts are made of silver alloy, which enhances conductivity.
The coil resistance is 275Ω, contributing to its energy-efficient operation.
Yes, it complies with RoHS standards for environmental safety.
