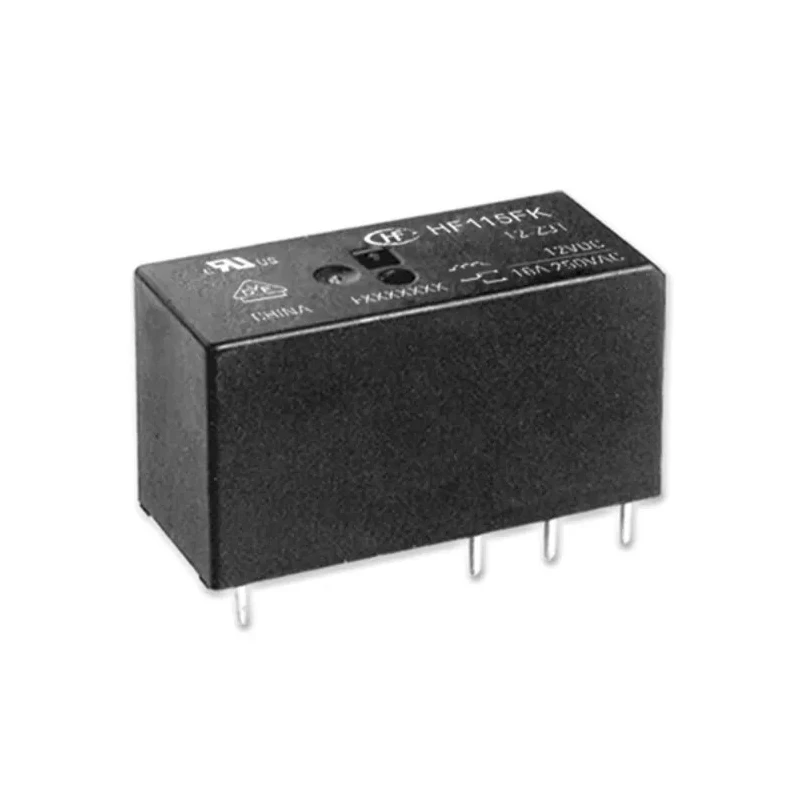

Hongfa Europe GMBH PCB Power Relay 24V dc Coil 16A Switching Current SPST HF115FK/24-H3T(610)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.7mm |
| Length | 29mm |
| Model | HF115FK/24-H3T(610) |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF115FK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
| Outline Dimensions | (29.0 x 12.7 x 15.7) mm |
| Creepage distance | 10mm |
Key Features
- Single pole single throw (SPST) contact configuration ensures reliable switching.
- PCB mount type with PCB pin terminals for easy integration.
- Supports switching AC voltage up to 400V and power of 4kVA.
- Coil resistance of 1.4kΩ with coil power consumption of 400mW provides energy efficiency.
- Wide operating temperature range from -40°C to 85°C for harsh environments.
- Compact dimensions measuring 29 x 12.7 x 15.7 mm with low profile height of 15.7 mm.
- Silver alloy contact material and low contact resistance of 100mΩ ensure durability and low loss.
- 5kV dielectric strength between coil and contacts enhances insulation safety.
Product Description
Hongfa Europe GMBH HF115FK/24-H3T(610) is a high-quality PCB power relay designed for electrical control and automation systems. Featuring a 24V DC coil and a switching current capacity of 16A, this relay provides reliable and efficient switching for various industrial and commercial applications.
Its SPST (single pole single throw) contact configuration and PCB mount type with PCB pin terminals allow seamless integration into printed circuit boards, making it suitable for manufacturing electronics and control equipment.
The relay supports switching AC voltages up to 400V AC and power ratings up to 4kVA. The coil resistance of 1.4kΩ and coil power of 400mW offer energy-efficient operation. It withstands a broad temperature range from -40°C to 85°C, suitable for tough operating environments.
With compact dimensions (29.0 x 12.7 x 15.7 mm) and a low profile height of 15.7 mm, the relay fits tight spaces. Contacts made from silver alloy provide durability and low electrical resistance (100mΩ), while the 5kV dielectric strength between coil and contacts ensures superior insulation and safety. The 10 mm creepage distance supports electrical isolation.
This relay is RoHS compliant, reflecting its environmental-friendly design. Its flux-proof construction and reinforced insulation make it reliable in demanding industrial settings including automation systems, electrical control panels, HVAC controls, manufacturing equipment, and more.
Single pole single throw (SPST) contact configuration. PCB mount with PCB pin terminals for easy installation. 24V DC coil voltage with 1.4kΩ coil resistance. Switching current up to 16A and switching AC voltage 400V AC.
Compact size: 29 x 12.7 x 15.7 mm. Silver alloy contacts with 100mΩ contact resistance. 5kV dielectric strength between coil and contacts. Wide operating temperature range: -40°C to 85°C. RoHS compliant and environmentally friendly.
Explore further Hongfa Europe GMBH Power Relays and related electrical components on EnvMart for your industrial automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 16A.
It operates with a coil voltage of 24V DC and has a coil resistance of 1.4kΩ.
The relay supports switching AC voltages up to 400V AC.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
It can operate within a temperature range of -40°C to 85°C.
This model features a single pole single throw (SPST) contact configuration.
The contacts are made from silver alloy, providing low contact resistance.
The relay has a dielectric strength of 5kV between the coil and contacts.
It is designed for PCB mounting and features PCB pin terminals for easy installation.
The coil power consumption is 400mW, which contributes to its energy efficiency.
Yes, this relay is RoHS compliant, reflecting its environmentally friendly design.
The creepage distance is 10mm, supporting electrical isolation.
