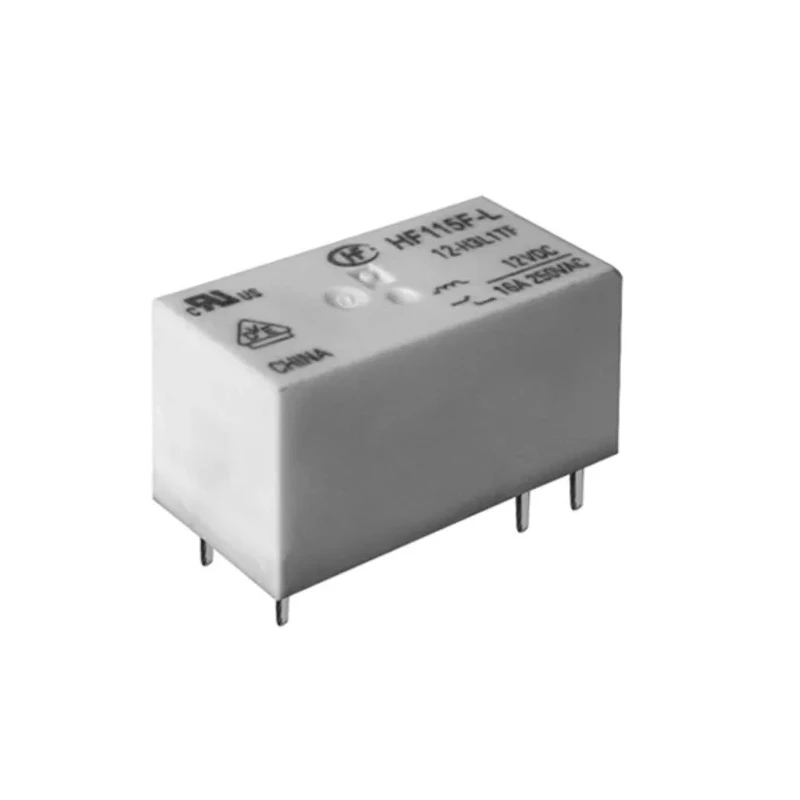

Hongfa Europe GMBH PCB Power Relay 5V DC Coil 20A SPST HF115F-L/5-H3L1TF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.7mm |
| Length | 29mm |
| Model | HF115F-L/5-H3L1TF |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF115F-L |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 62Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 400mW |
Key Features
- This relay has a low mounting height of 15.7mm suitable for PCB mounting.
- It supports switching AC voltage up to 440V and DC voltage up to 300V.
- The relay operates reliably in temperatures ranging from -40°C to 85°C.
- Constructed with silver alloy contacts for reliable conductivity and durability.
- The coil power consumption is low at 400mW ensuring efficient operation.
- It offers high durability with up to 2 million operating cycles.
- Isolation voltage between coil and contact is rated at 5KV AC enhancing safety.
- Designed for use in automotive, household appliances, industrial machinery, medical, and telecom equipment.
Product Description
The Hongfa Europe GMBH HF115F-L/5-H3L1TF PCB Power Relay is a high-quality signal relay designed for PCB mounting with a compact height of 15.7mm and dimensions of 29mm length and 12.7mm width.
This Power Relay features a 5V DC coil voltage and supports a single-pole single-throw (SPST) contact configuration capable of switching currents up to 20A. It can handle AC voltages up to 440V and DC voltages up to 300V, making it suitable for demanding industrial applications.
The relay is built with silver alloy contact material and has a coil resistance of 62Ω and coil power of only 400mW, ensuring low power consumption.
Operating temperature ranges from -40°C to 85°C, allowing reliable performance in varied environmental conditions. Contact resistance is low at 100mΩ guaranteeing efficient switching with minimal losses.
Durability of the relay is rated up to 2 million cycles, providing long service life in industrial, automotive, household appliances, medical equipment, and telecommunications use cases.
This device features an isolation voltage of 5KV AC between coil and contacts, ensuring safe operation and minimizing electromagnetic interference. Low mounting height and compact dimensions enhance PCB integration. Suitable for power switching up to 4KVA in AC applications.
Wide operating temperature range for versatile industrial use. High durability and reliability ensured by robust design and materials. Compliance with RoHS standards supports environmental safety.
It is ideal for use in automotive engines, industrial machinery, household appliances, medical devices, and telecommunication equipment where reliable switching control is critical.
Browse more signal relay products on EnvMart to find compatible components for your industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum switching current of 20A, making it suitable for various applications.
The relay has a length of 29mm, a width of 12.7mm, and a height of 15.7mm, allowing for compact PCB mounting.
It operates with a coil voltage of 5V DC, ensuring compatibility with low voltage control systems.
This relay can switch AC voltages up to 440V and DC voltages up to 300V, suitable for various applications.
The relay operates reliably in temperatures ranging from -40°C to 85°C, making it versatile for different environments.
It features a single-pole single-throw (SPST) contact configuration, ideal for simple on/off switching applications.
The coil power consumption is low at 400mW, which contributes to its efficient operation.
The contacts are made from silver alloy, which ensures reliable conductivity and durability.
It is rated for up to 2 million operating cycles, providing a long service life in various applications.
The isolation voltage is rated at 5KV AC, enhancing safety and minimizing electromagnetic interference.
This model complies with RoHS standards, supporting environmental safety in its applications.
It is designed for PCB mounting, making it suitable for integration into various electronic circuits.
