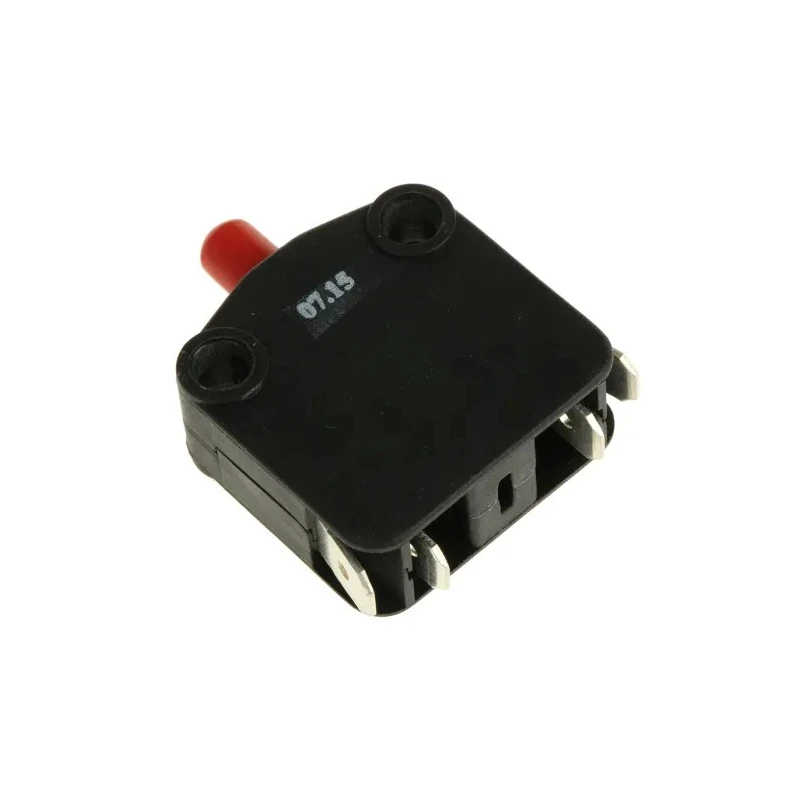

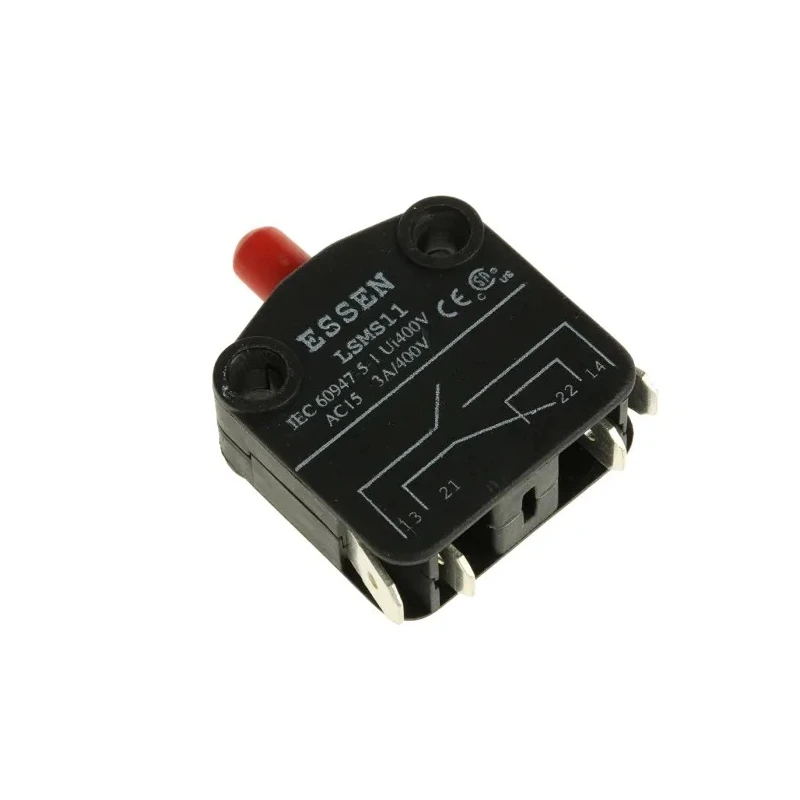

RS PRO Plunger Micro Switch, Quick Connect Terminal, 6A, 400 V AC, SPDT, IP40 804-6231

RS PRO 804-6231 plunger micro switch provides reliable switching performance for electrical circuits with a quick connect terminal interface. This switch features a robust plunger actuator type designed for easy activation and deactivation within compact spaces.

The device is configured as SPDT (Single Pole Double Throw), enabling normally open and normally closed contacts suitable for multiple circuit design requirements. Its silver contacts deliver superior conductivity and resistance to oxidation, ensuring consistent signal integrity over extensive use.

Designed to operate at 6 amps and withstand up to 400 V AC, this micro switch is suitable for a variety of industrial and commercial electrical control applications. The ingress protection rating IP40 protects the switch against solid objects larger than 1 mm, suitable for indoor environments.

Operating temperatures ranging from -20°C to 85°C expand the switch’s usability across various climate conditions. The mechanical life rating of one million cycles assures high durability under frequent switching conditions.

Compact physical dimensions with a width of 13 mm and length of 30 mm allow installation in equipment with space constraints. An operating force of 600 grams offers reliable tactile response, which is essential in control switch applications.

The RS PRO 804-6231 meets international standards including IEC 1058-1, CE, RoHS, and CSA certifications, assuring compliance and safety. This micro switch is ideal for use in industrial automation, electrical control systems, manufacturing equipment, HVAC controls, and other commercial control applications.

Features a plunger actuator type for precise control. SPDT (Single Pole Double Throw) contact configuration for versatile switching. Silver contacts provide high conductivity and oxidation resistance. Rated for 6A current and 400 V AC voltage for reliable operation.

Ingress Protection rating of IP40 suitable for protected environments. Operating temperature range from -20°C up to 85°C for varied applications. Mechanical life rated up to 1,000,000 cycles ensuring durability. Compact dimensions with width of 13 mm and length of 30 mm.

Operating force is 600 grams for tactile feedback and consistency. Explore the RS PRO range and similar Micro Switches on EnvMart for your industrial and electrical control solutions.
