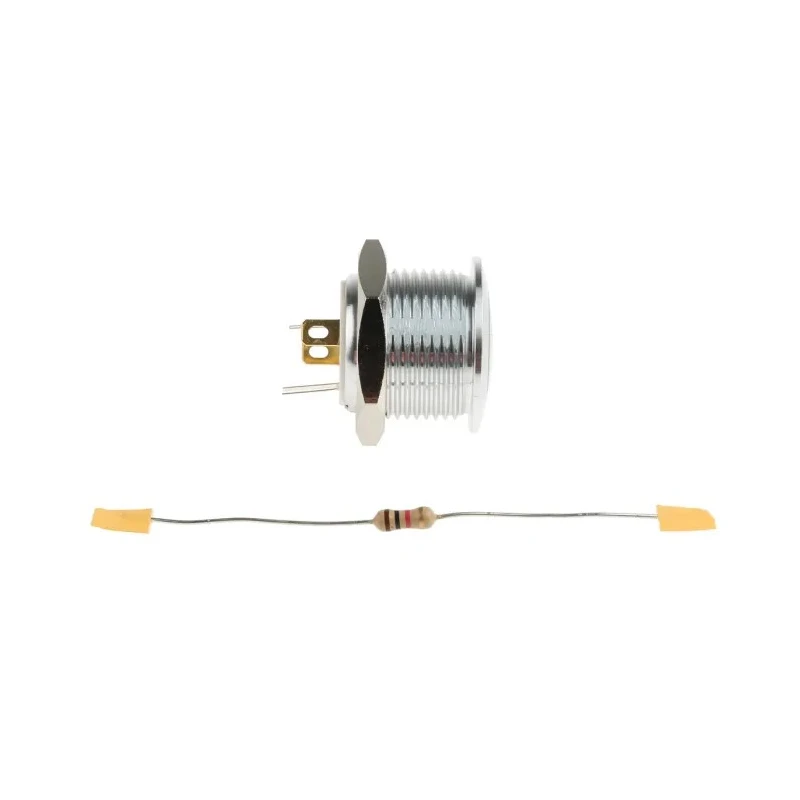

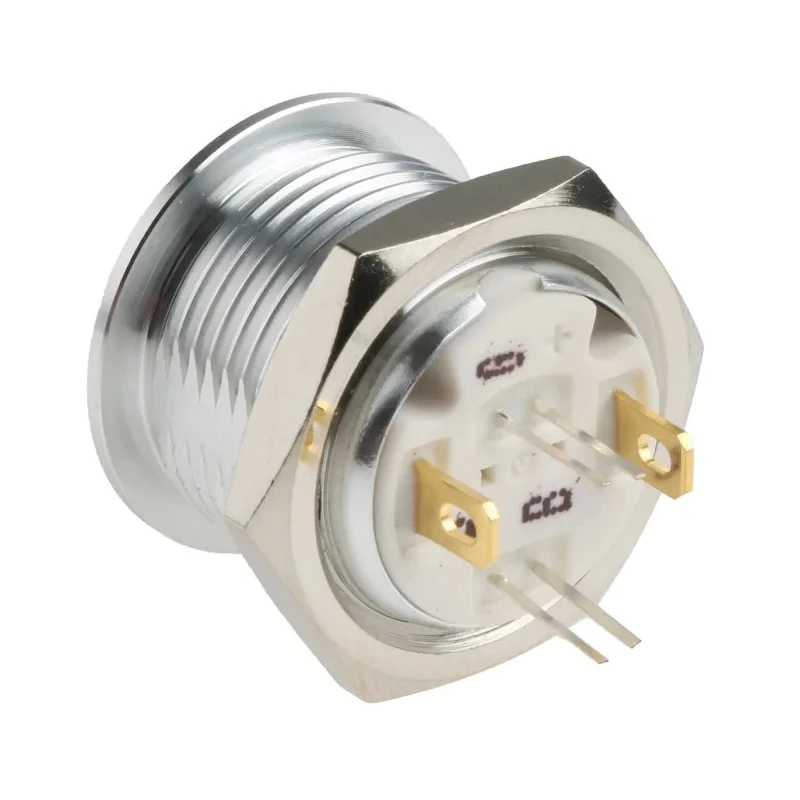

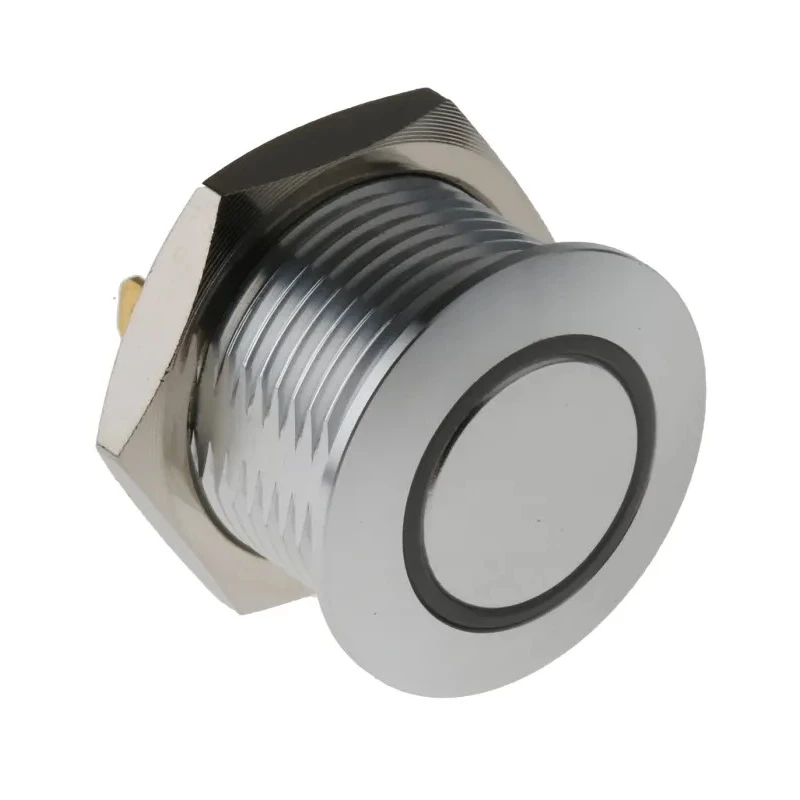

RS PRO Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout SPST RGB LED IP67 36V dc 175-9497
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 175-9497 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V-0, UL 94 V-2 |
| LED Colour | Blue, Green, Red |
| Switch Operation | Momentary |
| Contact DC Voltage | 36V dc |
| Actuator Style | Round |
| Switch Contact Current | 2A |
Key Features
- The switch features an IP67 rating ensuring protection against dust and water ingress.
- It offers a momentary switch operation with a SPST contact configuration.
- Suitable for 36 V dc contact voltage with up to 2 A contact current rating.
- Designed to operate reliably within temperatures from -20°C to 70°C.
- The switch has UL 94 V-0 and UL 94 V-2 safety standards compliance for flame retardancy.
- Mounting is panel type with solder terminal connections.
- Constructed to resist vandalism with high strength metal housing and light weight design.
- Ideal for industrial control instruments, medical equipment, security monitoring, vehicle peripherals, and audiovisual equipment applications.
Product Description
RS PRO 175-9497 Illuminated Momentary Push Button Switch is a specially engineered panel-mounted switch with a 16 mm cutout and SPST contact configuration designed for high reliability in industrial environments. It supports a 36 V dc contact voltage and is suitable for applications requiring momentary switch action and robust illumination options.
The switch's RGB LED provides blue, green, and red light options, enabling clear visual indication. Its IP67 rating renders it dust-tight and protected against water ingress, making it highly suitable for harsh and vandal-prone environments.
Manufactured with corrosion-resistant metal housing, the switch offers excellent heat dissipation and lightweight design characteristics. Compliance with UL 94 V-0 and UL 94 V-2 flame retardancy standards ensures safety and durability under demanding operating conditions. It operates efficiently over a wide temperature range, from -20°C to 70°C.
The mount type is panel, and it features solder terminal connections for reliable electrical contacts. Designed for industrial control instruments, medical machinery, security systems, vehicle peripherals, and audiovisual applications, this push button switch is ideal for equipment requiring rugged and visually distinct control inputs.
The switch features an IP67 rating for dust and water resistance. It provides momentary operation with a SPST contact configuration. Mounts securely on panels with a 16 mm cutout. Multi-color RGB LED illumination options enhance visibility.
Ensures compliance with UL 94 flame retardant standards. Operates reliably between -20°C to 70°C ambient temperatures. Metal housing offers high strength and corrosion resistance. Ideal for industrial, medical, security, and vehicle peripheral applications.
Designed for vandal resistance and long service life.
This product is part of the RS PRO range, trusted for quality and performance in electrical and automation systems. Explore more reliable Push Button Switches and components at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a SPST (Single Pole Single Throw) contact configuration, allowing for momentary switch operation.
The maximum operating temperature for this switch is 70°C, making it suitable for a variety of environments.
It has an IP67 rating, which means it is dust-tight and protected against water ingress, suitable for harsh environments.
The switch requires a panel cutout size of 16 mm for proper installation.
It supports a contact voltage of 36V dc and a contact current rating of up to 2A.
The switch features RGB LED illumination options, providing blue, green, and red light for visual indication.
This switch complies with UL 94 V-0 and UL 94 V-2 safety standards for flame retardancy.
The minimum operating temperature for this model is -20°C, allowing it to function in colder environments.
It uses solder terminal connections for reliable electrical contacts.
The switch is constructed with corrosion-resistant metal housing, providing strength and durability.
It is suitable for industrial control instruments, medical equipment, security monitoring, vehicle peripherals, and audiovisual equipment.
The high strength metal housing is designed to resist vandalism, making it suitable for use in public or harsh environments.
