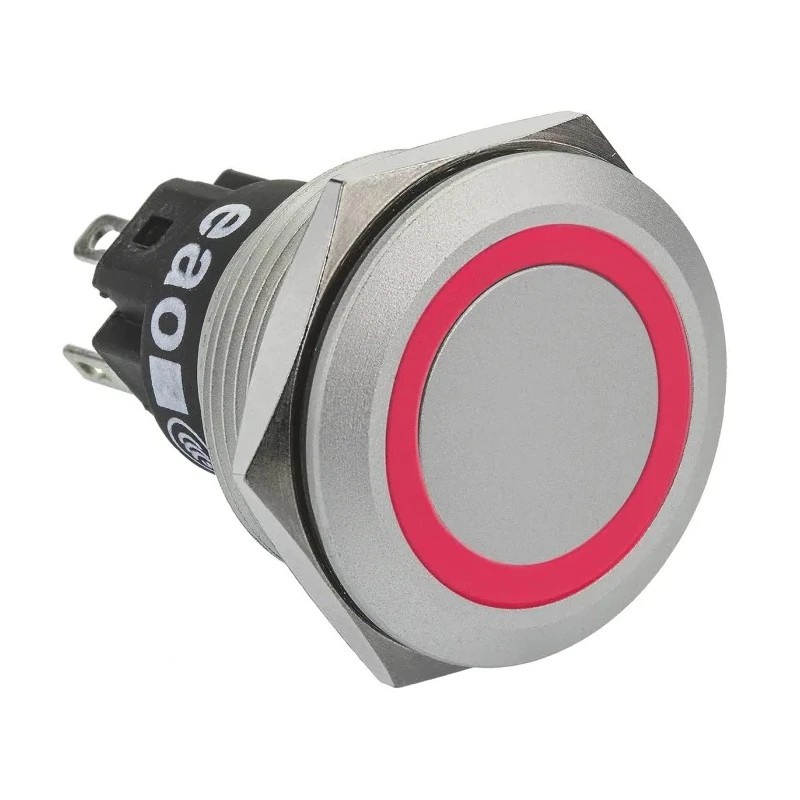

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.3 mm Cutout, SPDT, Red LED, IP65 82-6551.1113



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	China
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	NC, NO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Natural
Contact DC Voltage	240V
Actuator Style	Flat
Switch Contact Current	3A
Contact AC Voltage	250V ac

Key Features

The switch features a natural-colored flat actuator for safe and easy operation.
Illuminated with a red LED ring indicating active status for easy monitoring.
Panel mount with a compact 22.3 mm cutout size to maximize panel space.
Rated for contact AC voltage 250 V and DC voltage 240 V with a 3A contact current capacity.
Designed to operate reliably between -30°C to 70°C temperature range.
Robust aluminium lens material ensures durability against corrosion and impact.
IP65 and IP67 protection ratings assure dust-tightness and water resistance including immersion protection.
Complies with CB, CCC, cUL, and UL standards for safety and quality assurance.

Product Description

EAO 82-6551.1113 is a high-quality illuminated push button switch designed for panel mounting with a 22.3 mm cutout diameter. It features a momentary switch operation with SPDT contact configuration and illumination via a red LED ring. The natural-colored flat actuator provides an ergonomic and flush mounting design that reduces accidental activation, enhancing safety in operation.

Constructed with a corrosion-resistant aluminium lens, this switch is built to endure harsh environmental conditions. The IP65 and IP67 ratings guarantee protection against dust ingress and immersion in water up to 1 meter for 30 minutes, making the device suitable for tough industrial and commercial environments.

Its operation temperature range from -30°C to 70°C allows versatility across various climate conditions. The switch supports AC voltage of 250 V and DC voltage of 240 V, with a contact current of 3A, suitable for controlling circuits in industrial equipment, domestic appliances, lifts, and access control operations.

The energy-efficient red LED illuminated ring indicates status clearly with a low consumption of 14 mA. Solder termination ensures secure and reliable electrical connections, making installation straightforward and long lasting.

Certified under international standards including CB, CCC, cUL, and UL, this switch meets stringent safety and quality requirements. Its compact size and robust design make it suitable for industrial automation, control panels, building management, and safety systems.

The switch features a natural-colored flat actuator for safe and easy operation. Illuminated with a red LED ring indicating active status for easy monitoring. Panel mount with a compact 22.3 mm cutout size to maximize panel space.

Rated for contact AC voltage 250 V and DC voltage 240 V with a 3A contact current capacity. Designed to operate reliably between -30°C to 70°C temperature range. Robust aluminium lens material ensures durability against corrosion and impact.

IP65 and IP67 protection ratings assure dust-tightness and water resistance including immersion protection. Complies with CB, CCC, cUL, and UL standards for safety and quality assurance. Energy-efficient with a low operating current of 14 mA for illumination.

Ideal for use in industrial machinery stop functions, domestic appliances, lifts, and access control systems. Explore EnvMart for a wide range of industrial Push Button Switches and related electrical components from trusted brands.
