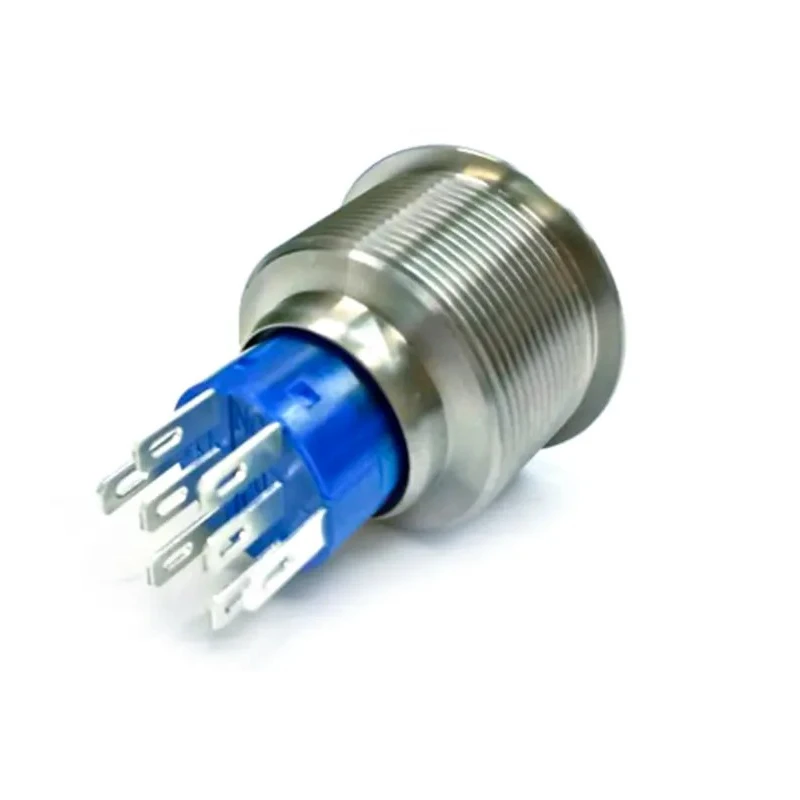

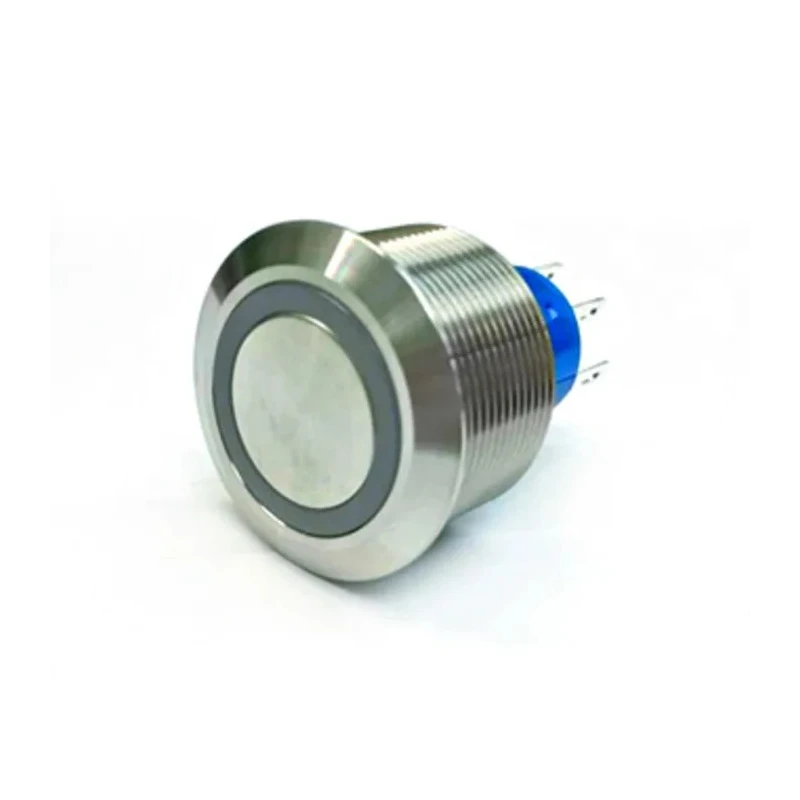

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 25.2 mm Cutout, DPDT, White LED, IP67, 250 V AC 250 V 175-9263

RS PRO 175-9263 Illuminated Momentary Push Button Switch is a premium quality panel-mounted switch engineered to provide reliable control and indication functions in demanding industrial and commercial applications. Featuring a 25.2 mm cutout, this switch offers a double pole double throw (DPDT) contact configuration that supports simultaneous operation of separate circuits.

Designed for momentary operation, the switch ensures momentary electrical contact only when actuated, making it ideal for applications requiring instant on/off control. The flat actuator style allows for ergonomic interaction and ease of use.

Illumination is provided through a white LED embedded in the switch, offering clear visual feedback on switch status. With an IP67 rating, the switch is fully protected against dust ingress and capable of withstanding immersion in water, qualifying it for harsh environments and outdoor installation.

Operating voltage ratings up to 250 V AC and 250 V DC ensure compatibility with diverse electrical systems. The switch supports contact currents ranging from 3 A to 5 A, suitable for control and signal circuits.

The component is manufactured with a focus on durability, featuring corrosion-resistant metal and compliant materials to meet cULus Recognized standards and UL 94 V-0 and V-2 flame retardant requirements, ensuring safety and long service life.

Typical use cases include industrial control instruments, medical devices, security monitoring equipment, vehicle peripherals, and audio-visual equipment, where reliability and precision are essential.

Designed for momentary switch operation ensuring temporary contact. Equipped with a flat actuator style for smooth interaction. IP67 rated to provide dust tight and water-resistant performance. Features double pole double throw (DPDT) contact configuration for versatile wiring.

Constructed for panel mounting with a precise 25.2 mm cutout size. Incorporates a white LED for clear visual indication. Rated to handle contact voltages up to 250 V AC/DC. Suitable for operating temperatures ranging from -20°C to 70°C.

Current rating suitable for switch contact current of 3 A to 5 A. Complies with safety standards including cULus Recognized and UL 94 V-0, V-2 certifications.

This illuminated Push Button Switch is ideal for industrial automation, control panel equipment, and other applications demanding reliable and rugged switching solutions. Explore more industrial-grade switches and electrical components in the RS PRO range on EnvMart.
