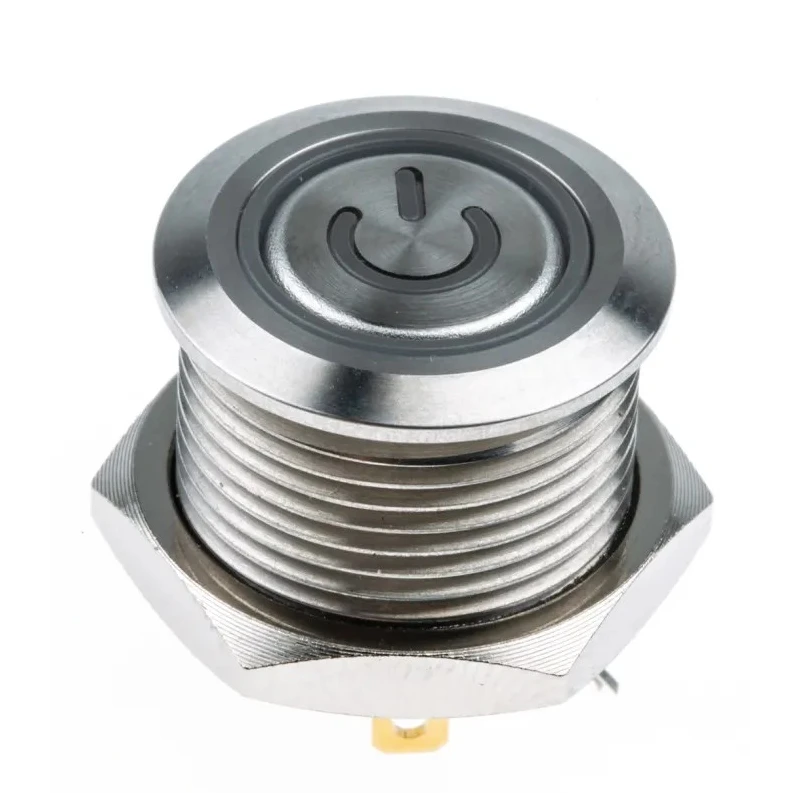

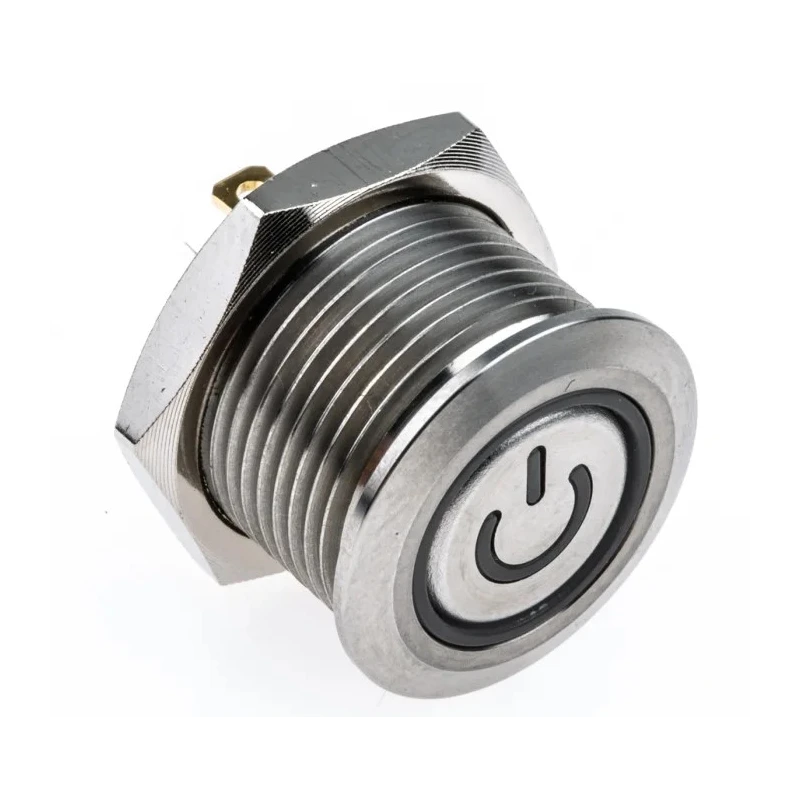

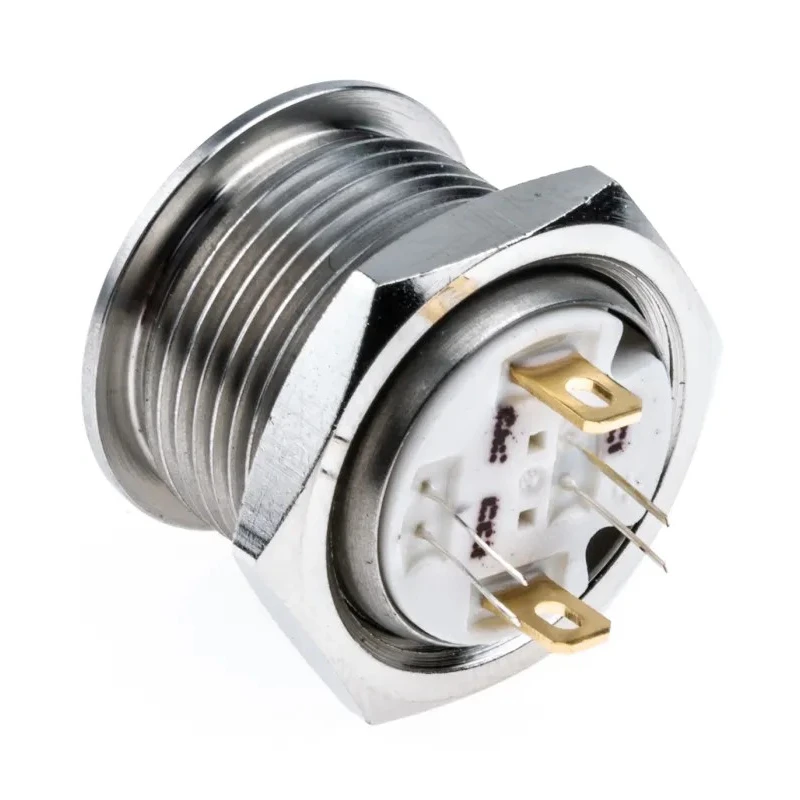

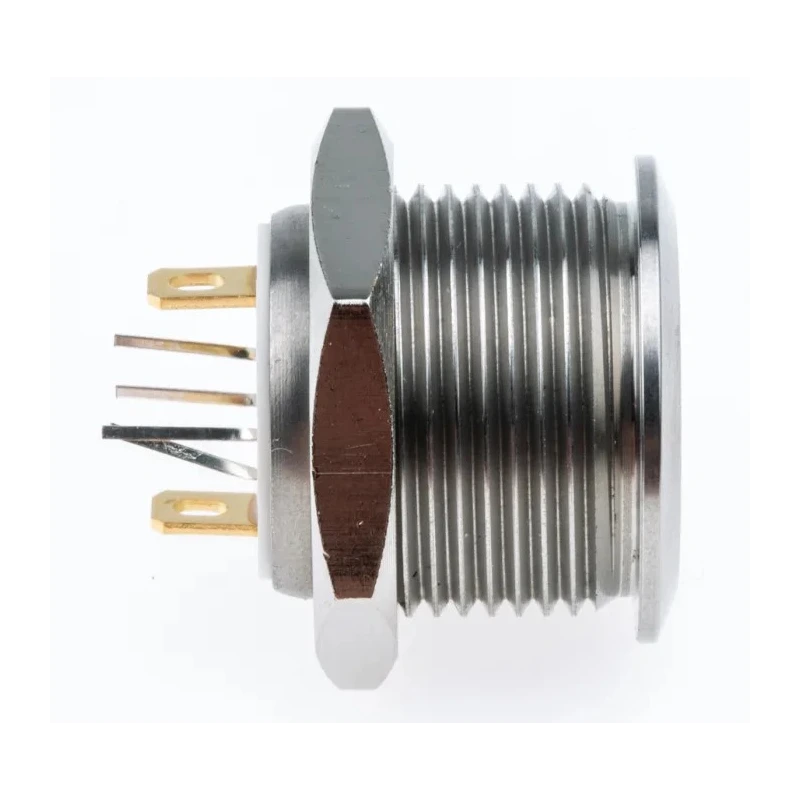

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 16 mm Cutout, SPST RGB LED, IP67, 36 V dc 175-9212
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 175-9212 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V-0, UL 94 V-2 |
| LED Colour | Blue, Green, Red |
| Switch Operation | Momentary |
| Contact DC Voltage | 36V dc |
| Actuator Style | Flat |
| Switch Contact Current | 2A |
| Legend | Power Symbol |
Key Features
- The switch operates momentarily with a flat actuator style for easy use.
- Supports a DC contact voltage up to 36 V with a contact current rating of 2A.
- Equipped with solder terminals and a power symbol legend for clear identification.
- Suitable for industrial applications requiring vandal resistance and durability.
- LED colors include blue, green, and red for versatile indication.
- Operates within a temperature range of -20°C to 70°C for various environments.
- Constructed with materials meeting UL 94 V-0 and UL 94 V-2 flame retardant standards.
- Originates from Taiwan, Province Of China, ensuring quality manufacturing.
Product Description
RS PRO 175-9212 is an illuminated momentary push button switch engineered for panel mounting with a 16 mm cutout. It features a single pole single throw (SPST) contact configuration and offers RGB LED illumination. Rated IP67, it provides excellent protection against water and dust ingress, making it ideal for harsh industrial environments.
The switch supports a DC contact voltage of 36 V and can handle a contact current of 2A. It is designed with a flat actuator for ergonomic operation and includes solder-type terminals that support reliable electrical connections. The power symbol legend clearly indicates its function on the panel.
The product meets UL 94 V-0 and UL 94 V-2 flame retardant standards, ensuring safe and durable use in electrical installations. Its operating temperature range from -20°C to 70°C accommodates various industrial and commercial environments.
RS PRO series metal switches are known for lightweight construction, high strength, corrosion resistance, and excellent heat dissipation. This model is suitable for applications such as industrial control instruments, medical equipment, security monitoring systems, vehicle peripherals, audio-visual equipment, and energy storage units.
The switch operates momentarily with a flat actuator style for ease of use. Rated IP67 for water and dust resistance, suitable for vandal-prone locations. RGB LED illumination with colors blue, green, and red for flexible signaling.
Supports 36 V DC voltage and 2A contact current for reliable switching. Constructed to UL 94 V-0 and UL 94 V-2 standards for safety and durability. Designed for panel mounting with a precise 16 mm cutout dimension. Operates efficiently across a temperature range of -20°C to 70°C.
Manufactured in Taiwan, ensuring compliance with quality standards. Explore a wide range of RS PRO Push Button Switches and accessories on EnvMart for industrial and commercial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole single throw (SPST) contact configuration.
It supports a maximum DC contact voltage of 36 V.
The contact current rating for this switch is 2A.
This model has an IP67 rating, providing excellent protection against water and dust ingress.
The switch is equipped with RGB LED illumination, offering blue, green, and red color options.
The required panel cutout size for installation is 16 mm.
It operates efficiently within a temperature range of -20°C to 70°C.
This unit is designed with solder-type terminals for reliable electrical connections.
It meets UL 94 V-0 and UL 94 V-2 flame retardant standards for safety and durability.
The switch features a flat actuator style for ergonomic operation.
It is suitable for various applications, including industrial control instruments, medical equipment, and security monitoring systems.
This push button switch originates from Taiwan, Province Of China.
