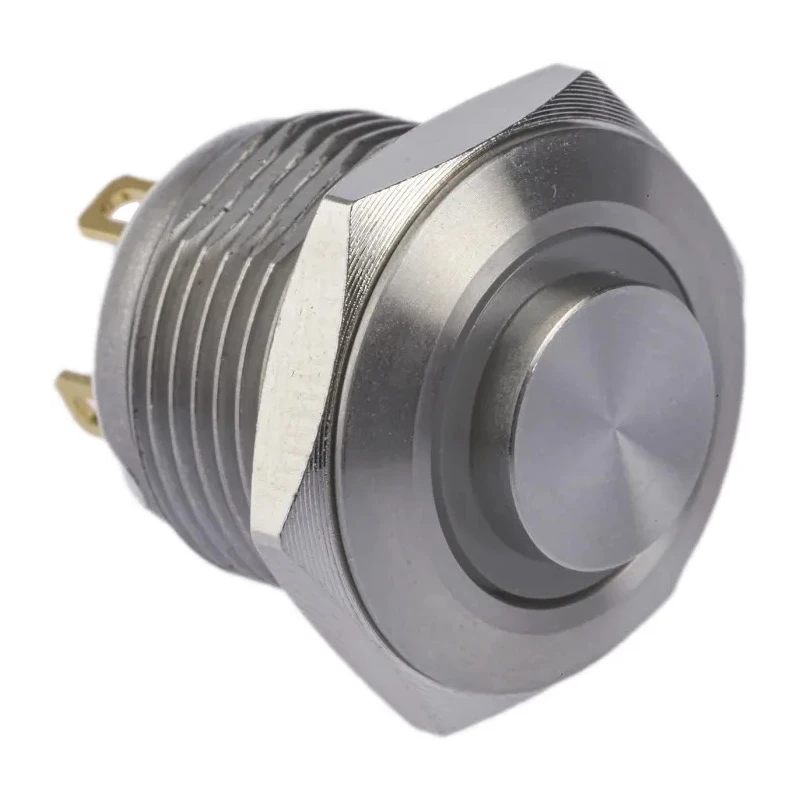

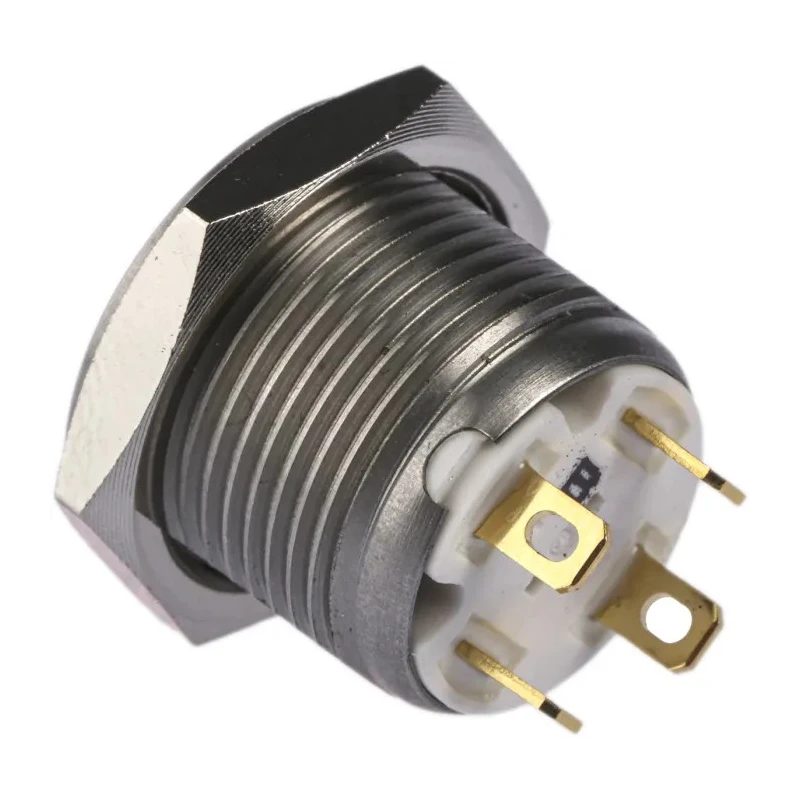

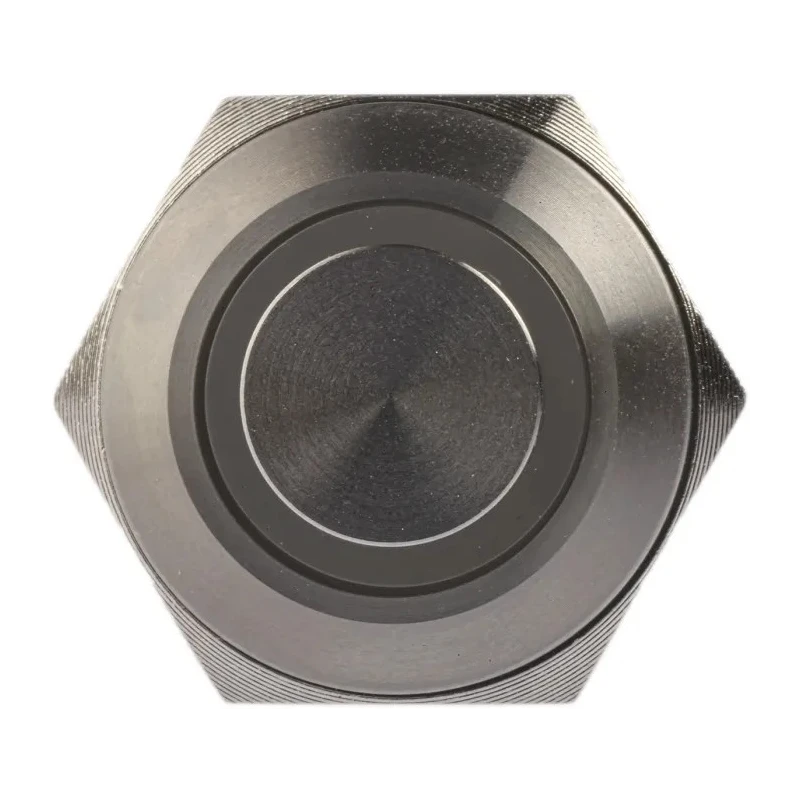

RS PRO Illuminated Push Button Switch Momentary Panel Mount SPST Yellow LED IP67 36V DC 175-9180
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 175-9180 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder |
| Standards/Approvals | UL 94 V-0, UL 94 V-2 |
| LED Colour | Yellow |
| Switch Operation | Momentary |
| Contact DC Voltage | 36V dc |
| Actuator Style | Round |
| Switch Contact Current | 2A |
Key Features
- Provides reliable momentary switching functionality for industrial applications.
- Features a 16 mm panel cutout size, suitable for easy panel mounting.
- Equipped with a yellow LED for clear visual indication.
- IP67 rated for high dust and water resistance, ideal for harsh environments.
- SPST contact configuration with solder terminal type ensures secure connections.
- Robust round actuator style designed for durability and ease of use.
- Operates efficiently within -20°C to 70°C temperature range.
- Certified to UL 94 V-0 and V-2 standards for flame retardance.
Product Description
RS PRO 175-9180 Illuminated Push Button Switch is a momentary type switch designed for panel mounting with a 16 mm cutout. It features a single pole single throw (SPST) contact configuration and is equipped with a yellow LED for illuminated status display. This push button switch is rated IP67, offering robust protection against dust and water ingress, making it suitable for industrial, automation, and control instrument applications.
The switch operates on a contact voltage of 36 V DC and supports a contact current of 2 A, making it reliable for controlling low voltage circuits. Its round actuator design ensures easy operation and vandal resistance, suitable for both indoor and outdoor use.
The switch is constructed to UL 94 V-0 and V-2 flame retardant specifications, ensuring safety and durability. It performs reliably within a temperature range of -20°C to 70°C, covering typical industrial and commercial environments.
This product is ideal for use in industrial control instruments, medical equipment, security monitoring systems, vehicle peripherals, audio-visual devices, and energy storage equipment, where illuminated momentary switches with robust ingress protection are required.
Reliable momentary switch operation. Panel mounting with a 16 mm cutout size. Clear yellow illumination LED. IP67 rated dust and water resistance. SPST contact configuration with solder terminals. Round actuator style for durability.
Operating temperature range from -20°C to 70°C. Certified to UL 94 flame retardant standards. Contact current rating of 2 A. Manufactured in Taiwan with quality assurance. Explore the wide range of RS PRO switches and control components available on EnvMart for diverse industrial and commercial applications.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole single throw (SPST) contact configuration, which allows for reliable momentary switching functionality.
It operates efficiently within a temperature range of -20°C to 70°C, making it suitable for various industrial and commercial environments.
The switch requires a panel cutout size of 16 mm for proper installation and mounting.
This unit is rated for a contact voltage of 36 V DC, suitable for controlling low voltage circuits.
It is equipped with solder terminals, ensuring secure connections during installation.
Yes, it is designed for both indoor and outdoor use, thanks to its IP67 rating, which provides robust protection against dust and water ingress.
The switch features a yellow LED, providing clear visual indication when activated.
It is certified to UL 94 V-0 and V-2 standards for flame retardance, ensuring safety in various applications.
The contact current rating for this model is 2 A, making it suitable for various low voltage applications.
This unit features a round actuator style, designed for ease of use and vandal resistance.
It is ideal for use in industrial control instruments, medical equipment, security monitoring systems, and audio-visual devices, among others.
This push button switch is manufactured in Taiwan, ensuring quality assurance in its production.
