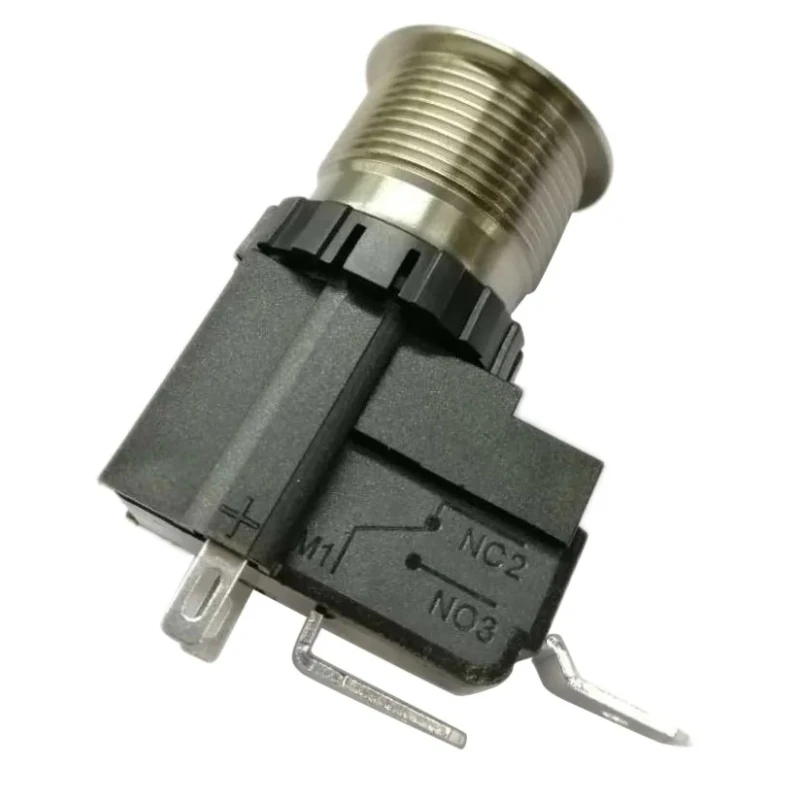

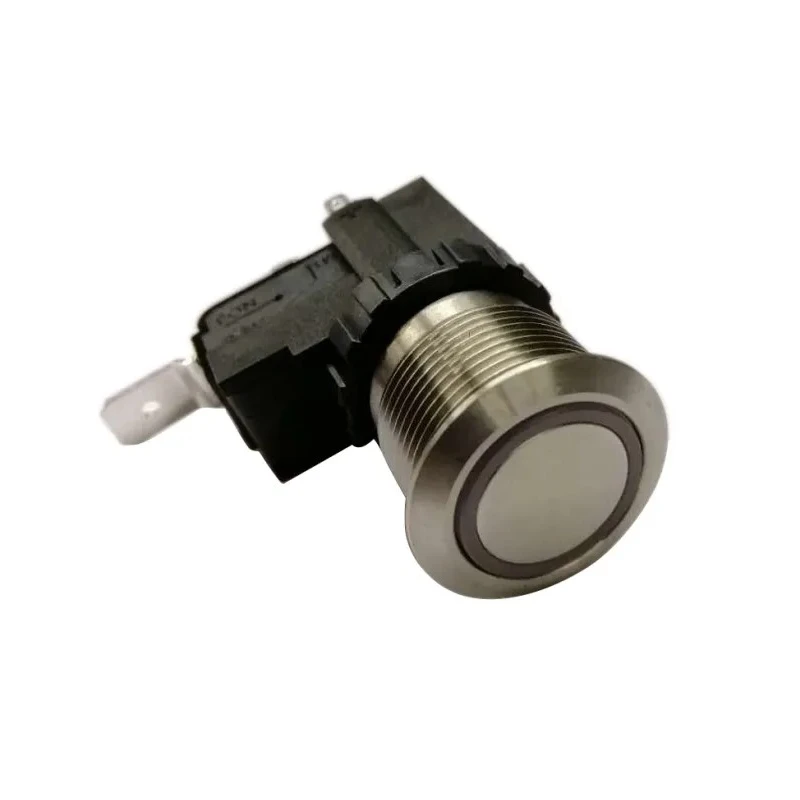

RS PRO Illuminated Push Button Switch, Latching Operation, Panel Mount, 19.1 mm Cutout, SPST Contact, White LED 175-8034

Name: RS PRO Illuminated Push Button Switch, Latching Operation, Panel Mount, 19.1 mm Cutout, SPST Contact, White LED 175-8034
Brand: RS PRO
SKU: 241247
Price: 3740.36 INR
Availability: InStock



Category Push Button Switches Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	175-8034
IP Rating	IP67
Mount Type	Panel
Series	RS PRO
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-25°C
Panel Cutout Size	19.1 mm
Terminal type	Quick Connect
Standards/Approvals	cULus Recognized, EC18, EN18, UL 94 V-0, UL 94 V-2
LED Colour	White
Switch Operation	Latching
Actuator Style	Flat
Switch Contact Current	16, 26A
Contact AC Voltage	250V ac
Legend	Power Symbol

Key Features

The switch features IP67 rating for high ingress protection and durability.
It operates at 250 V ac with a contact current rating of 16, 26 A.
Flat actuator style ensures easy and reliable operation.
The LED indicator is white for clear visual status confirmation.
Minimum and maximum operating temperatures range from -25°C to 85°C.
Quick connect terminal type enables fast installation and maintenance.
This switch is compliant with standards including cULus Recognized, EC18, EN18, UL 94 V-0, and UL 94 V-2.
The product is manufactured in Taiwan, Province Of China.

Product Description

The RS PRO 175-8034 Illuminated Push Button Switch is a high-quality latching push button designed for panel mounting with a precise 19.1 mm cutout. Featuring SPST contact configuration and a flat actuator style, this switch provides reliable and intuitive control suitable for diverse industrial and commercial applications.

Constructed to meet IP67 ingress protection standards, it offers excellent resistance to dust and water, making it ideal for harsh and demanding environments. The switch operates at 250 V ac and supports contact currents of 16 and 26 A, ensuring robust electrical performance.

The white LED illumination provides clear status indication, enhancing operational feedback. The quick connect terminal type simplifies installation and maintenance tasks.

Operating temperature ranges from -25°C to 85°C protect the switch functionality across various climate conditions. The switch meets multiple standards such as cULus Recognized, EC18, EN18, UL 94 V-0, and UL 94 V-2 for safety and quality assurance.

This product finds applications in industrial control instruments, medical equipment, security monitoring systems, vehicle peripherals, audio-visual devices, and energy storage solutions. It supports maintenance convenience with replaceable micro-switch and bushing components.

High ingress protection IP67 ensures operational reliability in tough environments. Latching switch operation provides stable on/off control. 19.1 mm panel cutout suits standard installation sizes. White LED illumination offers clear visual indication.

Flat actuator style allows easy actuation. Contact rating of 16, 26A supports high current loads. Quick connect terminals enable efficient wiring and replacement. Wide operating temperature range from -25°C to 85°C enhances versatility.

Certified standards ensure compliance and safety.

The RS PRO 175-8034 Push Button Switch is an excellent choice for users requiring a durable, versatile, and easy-to-integrate control switch in industrial, laboratory, manufacturing, HVAC, and commercial electrical systems.
