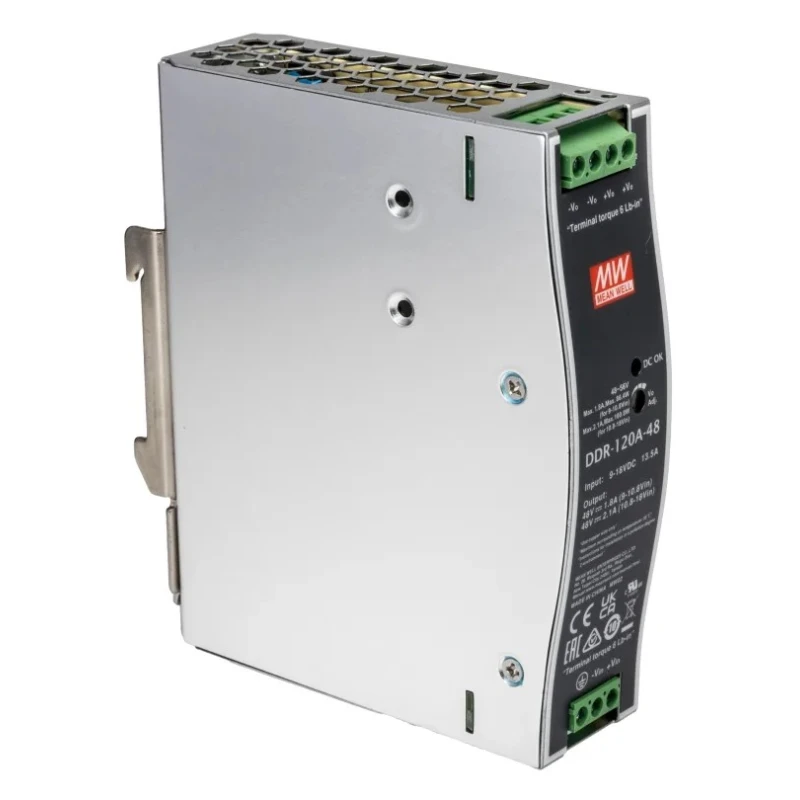

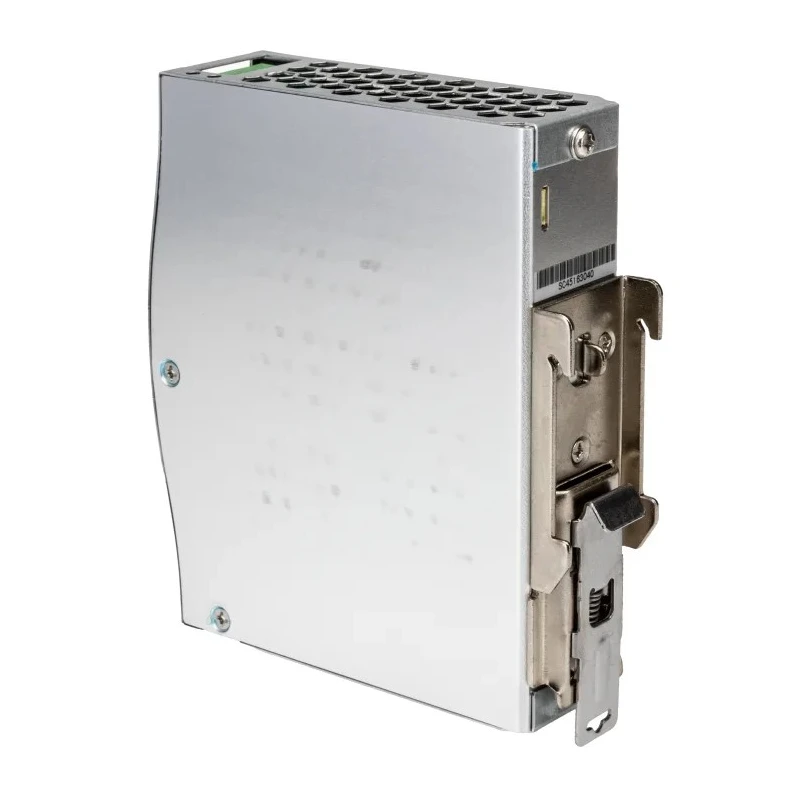

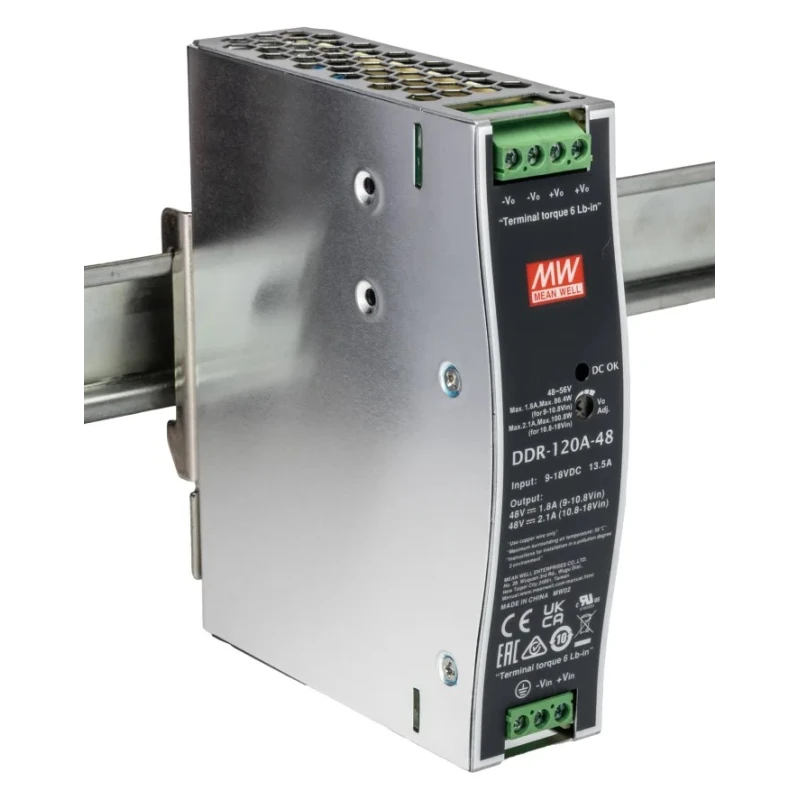

MEAN WELL DC/DC Converter 48V Output, 9-18V Input, 10A, 120W, DIN Rail Mount, Operating Temp -40°C to 70°C DDR-120A-48

MEAN WELL DDR-120A-48 DC/DC Converter provides a versatile 48V DC output from a low voltage DC input range of 9V to 18V. This converter delivers a continuous output current of 10A and up to 120W of power, making it suitable for a wide range of industrial and commercial electronic equipment.

Engineered for durability, it supports a wide operating temperature range from -40°C to 70°C, enabling use in harsh environmental conditions. The device features DIN rail mounting for easy integration into control panels and industrial racks.

The output voltage is adjustable from 48V up to 56V, offering flexibility for various power requirements. 4KV DC reinforced isolation ensures safety and signal integrity between input and output. The ripple and noise level is controlled at 50mV peak-to-peak, ensuring clean power delivery to sensitive electronics.

This DC/DC converter complies with multiple international standards including EN61000-6-2, UL508, EN61000-4-6, and IEC62368-1, ensuring reliable electromagnetic compatibility and safety performance.

Typical applications include bus, tram, metro, railway systems, industrial control systems, semiconductor fabrication equipment, factory automation, electromechanical devices, wireless networks, and telecom/datacom systems. The slim design at 32mm width and 102mm depth optimizes cabinet space.

Input voltage range from 9V to 18V DC suitable for varied applications. Output voltage adjustable between 48V and 56V to meet different requirements. Provides a stable output current of 10A and maximum output power of 120W.

Designed for DIN rail mounting to facilitate easy industrial installation. Operating temperature range from -40°C to 70°C ensures performance in harsh environments. Features 4KVdc reinforced isolation for safety and reliability.

Ripple and noise output limited to 50mV peak-to-peak for clean power delivery. Wide approval standards including UL508 and EN61000 series for industrial compliance. Compact dimensions of 32mm width and 102mm depth optimize space usage.

Robust construction supporting applications in railway, industrial control, telecom, and automation systems.

This MEAN WELL DDR-120A-48 DC/DC Converter is a reliable component for industrial power supply solutions, offering flexibility, safety, and robust performance in a compact form factor. Explore our environment-friendly power converter range for efficient and dependable energy management.
