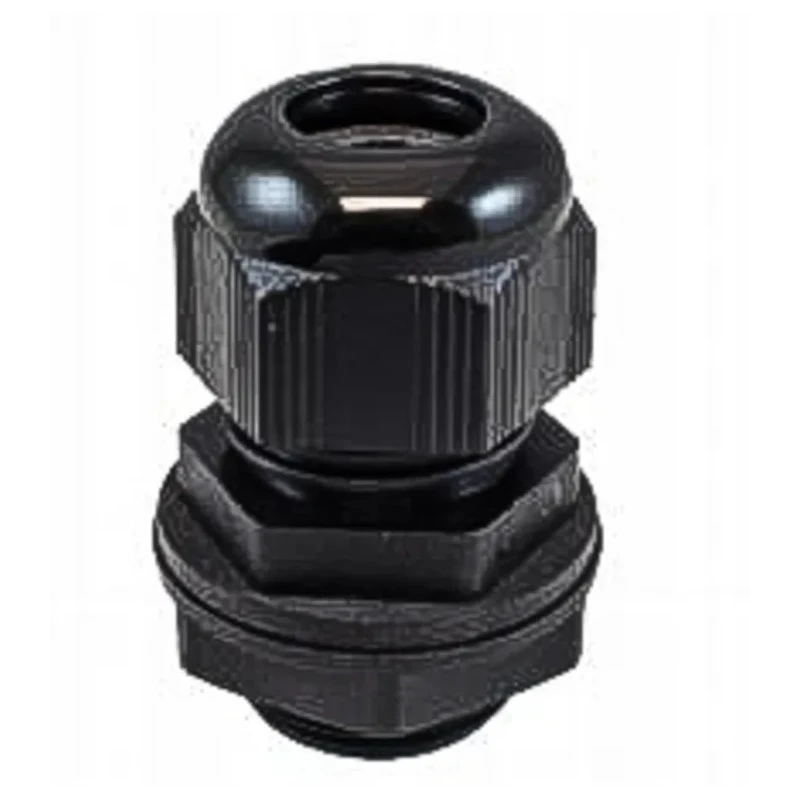

Alpha Wire FIT Wire Management Series Black Polyamide 6 Cable Gland M25 Thread, 11 mm Min., 17 mm Max., IP66 PMC25 BK080

Alpha Wire PMC25 BK080 cable gland is part of the FIT Wire Management Series, crafted from high-quality Polyamide 6 with a durable black finish. This cable gland is a standard threaded plastic gland designed for cables ranging from 11 mm to 17 mm in diameter, with an M25 thread size and 8 mm thread length providing a secure and reliable fitting.

It features robust Chloroprene rubber O-rings and a locknut included to ensure optimal sealing and strain relief, preventing damage from pulling and environmental factors. Rated at IP66 and IP68, the gland offers excellent protection against dust ingress, dirt, and water submersion up to 5 bar pressure for 30 minutes, assuring durability in challenging industrial and outdoor environments.

The temperature rating spans from -30°C to 150°C (intermittent), allowing usage in a wide variety of thermal conditions. Compliance with CSA and UL safety standards, along with a flammability rating of V2 according to UL94, highlights the product's reliability and fire safety in demanding installations.

This cable gland is suited for applications across telecommunications, control systems, instrumentation, data transmission, and electrical power setups. Its wide clamping range and high-quality rubber seals make it a versatile, durable solution for wire management requiring efficient protection and strain relief.

Constructed from Polyamide 6 material with black color. Thread size M25 with 8 mm thread length. Clamping cable diameter range 11 to 17 mm. IP66 and IP68 rated for dust and water resistance. Operating temperature from -30°C to 150°C.

Includes Chloroprene rubber O-ring seal and locknut. Certified to CSA and UL standards. Flammability rating V2 according to UL94. Explore a wide range of Cable Glands at EnvMart for robust electrical and industrial wire management solutions.
