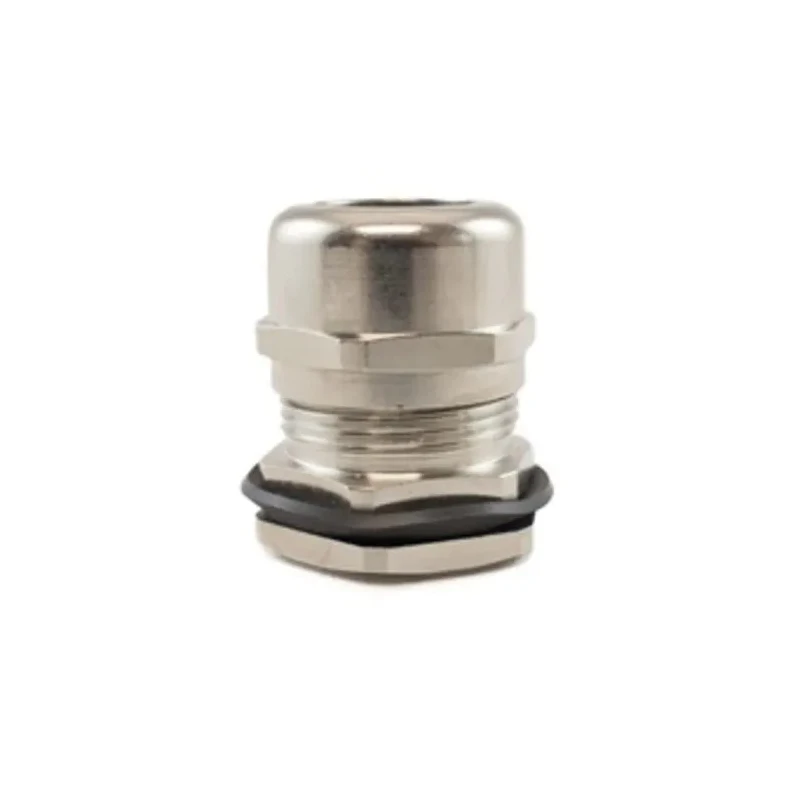

Alpha Wire FIT Wire Management Series Metallic Metal Cable Gland PG9 Thread, 4 mm Min., 8 mm Max., IP68, IP66 MPG9 NC080
Specifications
| Country of Origin | India |
|---|---|
| Brand | Alpha Wire |
| Material | Metal |
| Colour | Metallic |
| Temperature range | -20°C to +100°C (Permanent), -40°C to +150°C (Intermittent) |
| Model | MPG9 NC080 |
| IP Rating | IP68, IP66 |
| Series | FIT Wire Management |
| Maximum Operating Temperature | 150°C |
| Thread Size | PG9 |
| Minimum Operating Temperature | -30°C |
| Thread Length | 6 mm |
| Clamping Range | 4 - 8 mm |
| Thread Diameter | 15.2 mm |
| Standards/Approvals | UL |
| Maximum Cable Diameter | 8mm |
| Minimum Cable Diameter | 4mm |
| Flammability | V2 (According to UL94) |
Key Features
- Constructed from brass with nickel plating and a chloroprene rubber seal for enhanced durability.
- Supports a clamping range of 4 to 8 mm, fitting cables within this range securely.
- Features an IP68 rating allowing submersion and dust resistance, and IP66 for high-level ingress protection.
- Temperature range supports permanent usage from -20°C to +100°C and intermittent usage from -40°C to +150°C.
- Includes locknut to securely fasten the cable gland.
- Thread length is 6 mm with an external thread diameter of 15.2 mm.
- Flammability rating V2 according to UL94 ensures safety under fire conditions.
- Suitable for telecommunications, control, instrumentation, data cables, and electrical power applications.
Product Description
Alpha Wire MPG9 NC080 Cable Gland from the FIT Wire Management Series is a high-quality metallic gland designed to provide robust protection and strain relief for cables with a diameter range of 4 to 8 mm. Featuring a brass, nickel-plated body and cap with a chloroprene rubber seal and NBR O-ring, this cable gland delivers exceptional reliability in demanding industrial environments.
The gland is rated IP68 and IP66, ensuring excellent protection against dust, dirt, and water ingress, making it suitable for use in harsh conditions including telecommunications, data transmission, control systems, and electrical power cabling.
The PG9 thread size, with a thread length of 6 mm and a thread diameter of 15.2 mm, allows easy installation and secure fastening using the included locknut. The gland accommodates cables with diameters ranging from 4 mm minimum to 8 mm maximum, providing a strong clamping range.
The product supports a broad temperature range, with permanent operational temperatures from -20°C to +100°C and intermittent tolerance from -40°C to +150°C, making it suitable for environments with fluctuating temperature demands.
The flammability rating of V2 per UL94 standard adds to the safety profile, ensuring that in case of exposure to flame, the material will extinguish itself within 30 seconds on a vertical sample.
Brass, nickel-plated metal construction with robust sealing. Suitable for PG9 threaded cable glands with 4 - 8 mm cable diameter range. IP68 and IP66 ingress protection against dust and water. Locknut included for secure installation.
Wide operating temperature range from -20°C to +150°C (intermittent). Flammability V2 certification according to UL94 standard. Applications include telecommunications, instrumentation, data, and power cabling.
This cable gland represents a reliable solution for wire management in industrial, commercial, and telecommunications sectors. For more products like this, explore the Cable Glands & Fittings category on EnvMart for high-quality electrical components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping range of this cable gland is from 4 mm to 8 mm, allowing it to securely fit cables within this diameter range.
This model has an IP68 rating, allowing for submersion and dust resistance, as well as an IP66 rating for high-level ingress protection.
It is constructed from brass with nickel plating and features a chloroprene rubber seal for enhanced durability.
The cable gland supports permanent usage from -20°C to +100°C and intermittent usage from -40°C to +150°C.
The thread size is PG9, with a thread length of 6 mm and an external thread diameter of 15.2 mm.
Yes, it includes a locknut to securely fasten the cable gland during installation.
The flammability rating is V2 according to the UL94 standard, ensuring safety under fire conditions.
This cable gland is suitable for telecommunications, control, instrumentation, data cables, and electrical power applications.
The country of origin for this cable gland is India.
It can accommodate a minimum cable diameter of 4 mm and a maximum cable diameter of 8 mm.
This model meets UL standards, ensuring it complies with safety regulations.
This cable gland is part of the FIT Wire Management Series by Alpha Wire.
