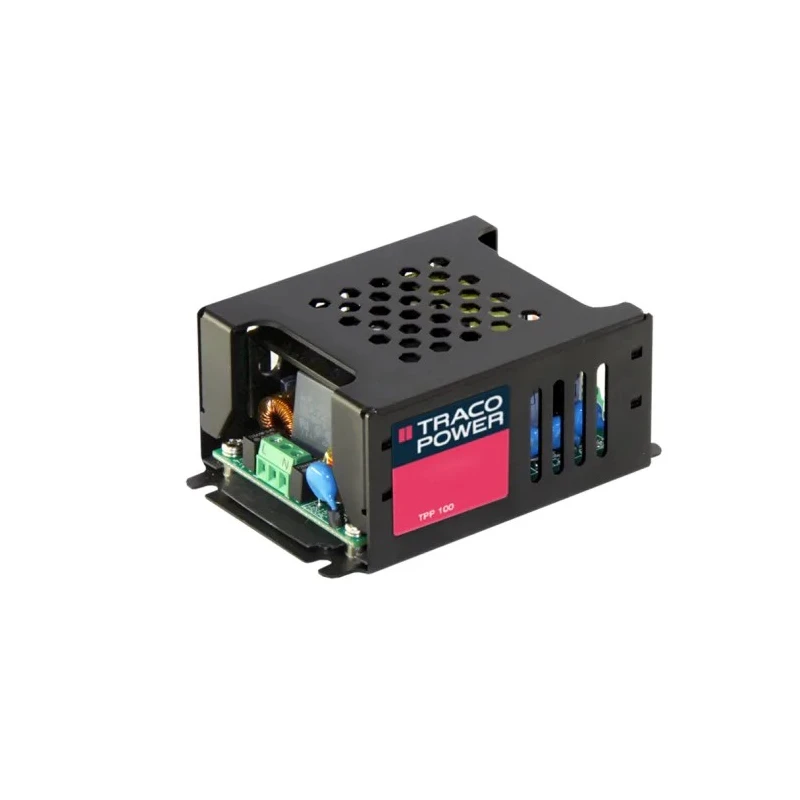

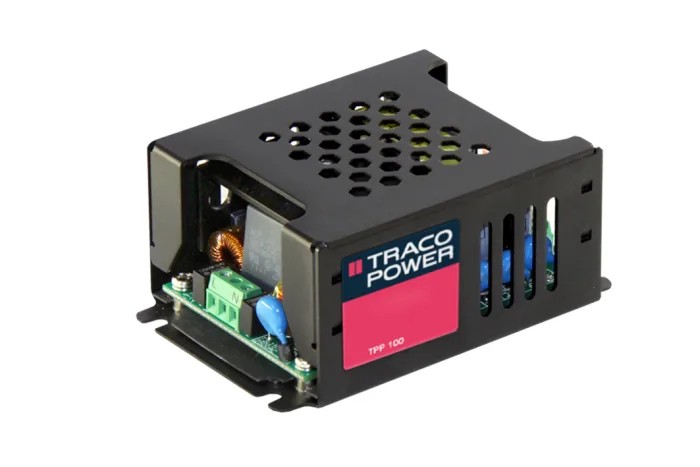

TRACOPOWER Switching Power Supply 48V Output 100W Power Chassis Mount TPP 100-148

TRACOPOWER TPP 100-148 switching power supply is a high-density 100W AC-DC power supply designed for medical and industrial uses, offering a maximum output voltage of 48V with a single output providing 2.09A current. This chassis mount power supply features a reinforced double I/O isolation system compliant with the latest medical safety standards including 2 x MOPP protection as per AAMI/ANSI ES 60601-1 and IEC/EN 60601-1 3rd edition. It operates efficiently with 91% efficiency, supports active power factor correction exceeding 95%, and maintains reliable performance within an ambient temperature range from -20°C to 70°C. The product's compact footprint measures 50.8mm width by 76.2mm depth, enabling space-sensitive installations.

The TPP 100-148 ensures safety with approvals such as UL 60950-1 and ANSI/AAMI ES 60601-1 and is suitable for demanding environments including medical devices, industrial equipment, and safety-critical applications. Its operation supports input voltages ranging from 90V AC minimum to 264V maximum and is designed to function at altitudes up to 5000 meters. The device belongs to TRACOPOWER's TPP 100 series which emphasizes high power density and dependable thermal management using industrial-grade components.

Additional features include protection class II readiness, adjustable output voltage for customized applications, and robust build quality guaranteeing long-term reliability. This switching power supply is highly suited for laboratories, medical devices, industrial manufacturing, and HVAC systems.

Features a single output delivering 2.09A current. Operating temperature range from -20°C to 70°C. Achieves high efficiency of 91% for energy savings. Designed with reinforced double I/O isolation conforming to medical safety standards.

Includes active power factor correction for improved performance. Compact dimensions with width 50.8mm and depth 76.2mm. Certified to multiple safety standards including EN 60601-1 and IEC 60950-1. Suitable for industrial, medical, and demanding safety-critical applications.

Reliable operation up to 5000m altitude with protection class II preparedness. Adjustable output voltage for application flexibility. Explore more Switching Power Supplies and provide your projects with high quality, certified power solutions at EnvMart.
