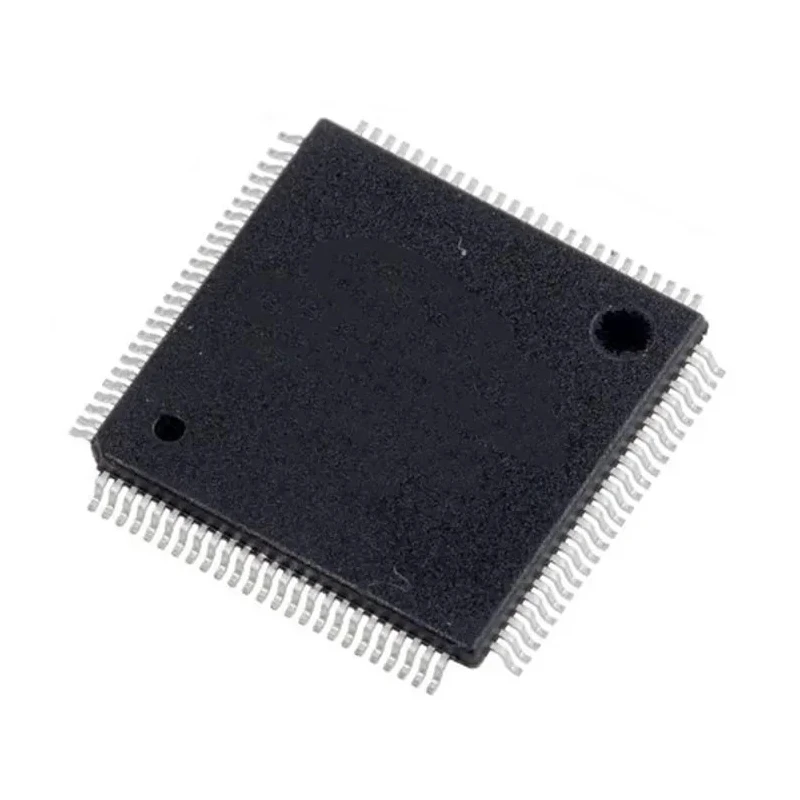

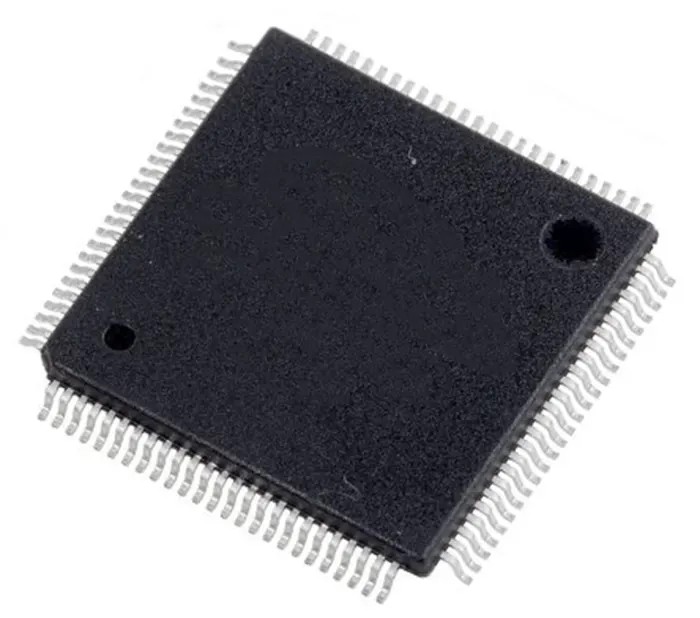

STMicroelectronics 32-bit ARM Cortex M4 Microcontroller 120 MHz 2MB FLASH 100-Pin LQFP STM32L4R5VGT6

STMicroelectronics STM32L4R5VGT6 is a high-performance 32-bit ARM Cortex M4 microcontroller designed for advanced embedded applications requiring high speed and large memory capacity. It operates at a maximum clock frequency of 120 MHz, providing efficient processing power with a powerful floating-point unit supporting double and single precision computations.

This microcontroller includes 2 MB of ISP flash program memory and 640 kB of SRAM, enabling complex firmware and data management. The 100-pin LQFP surface mount package offers a compact footprint with dimensions of 14.2 mm length, 14.2 mm width, and a height of 1.45 mm, suitable for compact PCB designs.

The STM32L4R5VGT6 integrates extensive communication interfaces such as CAN 2.0B active, UART, I2C, LIN, CSI, and SPI interfaces, supporting versatile industrial, automotive, and consumer electronics applications. It features two 12-bit DACs and sixteen 12-bit ADCs providing high-resolution analog input/output capabilities, alongside two 12-bit DACs and two analogue comparators.

Additional features include advanced graphics processing units such as the Chrom-ART Accelerator™ and built-in LCD-TFT controller, enabling sophisticated display applications. It supports multiple timers including advanced motor control timers ideal for embedded motor applications.

Operating voltage ranges from a minimum of 1.71 V to a maximum of 3.6 V, with an industrial operating temperature range between -40°C and +85°C ensuring durability in harsh environments. Safety and reliability are enhanced via on-chip power-on-reset, voltage detectors, and a memory protection unit (MPU).

This microcontroller is ideal for electronic equipment, low power appliances, temperature sensor systems, and industrial control applications requiring precise digital processing and real-time performance.

High-performance ARM Cortex M4 core operating at up to 120 MHz. 2MB ISP flash program memory with 640kB SRAM for complex embedded applications. Advanced graphical features including Chrom-ART Accelerator™ and LCD-TFT controller.

Rich peripheral set with CAN, UART, I2C, LIN, CSI, SPI interfaces. Wide operating temperature range suitable for industrial environments. Includes multiple timers and 12-bit DACs and ADCs for signal processing. Compact 100-pin LQFP surface mount package, 14.2 x 14.2 x 1.45 mm dimension.

Low power consumption with internal clock recovery and brownout reset functions. Explore the extensive STMicroelectronics Microcontroller portfolio at EnvMart for reliable, high-performance embedded solutions.
