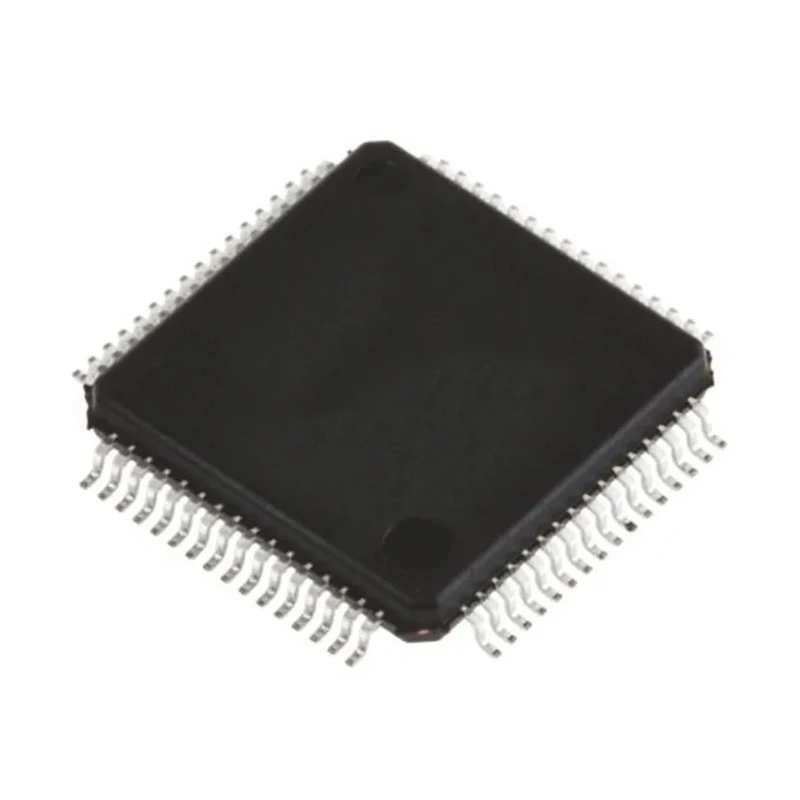

STMicroelectronics STM32L452RET6P 32 bit ARM Cortex M4 Microcontroller 80 MHz 512kB FLASH 64-Pin LQFP

STMicroelectronics STM32L452RET6P is a new ultra-low-power microcontroller based on the ARM Cortex-M4 32-bit RISC core, operating at up to 80 MHz. This microcontroller features 512kB of FLASH program memory with 160kB RAM, housed in a compact 64-pin LQFP surface mount package situated on a 10mm x 10mm footprint with 1.45mm height.

The Cortex-M4 core incorporates a single-precision Floating Point Unit (FPU) and full DSP instruction support, enhancing performance for complex embedded applications. It also contains a memory protection unit (MPU) to enhance security.

This device supports an operating voltage range of 1.71V to 3.6V and can operate reliably across a wide temperature range from -40°C to +85°C, suitable for various industrial and environmental conditions.

Peripheral features include 16 channels of 12-bit ADC with a sample rate up to 5 Msps, one 12-bit DAC channel, two analogue comparators, one operational amplifier, an internal voltage reference buffer, and five programmable timers including a 32-bit general-purpose timer and timers dedicated to motor control applications.

Further enhancements include 83 programmable input/output pins, a Quad SPI interface for flexible flash memory expansion, and a broad bus matrix with two APB and two AHB buses for high throughput.

The STM32L452RET6P is ideal for applications requiring high processing power with real-time control and low power consumption such as industrial automation, medical monitoring devices, consumer electronics, and automotive systems requiring robust microcontroller platforms.

The device operates at a maximum clock frequency of 80 MHz enabling high-performance applications. It includes 512kB of FLASH program memory and 160kB of RAM for extensive data processing. Features 64 pins in a Low-profile Quad Flat Package (LQFP) with surface mount technology.

Includes advanced peripherals such as 16 12-bit ADC channels and 5 timers to support various control functions. Designed for ultra-low power consumption with operating voltages from 1.71V to 3.6V. Supports ARM Cortex M4 core architecture with DSP instructions and a single-precision Floating Point Unit (FPU).

Operates reliably across a wide temperature range from -40°C to 85°C for industrial environments. Includes multiple analogue comparators, DAC, operational amplifier, and extensive I/O programmability. Suitable for embedded applications in industrial, automotive, medical, and consumer electronics sectors.

This product is manufactured in China and supplied in a new condition, representing a reliable choice for embedded design projects. Explore more Microcontrollers and embedded solutions within the Semiconductor category on EnvMart for your next project needs.
