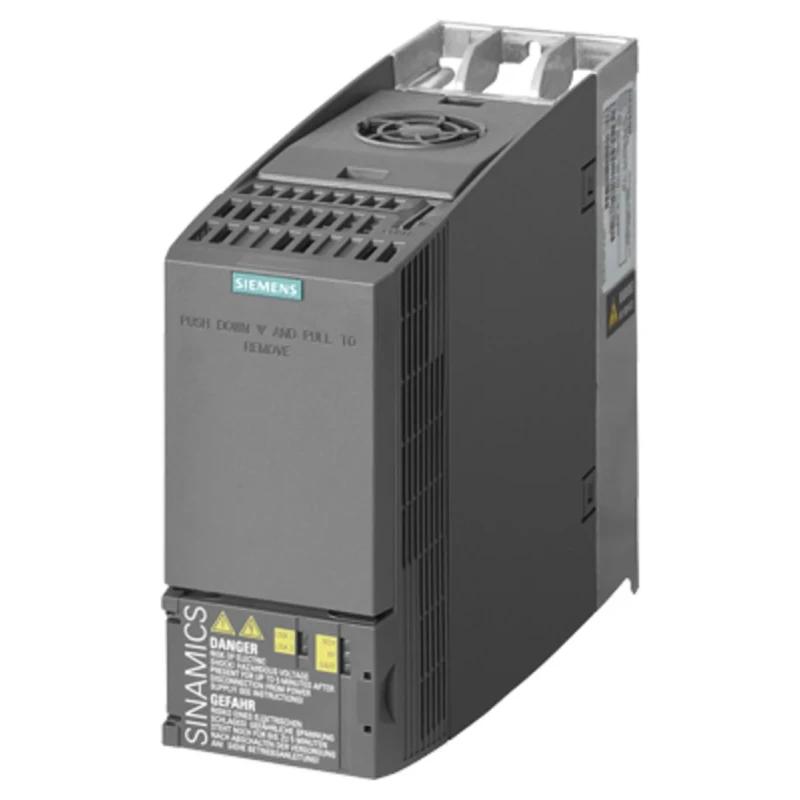

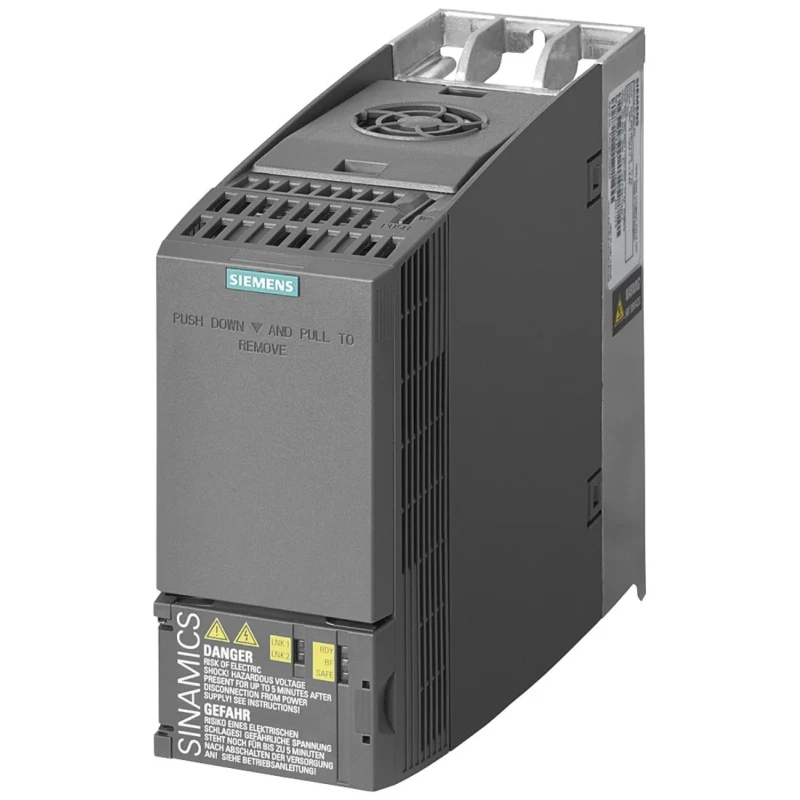

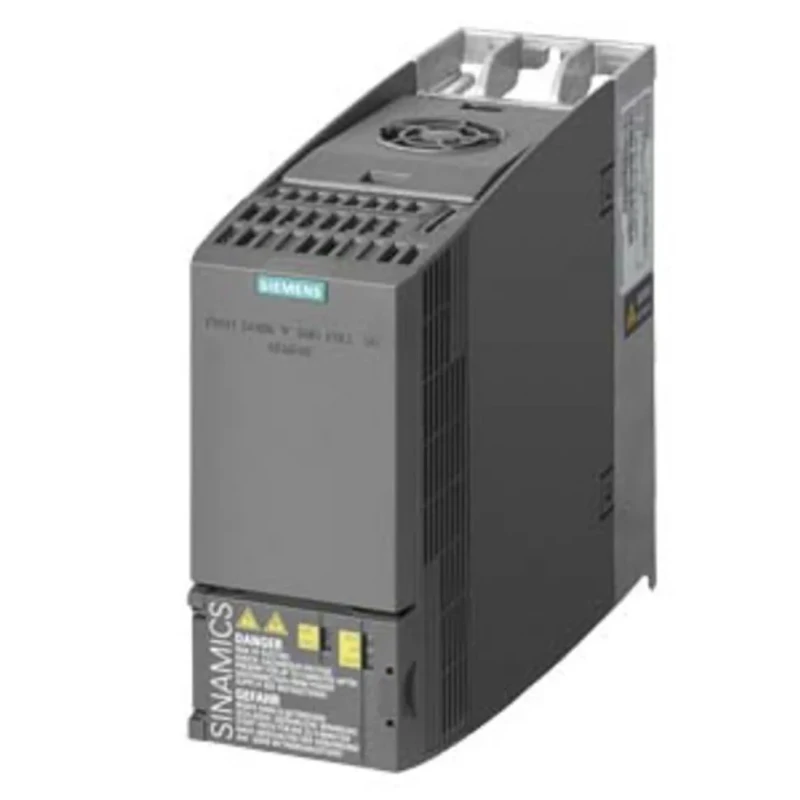

Siemens 4 kW 3 Phase SINAMICS G120C Inverter Drive Panel Mount 400V ac 11.4 A 6SL3210-1KE18-8UP1
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-1KE18-8UP1 |
| IP Rating | IP20 |
| Drive Type | Vector Control |
| Mount Type | Panel |
| Overall Length | 73mm |
| Series | SINAMICS G120C |
| Overall Width | 203mm |
| Power Rating | 4kW |
| Maximum Operating Temperature | 40°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 3 |
| Maximum Output Current | 11.4A |
| Standards/Approvals | CE, C-Tick (RCM), cUL, UL |
| Overall Depth | 196mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- This inverter drive features vector control type for enhanced motor performance.
- The panel mount design includes plug-in screw terminals making installation straightforward.
- Equipped with air cooling via an integrated fan ensuring reliable operation.
- Designed to operate efficiently within ambient temperatures of -10°C to 40°C.
- Compatible with AC motors, supporting a wide output frequency range up to 550 Hz.
- Compact dimensions of 203 mm width, 73 mm length, and 196 mm depth optimize panel space utilization.
- IP20 rated for protection against solid objects but not water ingress.
- Complies with CE, cUL, UL, and C-Tick (RCM) standards ensuring safety and reliability.
Product Description
Siemens 6SL3210-1KE18-8UP1 is a high-performance inverter drive from the SINAMICS G120C series designed for industrial and automation applications requiring reliable motor control.
This 4 kW, 3-phase inverter drive operates on a 400V ac supply and supports a maximum output current of 11.4 A, suitable for driving AC motors with vector control for precise speed and torque regulation without the need for an OS sensor.
The device features an integrated fan for air cooling, supporting ambient operating temperatures ranging from -10°C to 40°C, delivering robust performance in various industrial environments.
Mechanical design includes a panel mount configuration with plug-in screw terminals on all sides, facilitating easy installation and maintenance. Dimensions are optimized to 203 mm (width) by 73 mm (length) by 196 mm (depth), making it space efficient for control panels.
The inverter drive supports output frequency up to 550 Hz and includes interfaces for Profibus fieldbus communication, along with PTC, KTY, and Thermo-Click temperature sensor connections for enhanced motor protection features.
Its IP20 rating provides protection against access to hazardous parts and solid foreign objects, suitable for indoor industrial use. Certified for CE, cUL, UL, and C-Tick (RCM) standards, ensuring it meets global safety and performance requirements for industrial electrical equipment.
This SINAMICS G120C inverter drive is ideal for applications such as variable frequency drives, HVAC systems, manufacturing automation, and HVDC power transmission systems requiring efficient and energy-saving motor control.
This inverter drive features vector control type for enhanced motor performance. The panel mount design includes plug-in screw terminals making installation straightforward. Equipped with air cooling via an integrated fan ensuring reliable operation.
Designed to operate efficiently within ambient temperatures of -10°C to 40°C. Compatible with AC motors, supporting a wide output frequency range up to 550 Hz. Compact dimensions of 203 mm width, 73 mm length, and 196 mm depth optimize panel space utilization.
IP20 rated for protection against solid objects but not water ingress. Complies with CE, cUL, UL, and C-Tick (RCM) standards ensuring safety and reliability. Manufactured in United Kingdom, known for quality manufacturing processes.
Explore Siemens Inverter Drives on EnvMart for advanced motor control solutions tailored to industrial automation and power management applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this inverter drive is 4 kW.
It supports a maximum output current of 11.4 A.
This inverter drive supports an output frequency range of up to 550 Hz.
It is equipped with an integrated fan for air cooling, ensuring reliable operation.
The dimensions are 203 mm in width, 73 mm in length, and 196 mm in depth.
It operates efficiently within ambient temperatures ranging from -10°C to 40°C.
It is compatible with AC motors.
The mounting type is panel mount, featuring plug-in screw terminals for easy installation.
The inverter drive has an IP20 rating, providing protection against solid objects but not water ingress.
It complies with CE, cUL, UL, and C-Tick (RCM) standards, ensuring safety and reliability.
It features vector control type for enhanced motor performance.
It is manufactured in the United Kingdom.
