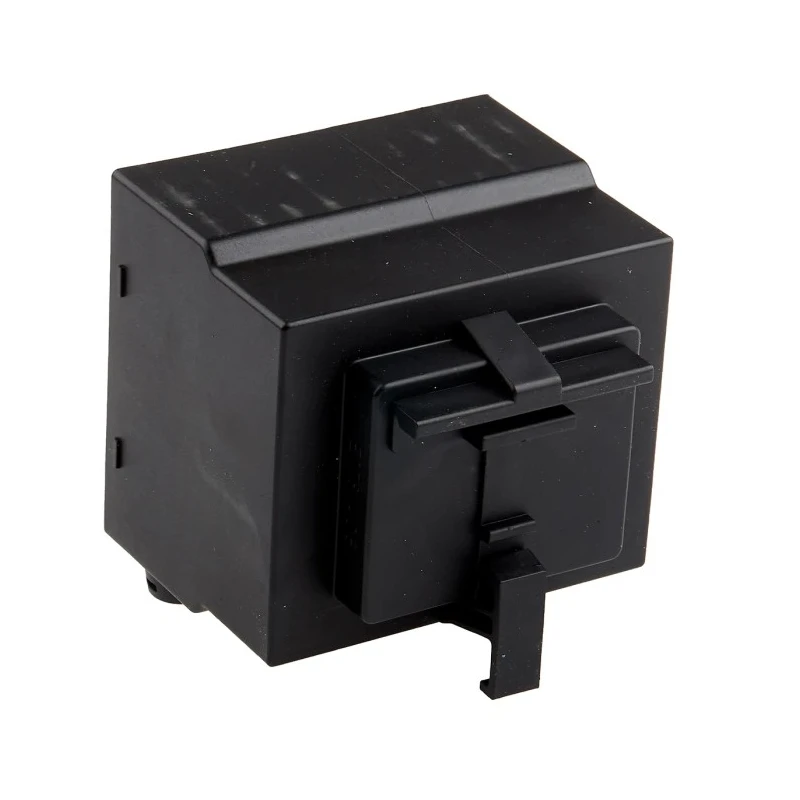

Computronic 100 VA DIN Rail Transformer, 115 to 400 V ac Primary, 12 V, 24 V ac Secondary, Mount Type DIN Rail 797-5948

RS PRO 797-5948 DIN Rail Transformer is a high-quality 100 VA power transformer designed for electrical and electronic applications requiring voltage transformation from 115 to 400 V ac primary to secondary outputs of 12 V and 24 V ac. This single-phase transformer features a robust encapsulated resin construction, providing excellent protection against environmental factors and ensuring long-term reliability.

Its compact size with length 89.5 mm, width 82.5 mm, and depth 82 mm facilitates easy integration into electrical panels using a standard 35 mm DIN rail mount. The transformer supports an operating frequency range of 50 Hz to 60 Hz and can withstand maximum operating temperatures up to 130°C, making it suitable for a wide range of industrial, commercial, and residential applications.

Equipped with a single output and fused input/output terminals, the transformer complies with international safety standards including ASNZS 61558..6, CE marking, RoHS directives, and IECBSEN schemes for enhanced safety and environmental compliance. This makes it suitable for use in power supplies, control systems, and other electrical circuits requiring reliable voltage conversion.

The product is manufactured in Poland to high-quality standards, ensuring consistent performance. The resin encapsulation also provides insulation and mechanical protection, making it ideal for demanding environments.

Single-phase moulded DIN Rail Transformer with screw terminals. Wide primary voltage input from 115 to 400 V ac. Dual secondary voltage outputs of 12 V and 24 V ac. Compact and space-saving with 89.5 x 82.5 x 82 mm dimensions.

Encapsulated construction for enhanced durability and safety. Operating frequency from 50 Hz to 60 Hz. Maximum temperature rating 130°C. Compliance with ASNZS 61558..6, CE, RoHS, IECBSEN standards. Weight 1.3 kg for easy installation.

Ideal for industrial, commercial, and residential electrical transformer applications.

This transformer is part of the RS PRO brand line, known for rigorous quality testing and reliable components trusted by engineers worldwide. It serves various use cases in electrical power distribution, control panels, and automation systems, offering a practical solution for voltage conversion needs on DIN rail mounts. Explore more RS PRO products on EnvMart for your industrial and electronic component requirements.
