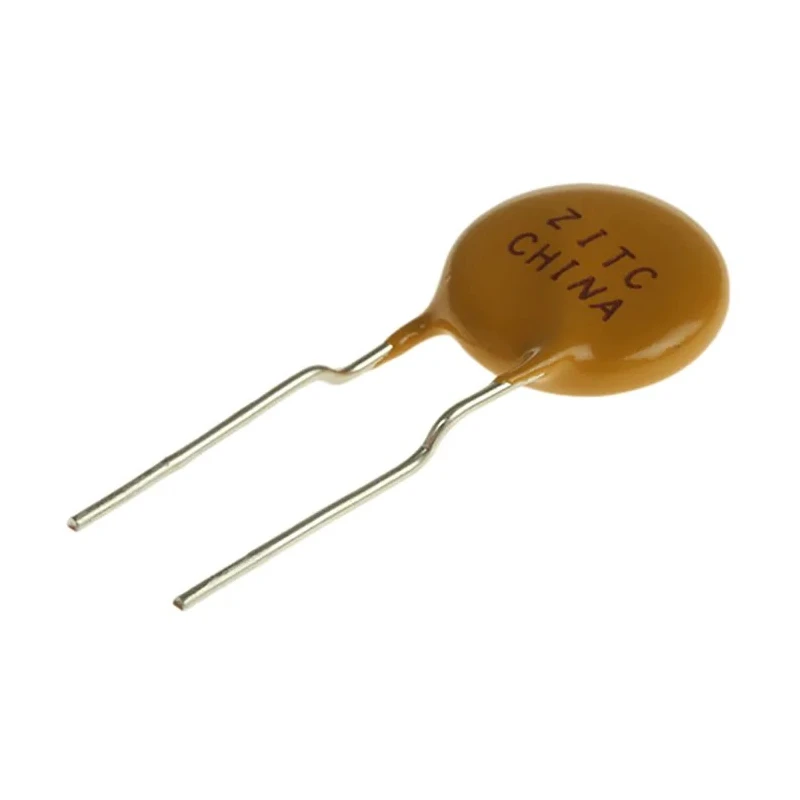

Littelfuse 0.16 A Radial Lead Orientation Resettable Fuse 240V dc Power Dissipation 1.4W LVR016K

Littelfuse LVR016K is a 0.16 A polymeric positive temperature coefficient (PPTC) resettable fuse designed for line voltage protection at 240V dc with power dissipation of 1.4W and radial lead orientation.

This fuse rapidly switches from a low resistance state to very high resistance upon an overcurrent or short circuit event, helping protect sensitive electronic and electrical circuits from damage.

With a trip current of 370 mA and fast 15-second response, it offers reliable circuit protection with a hold current of 0.16 A and maximum current capability of 2 A at 20°C. Its compact form factor (9.9 mm length, 13.8 mm height, 3.8 mm width) is suited for PCB wire-ended applications, ensuring easy integration into various devices.

The fuse operates reliably over a wide temperature range from -40°C to 60°C, and has a minimum resistance of 2.5 Ω and maximum resistance of 7.8 Ω, ensuring low power loss during normal operation.

Compliant with RoHS, TUV, UL, and CSA safety standards, this device is maintenance-free, automatically resetting itself thousands of times without requiring replacement.

Typical applications include medical equipment, motors, fans and blowers, security and fire alarm systems, test and measurement equipment, transformers, USB hubs, ports, and other peripherals.

Rated hold current of 0.16 A and current rating up to 2 A provides protection against overcurrent conditions. Fast time-to-trip of 15 seconds ensures rapid response to faults. Compact size and radial lead design allow for easy PCB mounting and space-efficient circuit design.

Compliance with multiple international safety and environmental standards guarantees quality and reliability. Maintenance-free operation with automatic resetting enhances equipment uptime and reduces maintenance costs. Wide operating temperature range ensures suitability for diverse industrial and commercial applications.

This Littelfuse resettable fuse is an excellent choice for robust protection needs in industrial, laboratory, medical, commercial, and residential electronics applications. Explore more products in the Resettable Fuse category or browse Littelfuse brand offerings at EnvMart.
