Myrra Through Hole PCB Transformer 230 V ac Primary, 12 V ac Dual Output, 10 VA Power, Model 44273

Free Delivery in India | Lowest Global Shipping Charges

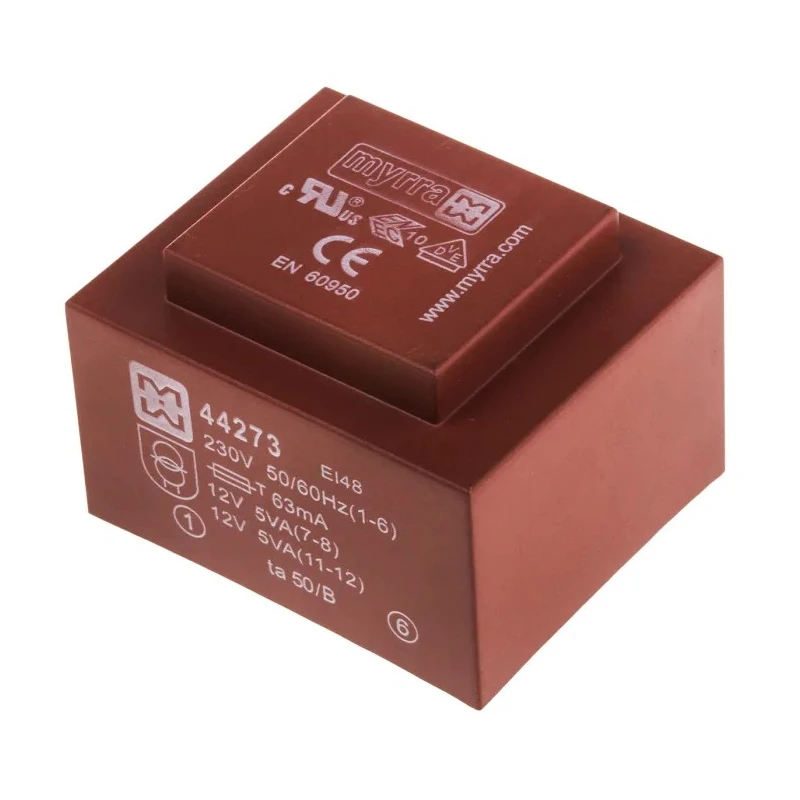

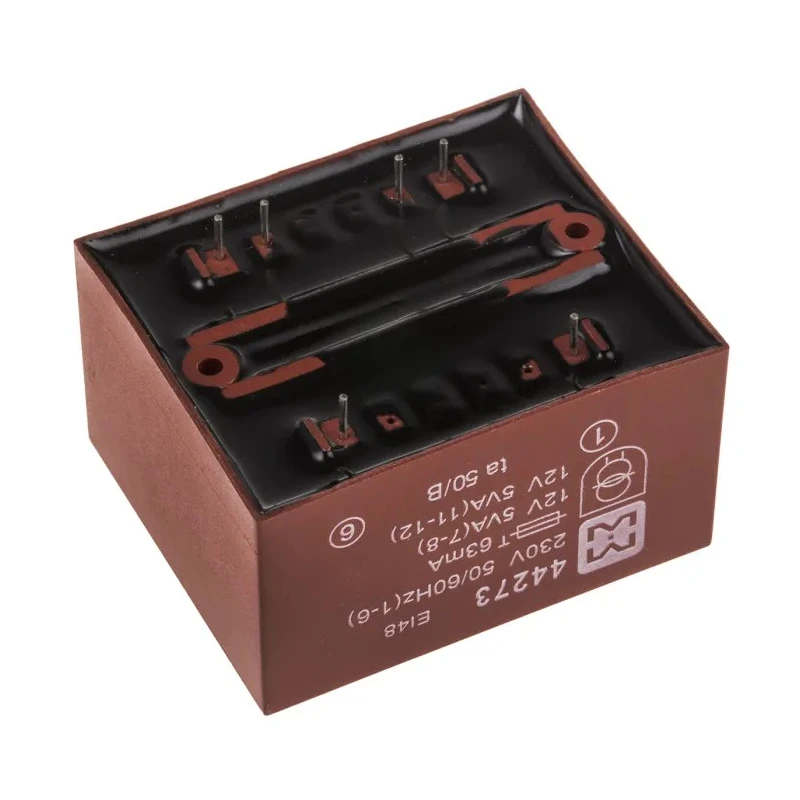

Myrra Through Hole PCB Transformer 230 V ac Primary, 12 V ac Dual Output, 10 VA Power, Model 44273

Name: Myrra Through Hole PCB Transformer 230 V ac Primary, 12 V ac Dual Output, 10 VA Power, Model 44273
Brand: Myrra
SKU: 237847
Price: 15.84 USD
Availability: InStock



Category PCB Transformer Brand Myrra Condition New

Specifications

Country of Origin	France
Brand	Myrra
Length	50.5mm
Model	44273
Depth	34.75mm
Gross Weight	300g
Width	42.5mm
Mount Type	Through Hole
Maximum Operating Temperature	50°C
Number of outputs	2
Winding Type	Dual Secondary, Single Primary
Number of Pins	6
Primary Voltage	230 V ac
Secondary Voltage	12 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
PCB Transformer Current	417mA
Block 12 V ac 1 Output Through Hole PCB Transformer, VDE, UL 10 VABrand	Block

Key Features

Dual secondary winding outputs delivering 12 V ac each.
Through hole mount type suitable for PCB integration.
Compact size with dimensions 50.5 mm length, 42.5 mm width, and 34.75 mm depth.
Rated power of 10 VA with a maximum operating temperature of 50°C.
Suitable for frequency range from 50 Hz to 60 Hz operation.
Featuring 6 mounting pins designed for robust circuit board fixing.
Winding type includes dual secondary and a single primary coil for efficient operation.
Manufactured in France, ensuring quality and compliance with industry standards.

Product Description

The Myrra 44273 is a high-quality Through Hole PCB Transformer designed to convert 230 V ac primary voltage to dual 12 V ac outputs with a power rating of 10 VA. With its through hole mounting type and compact dimensions of 50.5 mm by 42.5 mm by 34.75 mm, this transformer is suitable for efficient integration onto PCBs in various electronic and industrial applications.

This transformer operates efficiently within a frequency range of 50 Hz to 60 Hz and supports a maximum operating temperature of 50°C. It features a dual secondary winding configuration and a single primary winding, providing two separate 12 V ac outputs with currents rated at approximately 417 mA each.

Engineered for durability and stable performance, the 44273 model comes with 6 pins for firm through hole mounting on the printed circuit board. It weighs approximately 300 grams, making it manageable for handling and installation.

Manufactured in France, this transformer does not carry formal approvals but conforms to industry practices for performance and reliability. It is ideal for use in a range of sectors including electronics manufacturing, power supply units, industrial control equipment, and other commercial electronic assemblies.

Dual secondary winding outputs delivering 12 V ac each. Through hole mount type suitable for PCB integration. Compact size with dimensions 50.5 mm length, 42.5 mm width, and 34.75 mm depth. Rated power of 10 VA with a maximum operating temperature of 50°C.

Suitable for frequency range from 50 Hz to 60 Hz operation. Weight is approximately 300 grams for easy handling and installation. Featuring 6 mounting pins designed for robust circuit board fixing. Winding type includes dual secondary and a single primary coil for efficient operation.

Manufactured in France, ensuring quality and compliance with industry standards. Ideal for industrial, electronic, and power supply applications requiring reliable voltage transformation. Explore more PCB Transformers by Myrra and other brands on EnvMart to enhance your electronic designs and power management solutions.
