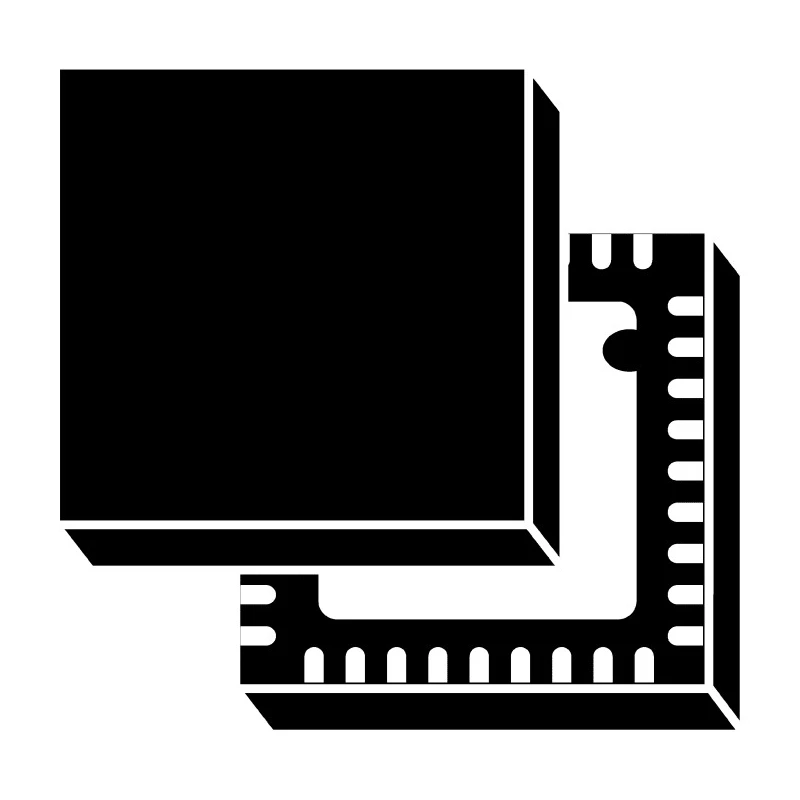

STMicroelectronics 32 bit ARM Cortex M3 Microcontroller STM32F103TBU6, STM32F1 Series, 72 MHz, 128kB FLASH, 36-Pin VFQFPN
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 6.13mm |
| Model | STM32F103TBU6 |
| Width | 6.12mm |
| Mount Type | Surface |
| Series | STM32F1 |
| Maximum Operating Temperature | 85°C |
| Package Type | VFQFPN |
| Minimum Operating Temperature | -40°C |
| Ram size | 20kB |
| Standards/Approvals | FBI |
| Pin Count | 36 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | ARM Cortex M3 |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 72MHz |
| Number of Timers | 7 |
| Instruction Set Architecture | MCU |
| ADCs | 10 x 12 Bit |
| Program Memory Type | FLASH |
| Temperature ranges | -40 to +85 °C or -40 to +105 °C |
Key Features
- Operates at a maximum clock frequency of 72 MHz for efficient processing.
- Contains 128kB flash program memory and 20kB RAM for complex programs.
- Features an ARM Cortex M3 core with a 32-bit data bus for robust performance.
- Supports a voltage supply range from 2V minimum to 3.6V maximum.
- Includes 10 ADCs with 12-bit resolution for accurate analog to digital conversion.
- Equipped with 7 timers suitable for varied timing applications.
- Compact VFQFPN package with dimensions 6.13mm length, 6.12mm width, and 1mm height.
- Operates reliably in a temperature range of -40°C to 85°C, suitable for industrial environments.
Product Description
STMicroelectronics STM32F103TBU6 is a 32-bit ARM Cortex M3 microcontroller from the STM32F1 series designed for embedded applications requiring high performance and low power consumption. Operating at a clock speed of 72 MHz, this microcontroller features 128kB of FLASH memory and 20kB of RAM, providing ample space for complex firmware development.
The device comes in a compact 36-Pin VFQFPN surface mount package measuring 6.13 mm in length, 6.12 mm in width, and 1 mm in height, suitable for space-constrained applications.
This microcontroller supports a wide operating voltage range from 2V to 3.6V and operates stably in harsh environments with temperature tolerance from -40 °C to +85 °C, making it ideal for industrial, automotive, HVAC, and motor control applications.
Additional features include 7 timers facilitating precise timing control and 10 ADC channels with 12-bit resolution for high-accuracy analog input measurement. The ARM Cortex M3 core architecture combined with the STM32 platform offers excellent real-time performance, power efficiency, and compatibility with a broad ecosystem of development tools.
Efficient 32-bit ARM Cortex M3 core running at 72 MHz. 128kB flash memory with EEPROM emulation and 20kB SRAM. Multiple timers for diverse timing functions. 10-channel 12-bit ADCs for analog signal processing. Compact VFQFPN surface mount package.
Robust operation at extended temperature ranges. Low power dissipation up to 1 watt. Ideal for embedded control in automotive and industrial systems.
This microcontroller is a versatile solution for developers designing robust embedded systems, offering a balanced combination of performance, size, and power efficiency. Its broad functionality supports applications in motor control, gaming peripherals, HVAC systems, and more specialized industrial controls.
Explore the STMicroelectronics STM32F103TBU6 and other STM32 Microcontrollers at EnvMart for your next project requiring advanced embedded processing power and flexibility.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F103TBU6 operates at a maximum clock frequency of 72 MHz.
It features 128kB of FLASH program memory.
This model includes 20kB of RAM.
It supports a voltage supply range from 2V to 3.6V.
The package measures 6.13 mm in length, 6.12 mm in width, and 1 mm in height.
It operates reliably in a temperature range of -40°C to 85°C.
It is equipped with 10 ADCs, each with 12-bit resolution.
This model includes 7 timers suitable for varied timing applications.
This microcontroller has a pin count of 36.
The maximum power dissipation is up to 1 watt.
It belongs to the STM32F1 series of microcontrollers.
It features an ARM Cortex M3 core architecture.
