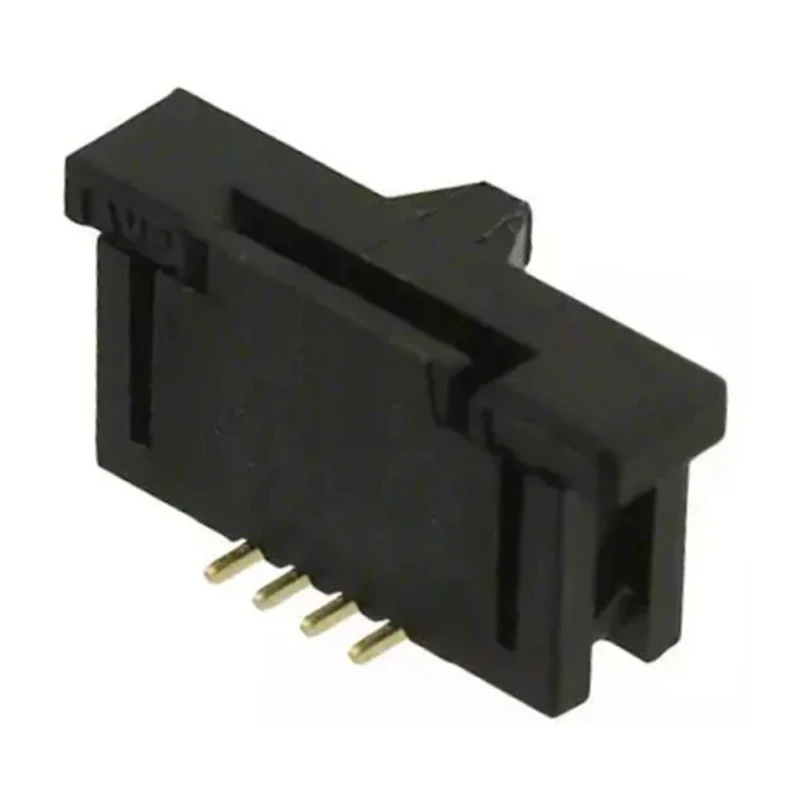

TE Connectivity FPC 1 mm Pitch 4 Way Straight Female FPC Connector Solder 1734248-4

TE Connectivity 1734248-4 FPC Connector is a 1 mm pitch, 4-way straight female connector designed for solder termination with a Zero Insertion Force (ZIF) actuator for secure connections. It features a compact design ideal for routing signals in devices where standard wire-to-board connectors are too large.

The connector uses phosphor bronze contacts with gold plating to ensure reliable and corrosion-resistant electrical connections, suitable for demanding industrial, medical, and business equipment applications.

Its surface mount design with top contact position and slide lock actuator enables easy cable insertion without additional tooling, providing secure mating connections and improved retention in high-vibration environments. The polyamide housing adds mechanical durability and thermal stability.

Operating specifications include a current rating of 1A with a voltage rating of 125V DC, suitable for a broad range of low-power electronics applications. The operating temperature range from -20°C to 85°C allows use in various environmental conditions.

This connector is widely used in handheld scanners, set-top boxes, PCs and peripherals, business equipment, industrial devices, and medical instruments. Non-ZIF variants are more suited to static applications where insertion cycles are limited.

Compact 1.0 mm pitch design suitable for space-constrained applications. Features 4 female contacts made of phosphor bronze with gold plating for reliable connectivity. Surface mount type with top contact position and slide lock actuator for secure cable insertion.

Supports a maximum current of 1A and voltage rating of 125V DC. Operating temperature range from -20°C to 85°C, suitable for industrial and medical equipment. Connector housing made of durable polyamide material. Zero Insertion Force (ZIF) mechanism reduces wear and ensures high mating cycle reliability.

Gold-plated contacts provide corrosion resistance and enhanced signal integrity. Includes solder tabs for extra retention on the PCB. Explore the extensive range of TE Connectivity connectors and other electronic components on EnvMart for industrial, communication, and consumer electronics applications.
